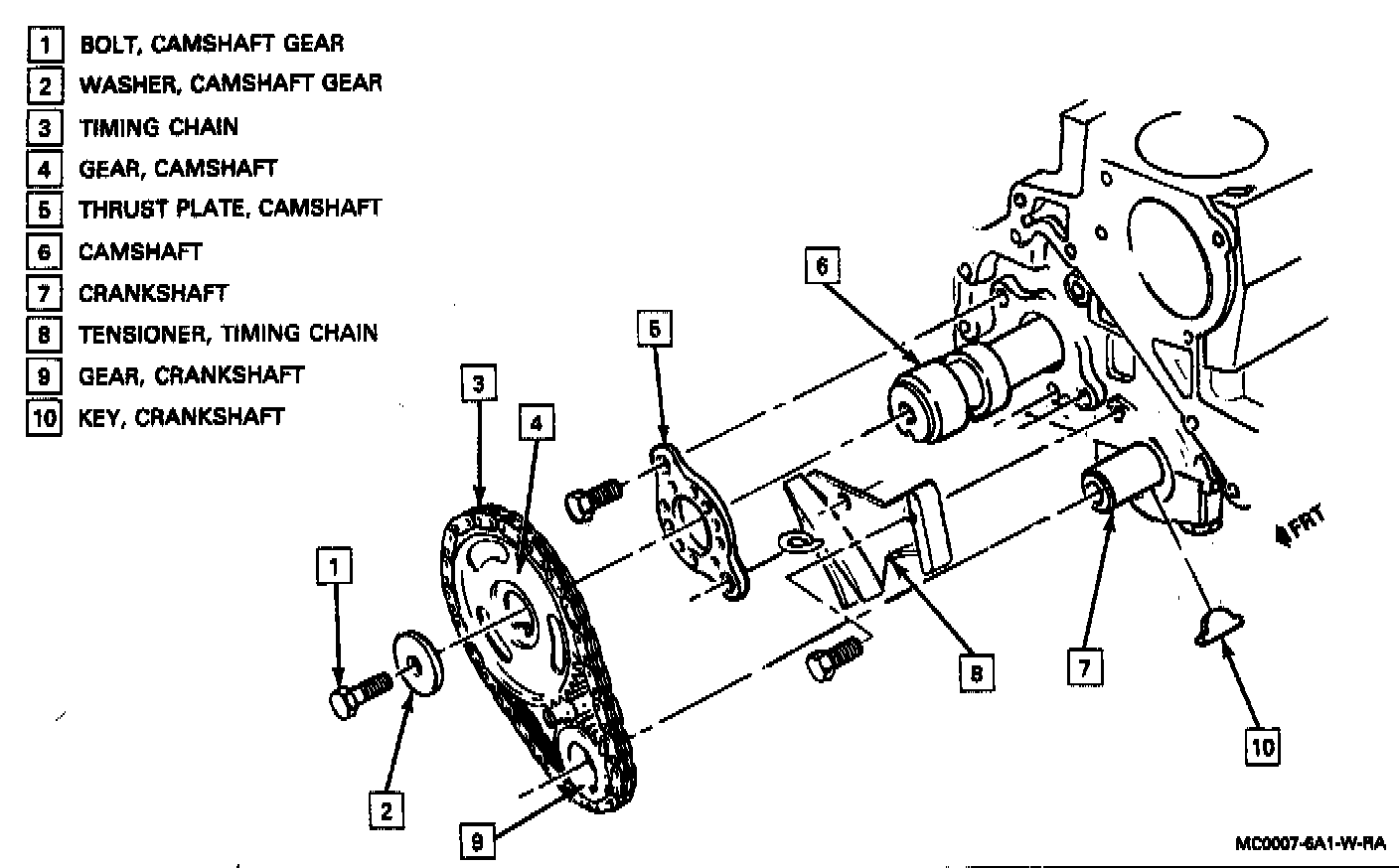

Timing Chain Tensioner: Service and Repair

Remove or Disconnect
1. Timing chain and sprockets.
2. Timing chain tensioner bolt.
3. Timing chain tensioner.

Install or Connect
1. Timing chain tensioner.
2. Timing chain tensioner bolt.

Tighten
^ Bolt to 25 N.m (18 lb. ft.).

3. Relock tensioner blade with pin.
4. Timing chain and sprockets.
5. Remove tensioner lock pin.
