Home >> Chevrolet >> 1992 >> Lumina L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> RS Electronic Center >> Part 2 of 4

Part 2 of 4

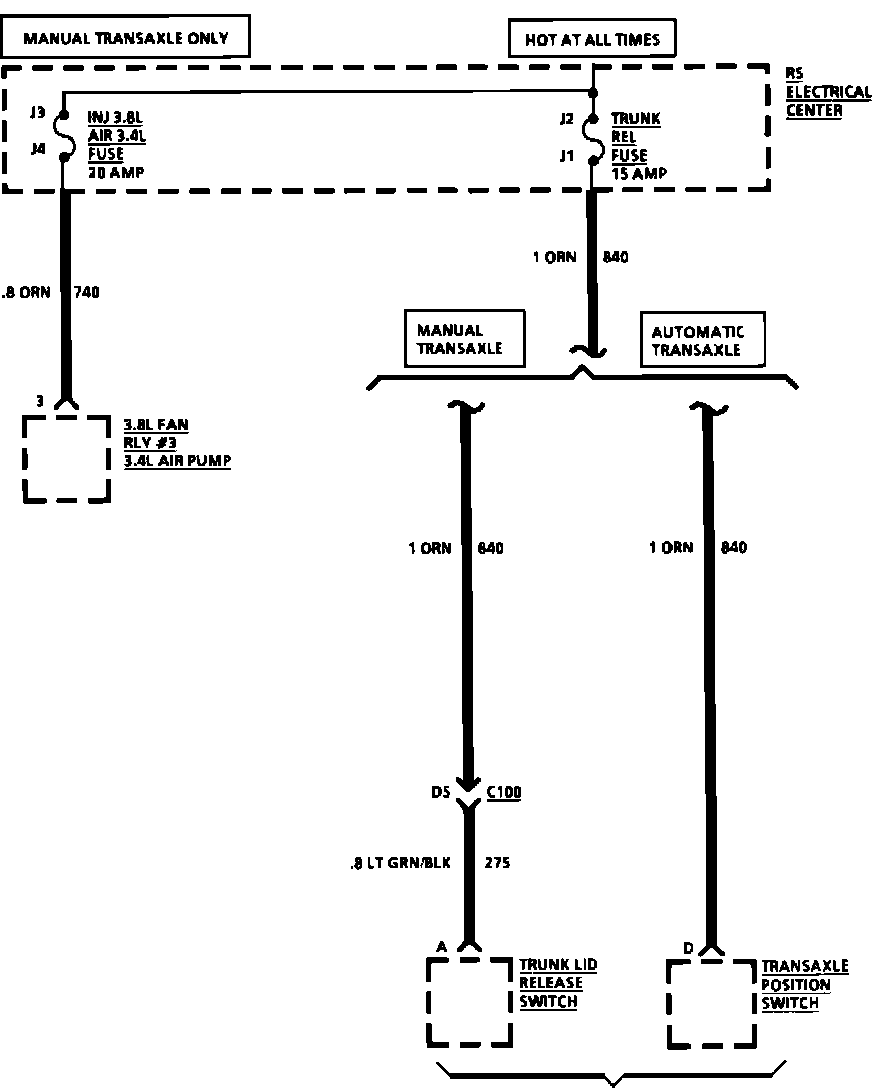

Fuse Block Details: RS Electrical Center:
