Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Without Amplifier
Without Amplifier

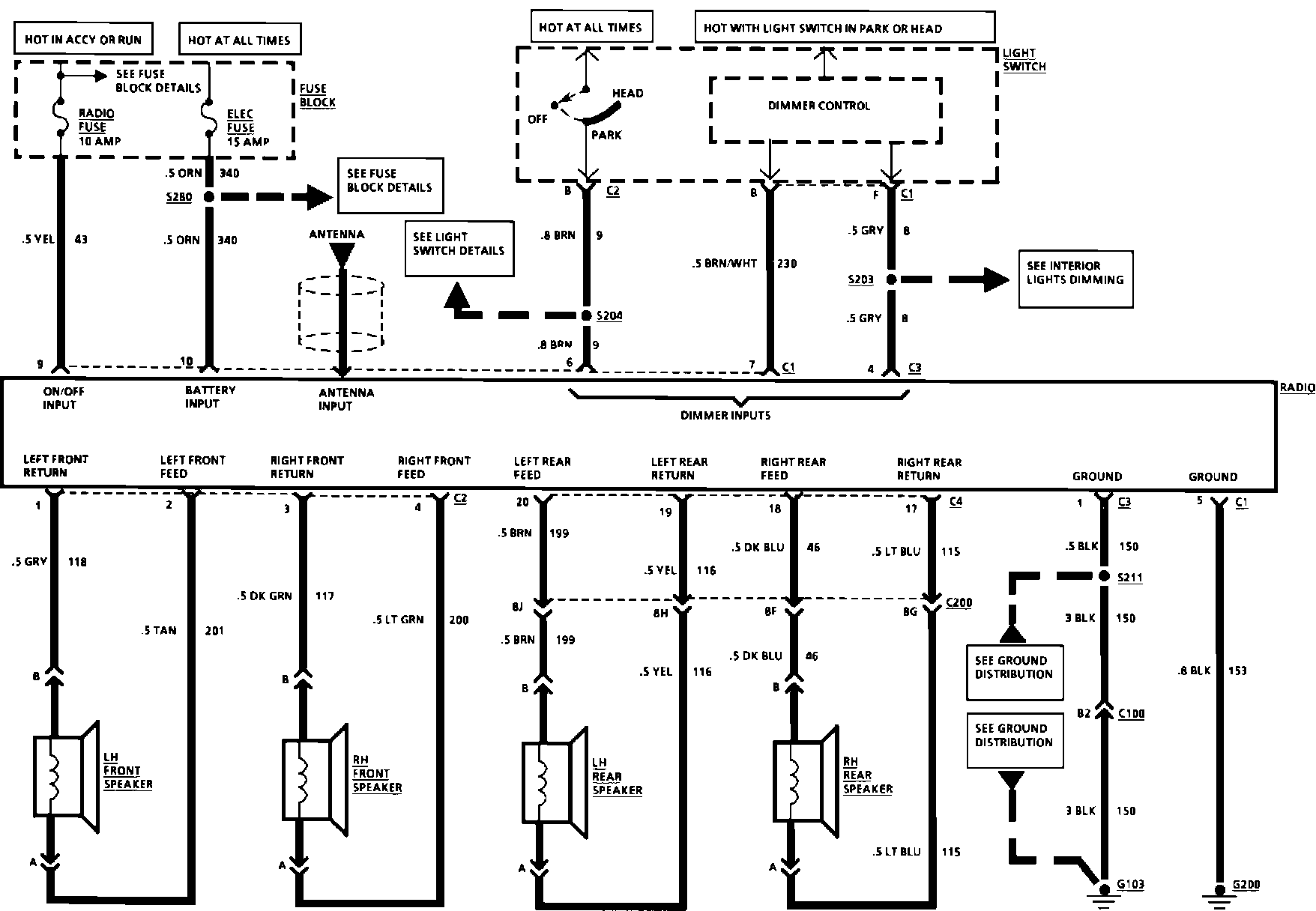

Radio: Without Amplifier:
