Home >> Chevrolet >> 1992 >> Lumina L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram >> With A/C

With A/C

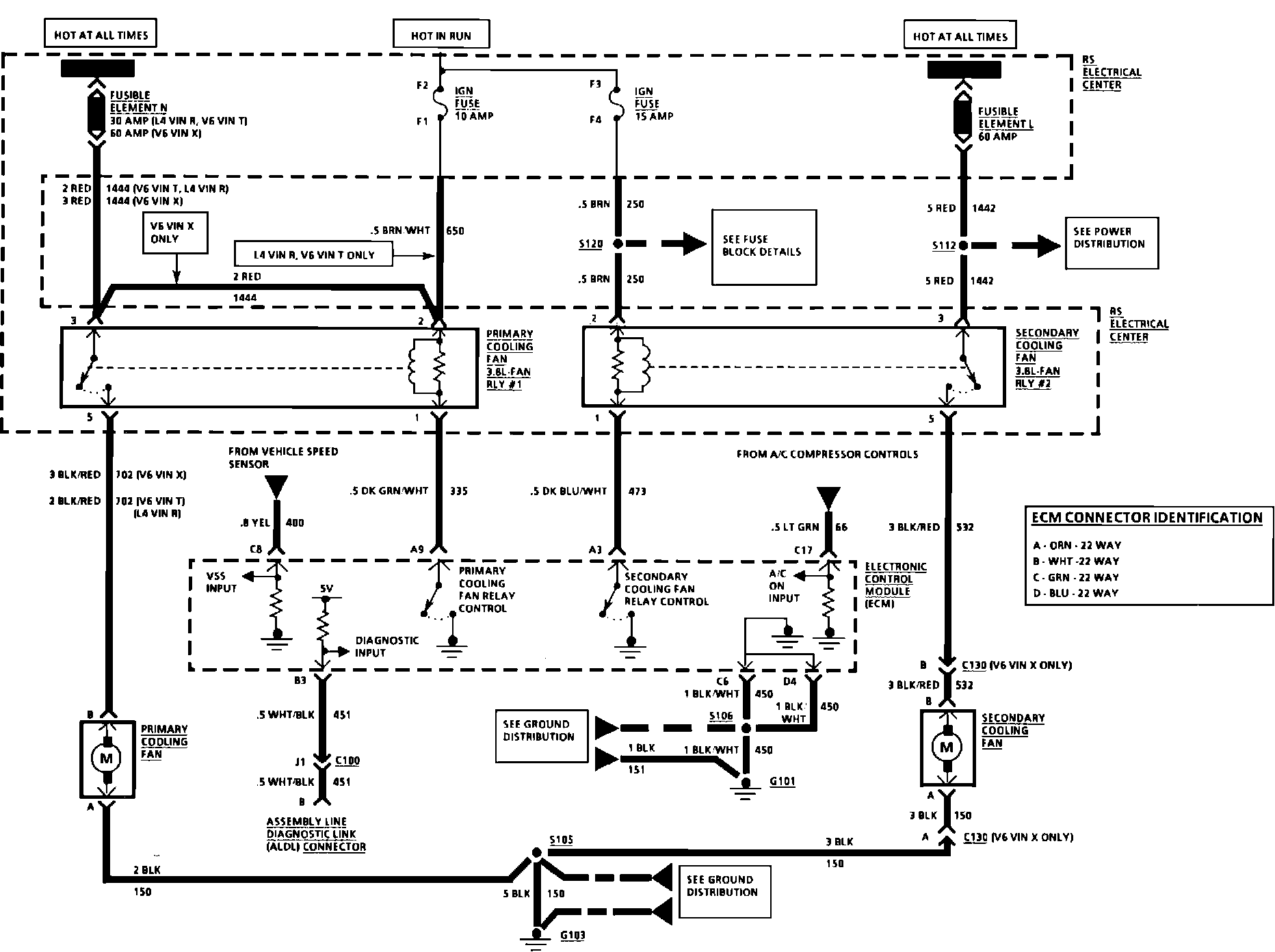

Coolant Fan Wiring Circuit (Part 1 Of 2). w/A/C:

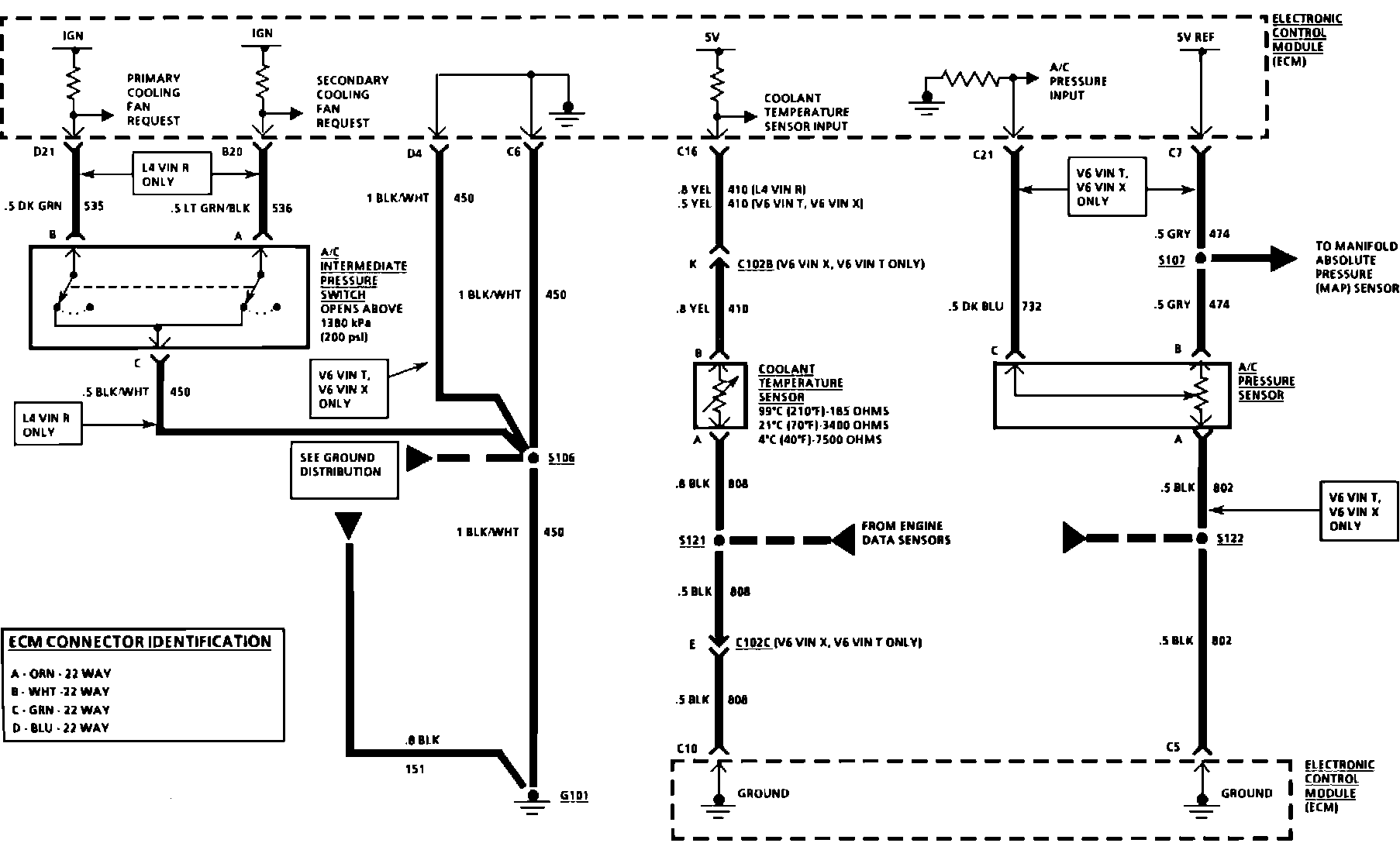

Coolant Fan Wiring Circuit (Part 2 Of 2). w/A/C:
