Cooling System
>>
Radiator Cooling Fan Motor
>>
With Air Conditioning
With Air Conditioning

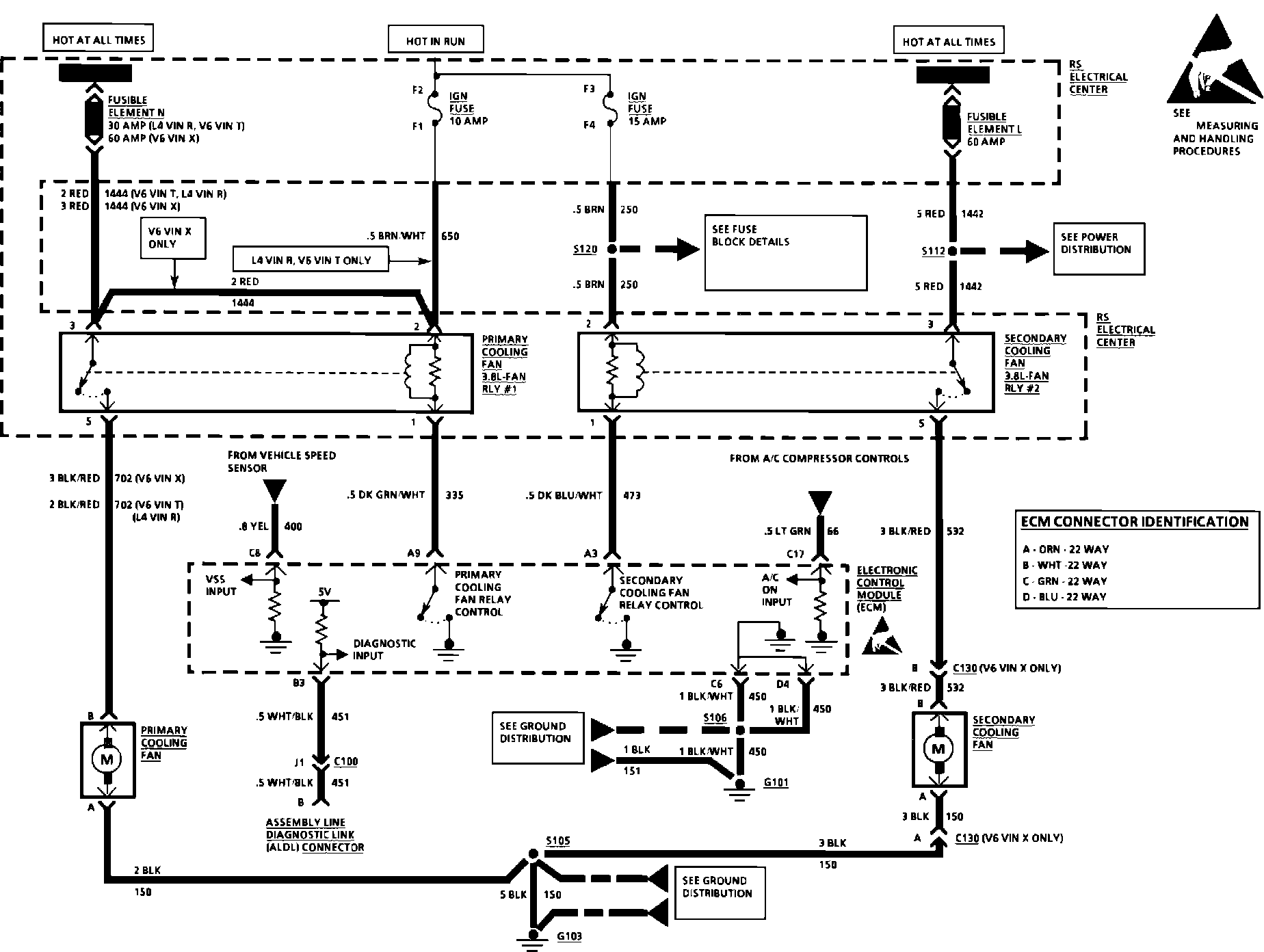

Coolant Fans: With Air Conditioning:

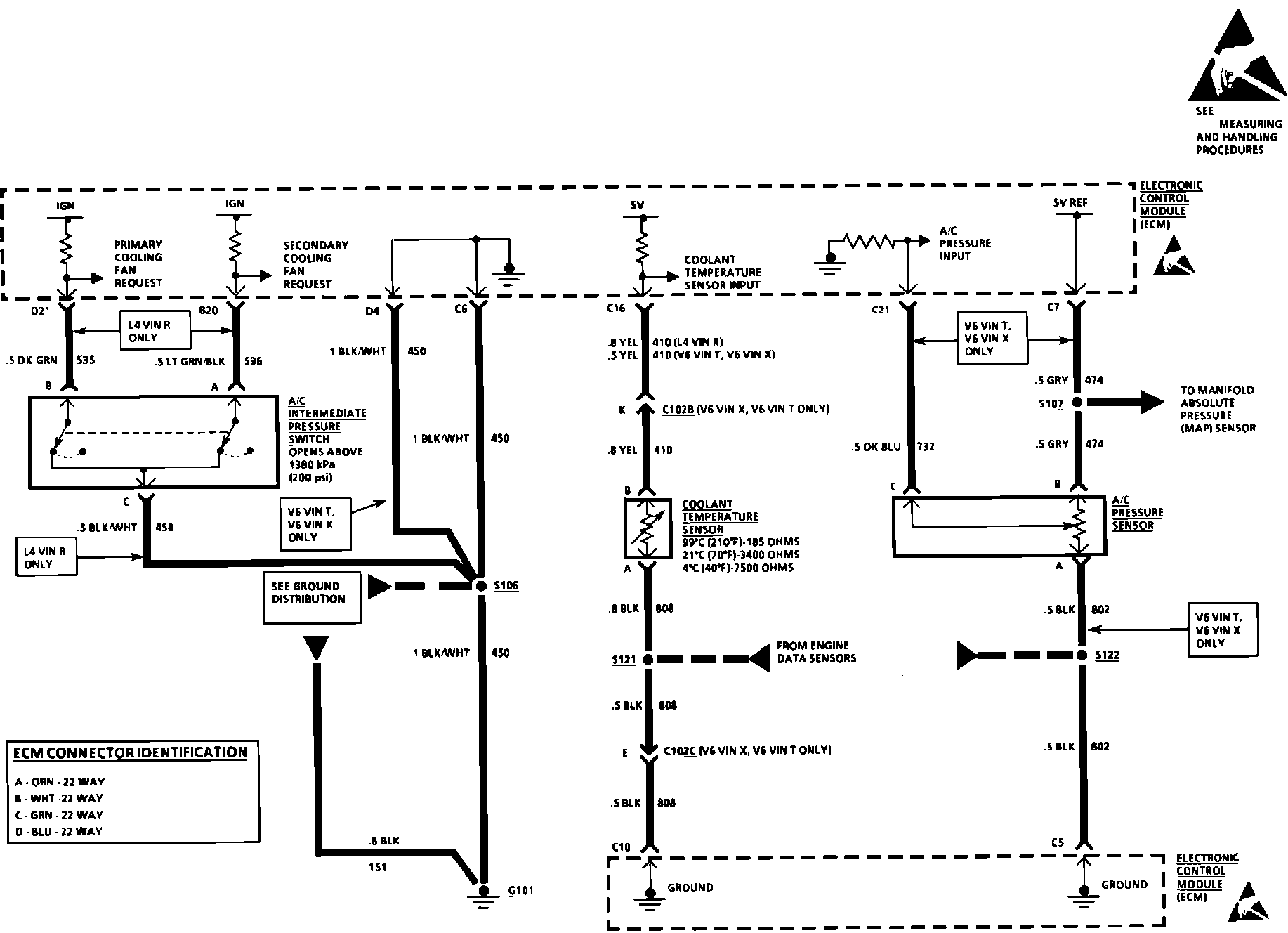

Coolant Fans: With Air Conditioning:
