Power Window Switch
Power Window Switch

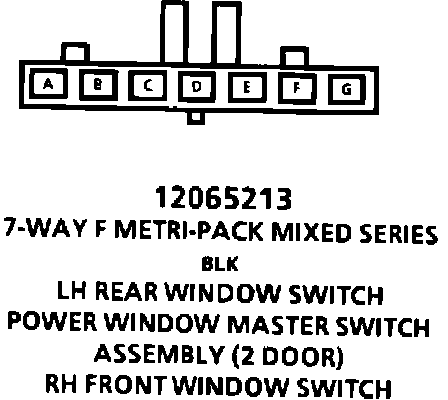

Window Switch Connector Face:

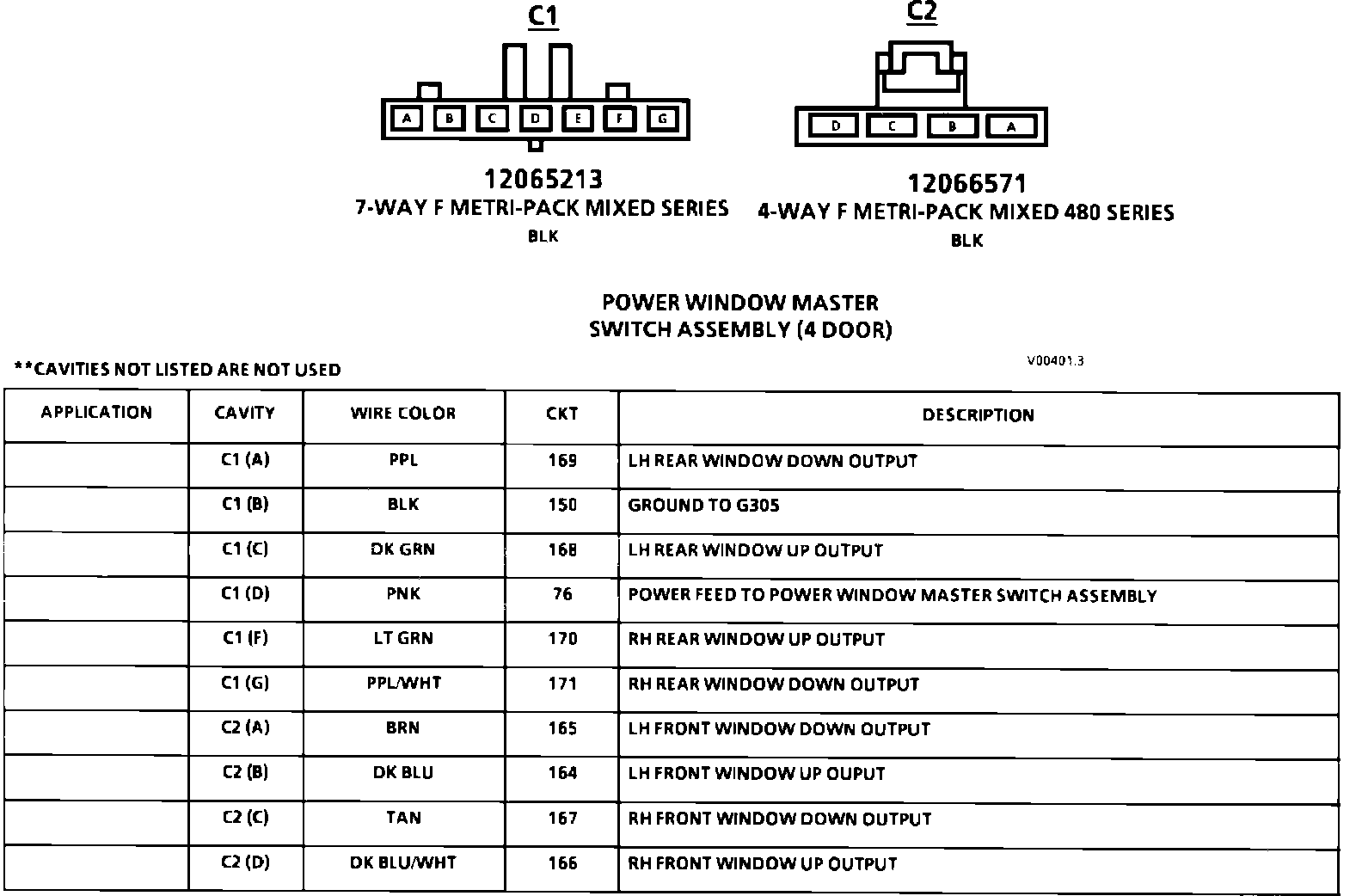

Power Window Master Switch Assembly Connector Face:
