Home
>>
Chevrolet
>>
1992
>>
Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C100-C199
>>

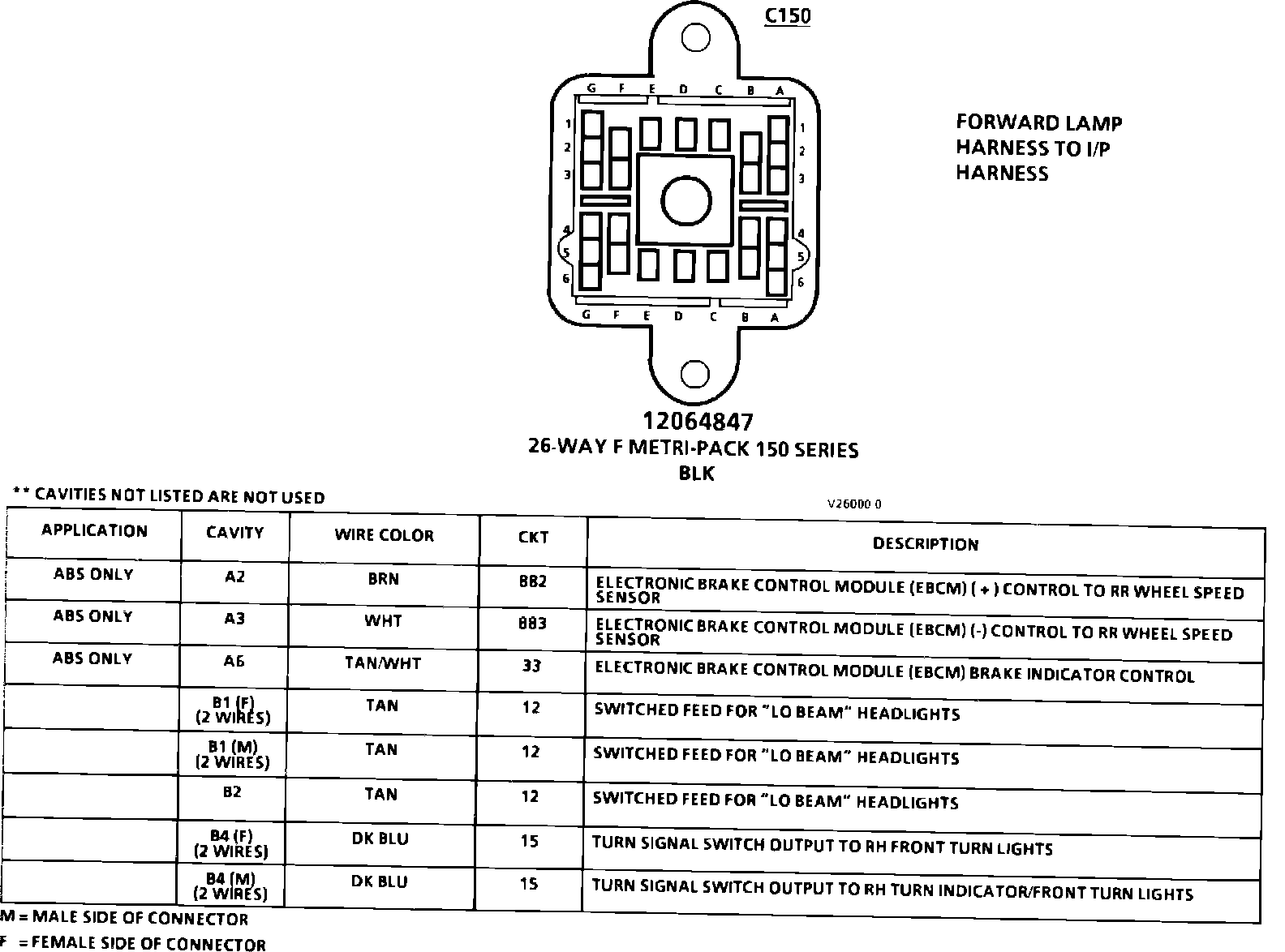

C150
C150

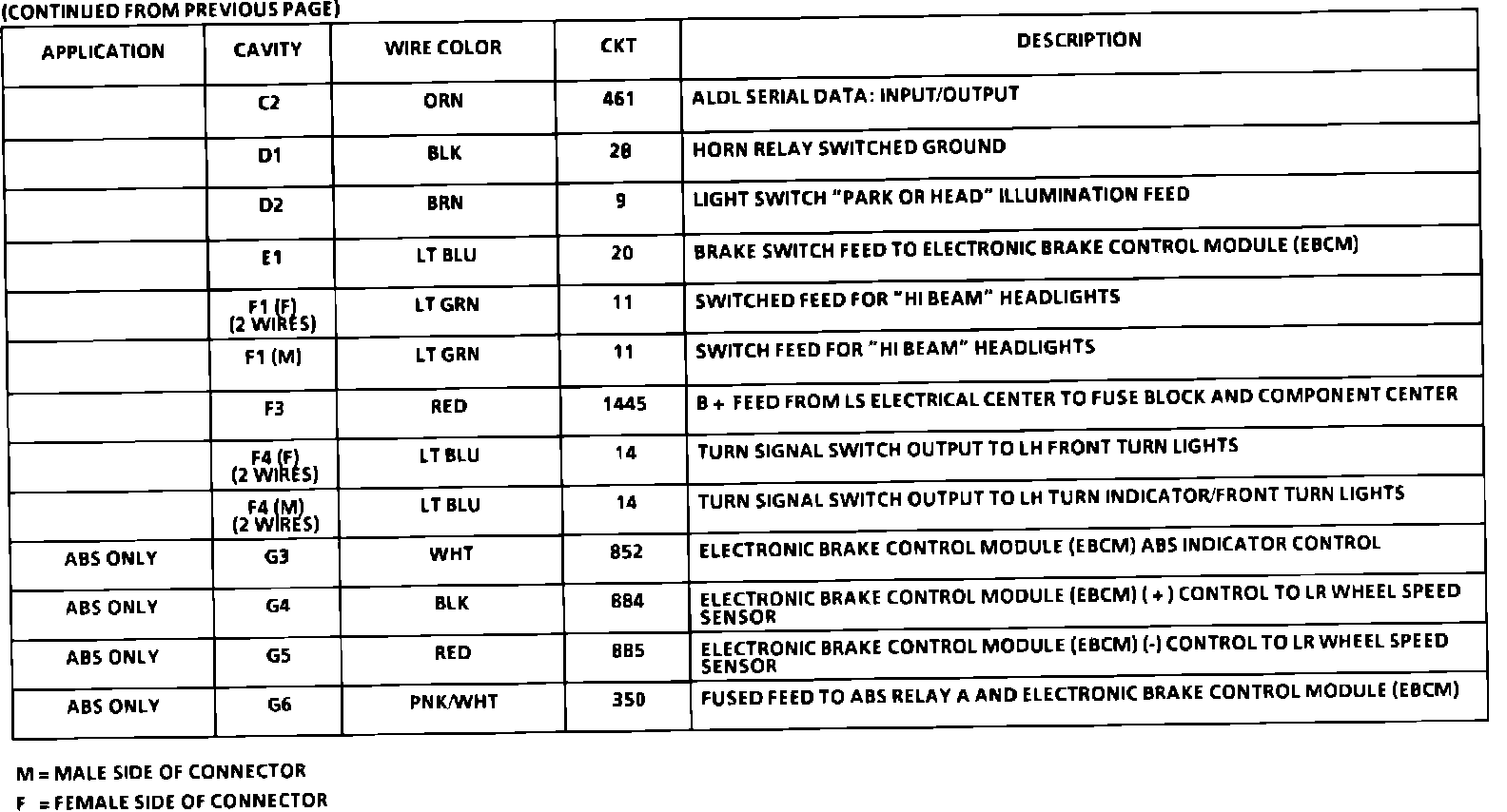

C150 Connector Face:
C150 Connector Face:
