Home >> Chevrolet >> 1992 >> Cavalier/Z24 V6-191 3.1L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Diagnostic Charts >> Front >> With Pulse >> Test E: Wiper Motor Assembly Current Draw Test

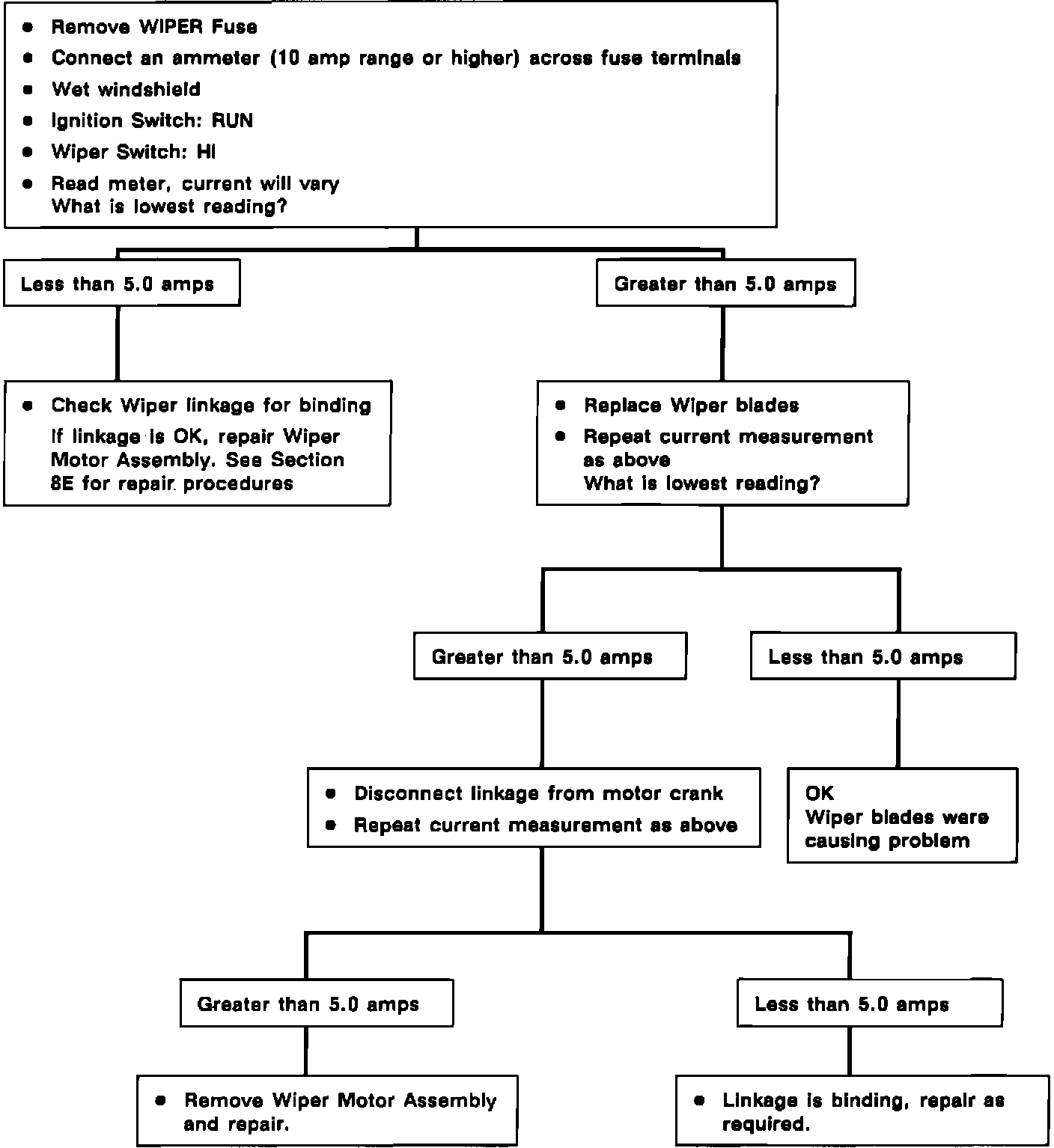

Test E: Wiper Motor Assembly Current Draw Test

Test E: Wiper Motor Assembly Current Draw Test:
