Seats (Bucket) - Creak On Sharp Turns
Number: 92-269A-10Section: 10
Date: DEC. 1992
Corporate Bulletin No.: 231006R
ASE No.: B1
Subject:
FRONT BUCKET SEAT (WHITE VINYL ONLY) CREAK CONDITION DUE TO SPACE BETWEEN PIVOT PIN AND BUSHING
Model and Year:
1992 CAVALIER WITH AR9 OPTION (CONVERTIBLE ONLY)
THIS BULLETIN CANCELS AND SUPERSEDES DEALER SERVICE BULLETIN NO. 92-269-10, DATED AUGUST 1992. THE CAUSE AND CORRECTION HAVE BEEN REVISED. ALL COPIES OF 92-269-10 SHOULD BE DISCARDED.
APPLICATION:
All 1992 Chevrolet "J" series equipped with white vinyl bucket seats.
CONDITION:
Some owners of 1992 "J" cars with AR9 bucket front seats may comment that when making a sharp right or left turn, a creaking noise from the driver seat, and front passenger seat (when occupied) occurs.
CAUSE:
Excessive space between the inner front seatback pivot pin and the pivot bushing.
CORRECTION:

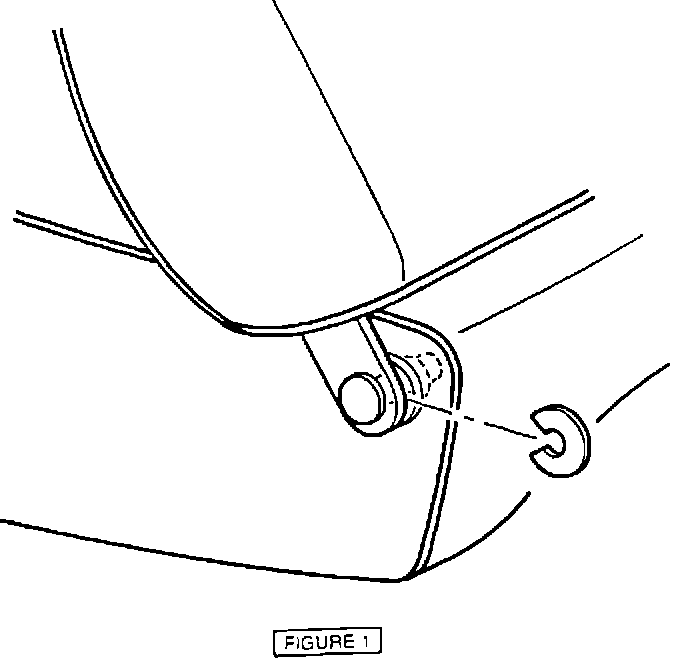

1. Put seatback in its most forward position. (Figure 1)
2. From rear of seat, install spacer GM P/N 16743252 on pivot pin.
PART AVAILABILITY:
Parts are currently available from GMSPO.
LABOR OPERATION: T-1818
LABOR TIME: 0.2 Hours
