Lights - Inoperative Trunk Lamp

9227chevy01

Number:
92-122-8A

Section:
8A

Date:
FEB. 1992

Corporate Bulletin No.:
231015

ASE No.:
A6



Subject:
INOPERATIVE REAR COMPARTMENT LAMP


Model and Year:
1992 CAVALIER SEDAN


CONDITION:
Owners of some 1992 J sedan models built prior to the following VIN breakpoint, may comment on an inoperative rear compartment lamp.

N7157215

CAUSE:

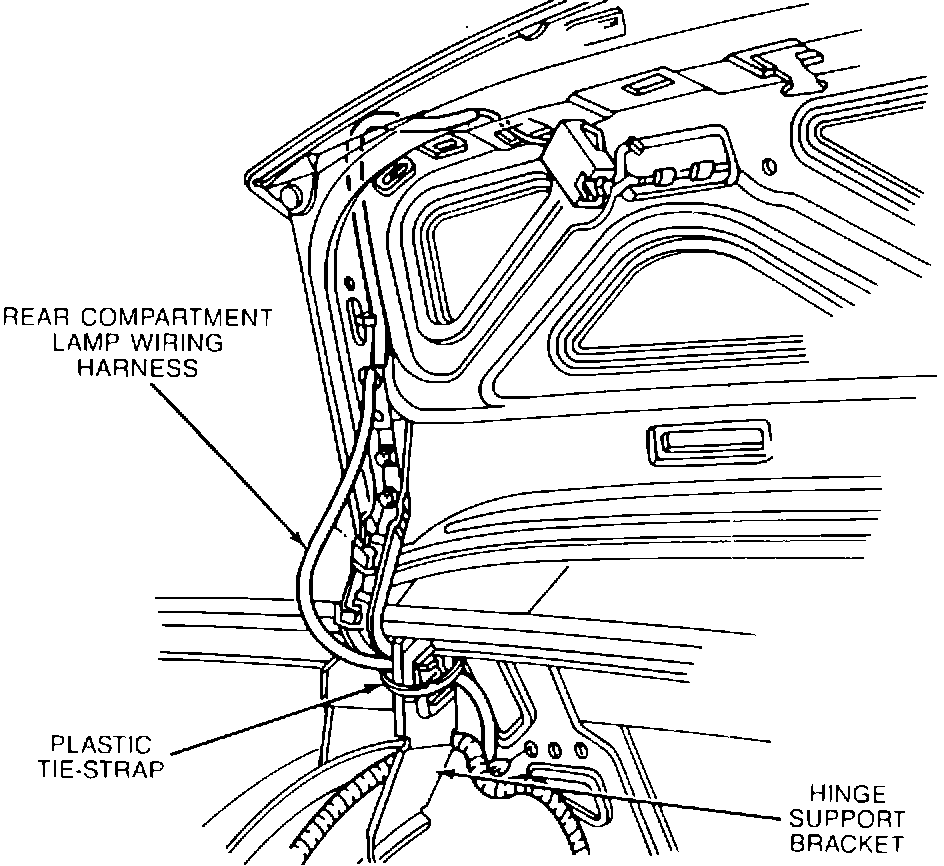

A plastic tie-strap was used to retain the excess rear compartment lamp wire to within the rear compartment by securing the lamp wiring conduit to the rear compartment lid hinge support bracket. The installation of this tie-strap subjected the wire to excessive bending, causing the orange wire to break inside the conduit and render the rear compartment lamp inoperative.





CORRECTION:
Remove the tie-strap from the rear compartment lid hinge support bracket and repair the rear compartment lamp wire following the electrical repair procedures in Section 8A of the Service Manual. Once the repair is made, reroute the rear compartment lamp wiring by placing the excess wire in the rear compartment lid above the hinge.

WARRANTY INFORMATION:

Use applicable Labor Operations and Times
