- With Tilt Column
UPPER AND LOWER COLUMN COVERS, TURN SIGNAL SWITCH, WASH/WIPE SWITCH AND IGNITION SWITCH ASSEMBLY.

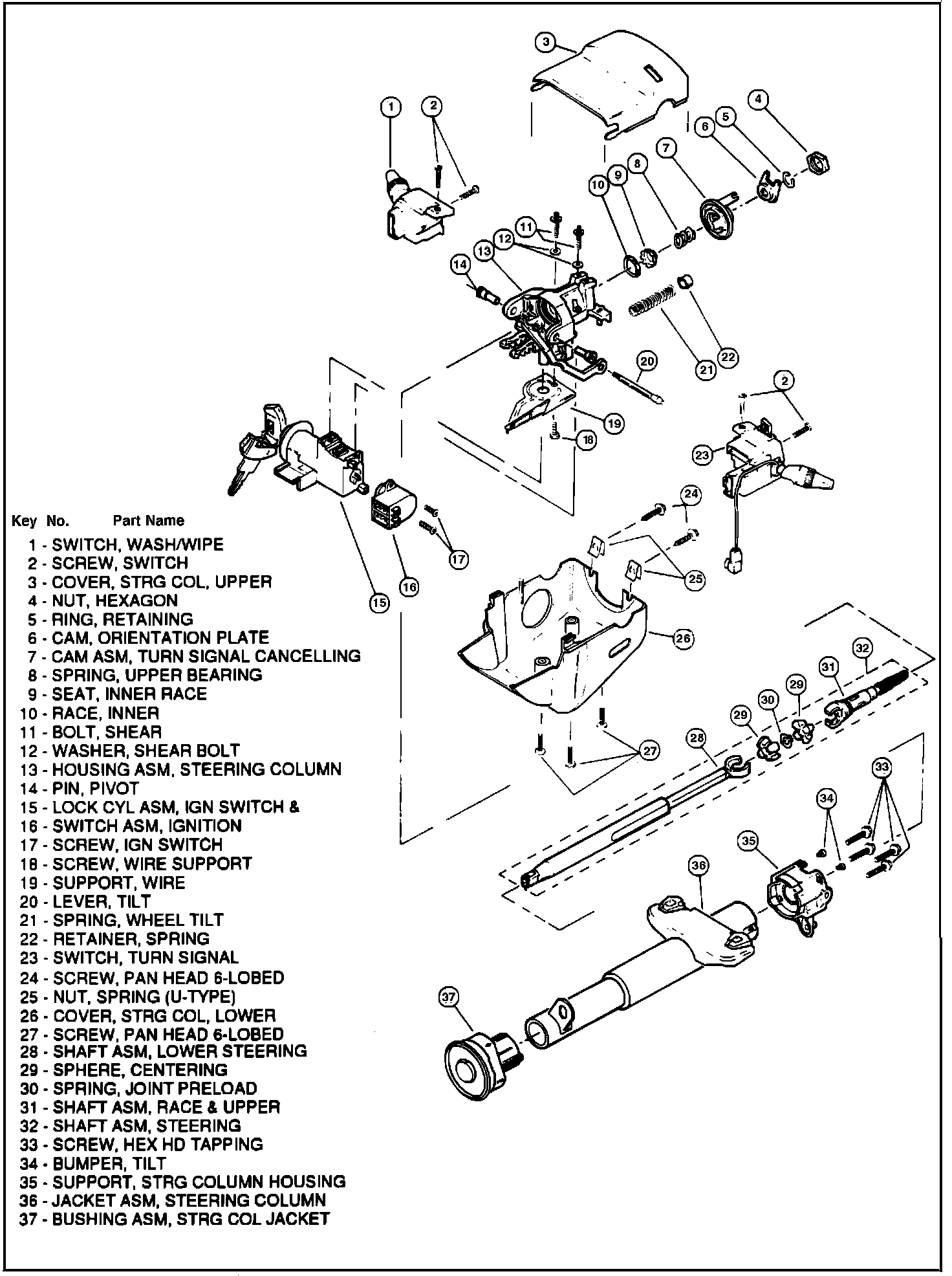

Figure 1 - Tilt Column Exploded View:
Figure 2 - Ignition Switch Connectors:
Remove or Disconnect
1. Steering wheel from column. Refer to COMPONENT REPLACEMENT AND REPAIR PROCEDURES/STEERING WHEEL.
2. Tilt lever (20) from column housing (13).
3. Cover screws (24).
4. Upper steering column cover (3).
5. Lower steering column cover screws (27) and lower steering column cover (26).
6. Separate rose bud fastener (integral to wire harness) from jacket assembly.
7. Switch mounting screws (2) and turn signal switch (23).
8. Switch (23) replacement only - proceed as follows:
^ Depress locking tab and remove two wire harness connectors from turn signal switch (23).
^ Depress locking tab and remove cruise connector from turn signal switch (23).
^ Connect new switch (23) in reverse order.
9. Switch mounting screws (2) and wash/wipe switch (1).
10. Switch (1) replacement only - proceed as follows:
^ Depress locking tab and remove wire harness connector from wash/wipe switch (1).
^ Connect new switch (1) in reverse order.
11. Depress locking tabs and remove two wire harness connectors from ignition switch (16).
12. Switch (16) replacement only - proceed as follows:
^ Remove ignition switch screws (17) and ignition switch (16) from lock cylinder assembly (15).
^ Connect ignition switch (16) to lock cylinder housing (15). Be sure tab on lock cylinder shaft aligns with slotted opening on ignition switch (16).
^ Install ignition switch retaining screws (17) and torque to 2.4 N-m. (21 lb.in.).
Install or Connect
1. Two wire harness connectors to ignition switch (16-figure 2).
2. Wash/wipe switch (1) with switch mounting screws (2) and torque to 5.5 N-m. (49 lb.in.).
3. Turn signal switch (23) with switch mounting screws (2) and torque to 5.5 N-m. (49 lb.in.).
4. Rose bud fastener (integral to wire harness) to jacket assembly.
5. Lower steering column cover (26) with screws (27) and torque to 5.5 N-m. (49 lb.in.).
6. Upper steering column cover (3) with screws (24) and torque to 5.5 N-m. (49 lb.in.).
7. Tilt lever (20) to column housing (13).
8. Steering wheel on upper steering shaft (31) with hexagon nut (4) and torque to 41 N-m. (30 lb.ft.).
STEERING COLUMN HOUSING, STEERING SHAFT ASSEMBLY, IGNITION SWITCH HOUSING ASSEMBLY AND JACKET BUSHING ASSEMBLY

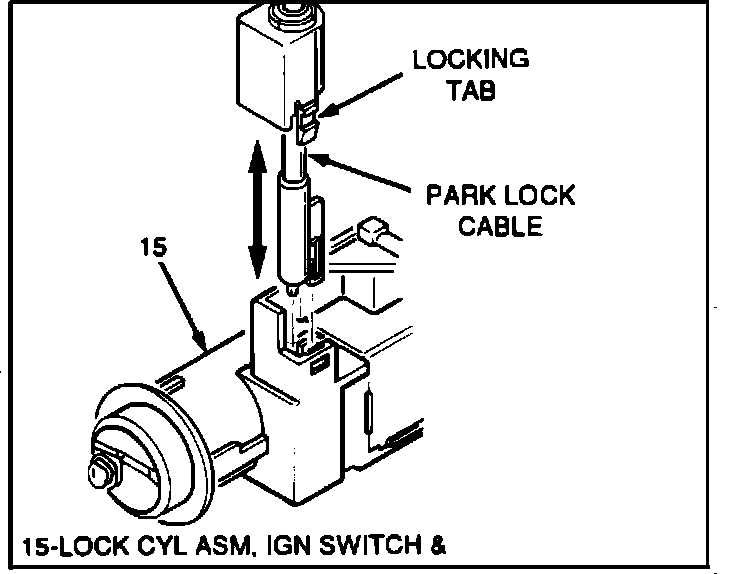

Figure 3 - Park Lock Cable:
Figure 4 Retaining Ring Removal And Installation:

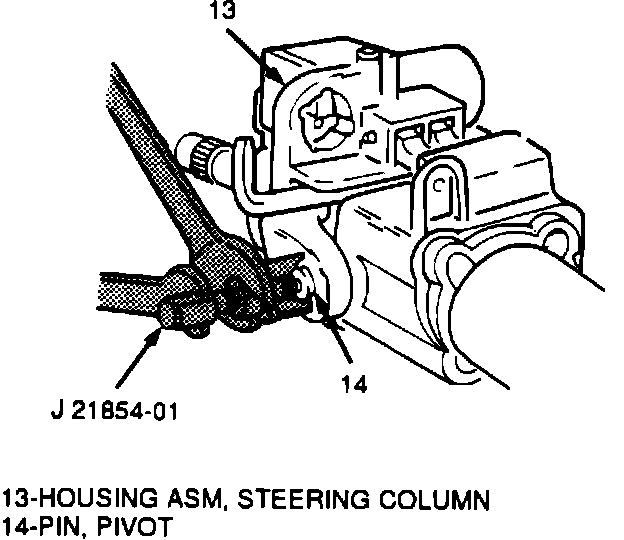

Figure 5 - Pivot Pin Removal:

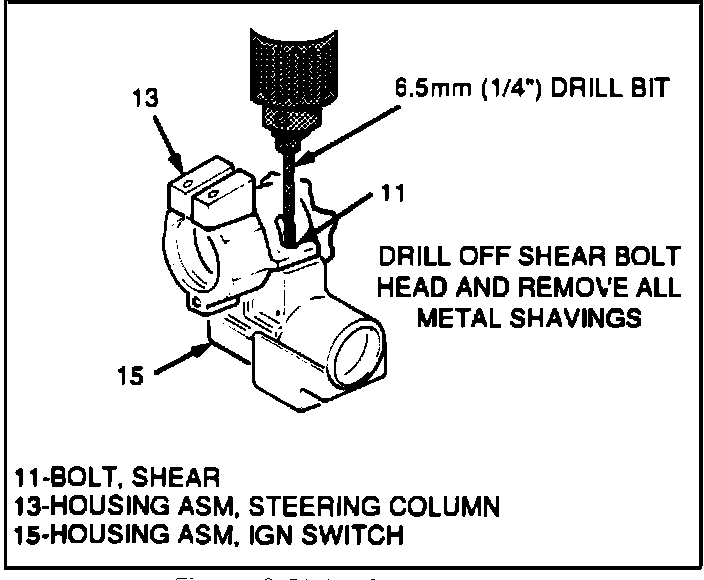

Figure 6 - Shear Bolt Removal:

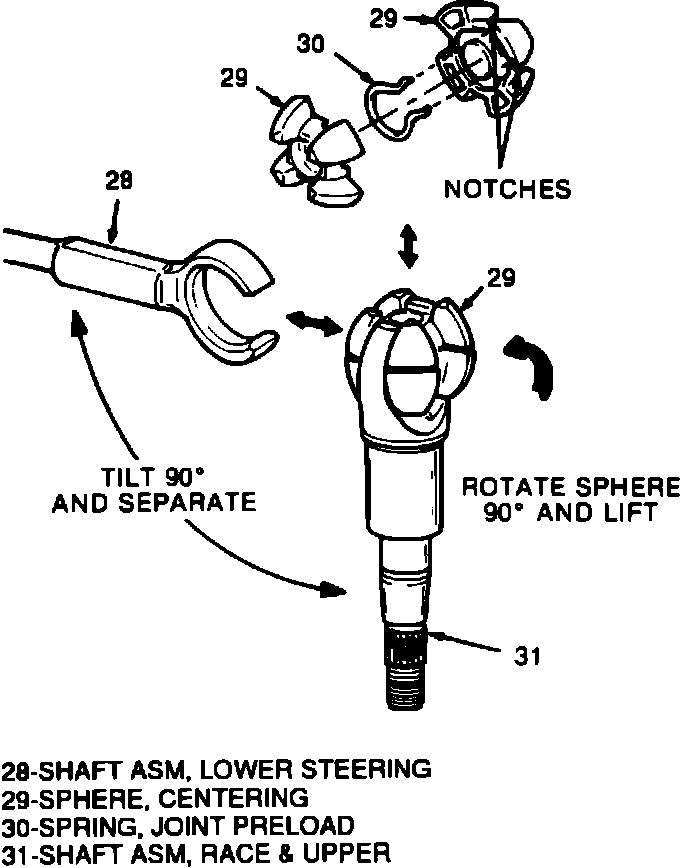

Figure 7 - Steering Shaft And Centering Sphere Alignment:

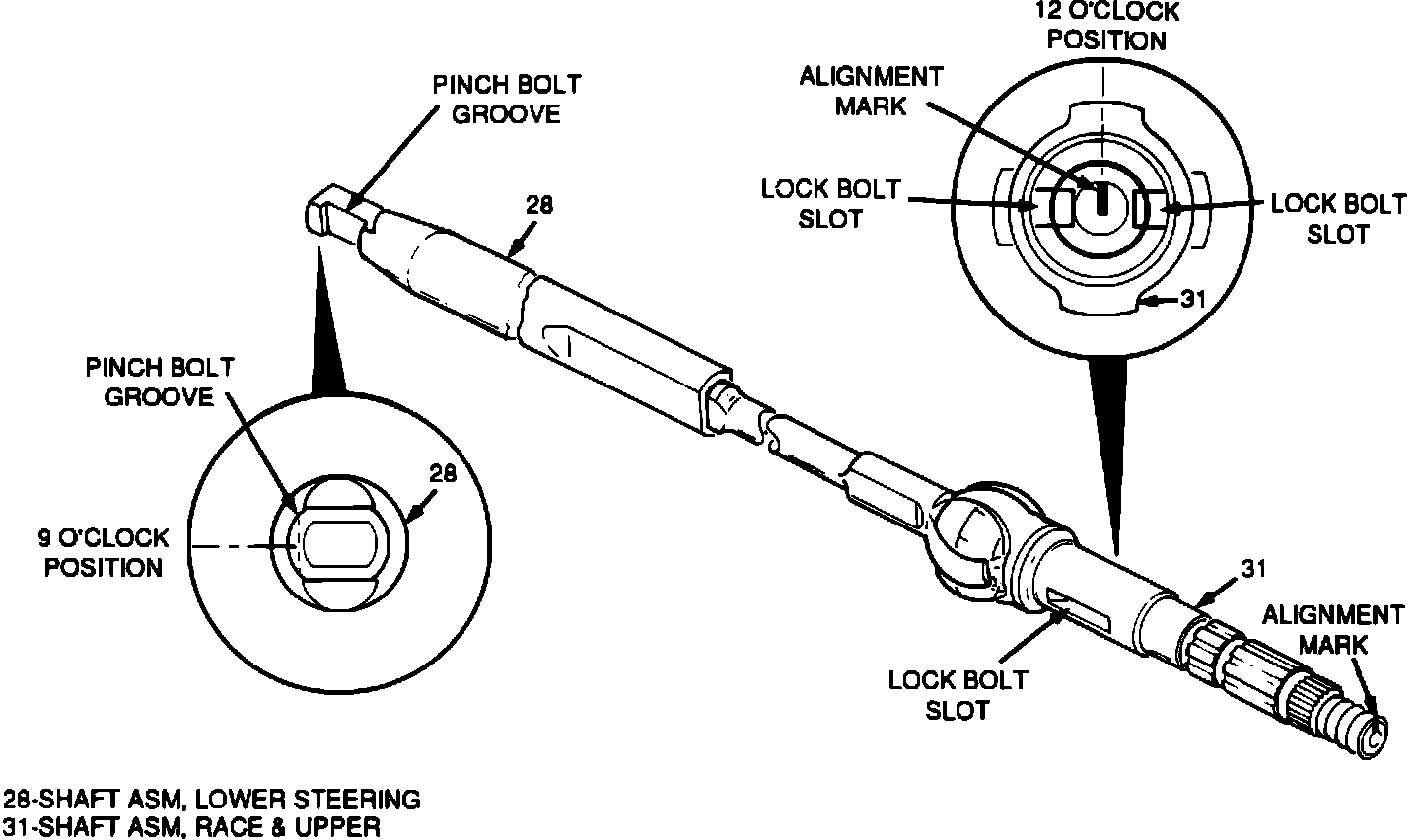

Figure 8 - Upper Shaft To Lower Shaft Orientation:
Tools Required:
J 23653-91 Lock Plate Adapter
J 23653-C Lock Plate Compressor J 21854-01 Pivot Pin Remover
Remove or Disconnect
1. Perform steps 1 through 5, Remove or Disconnect, in the previous section.
2. Park lock cable from ignition switch and lock cylinder assembly (15) by depressing locking tab with a small screwdriver. (See Figure 3).
3. Wire harness at bulkhead connector.
4. Steering column from vehicle. Refer to COMPONENT REPLACEMENT AND REPAIR PROCEDURES/STEERING WHEEL.
5. Steering column jacket bushing (37) from lower end of jacket assembly (36) if not removed previously.
6. Perform steps 6 through 12, Remove or Disconnect, in the previous section.
Important: Turn signal switch (23) must be removed before compressing cam plate (6) and upper bearing spring (8) to prevent damage to switch (8).
7. Compress cam plate (6) and upper bearing spring (8) with J 23653-91 and J 23653-C (See Figure 4).
8. Retaining ring (5), orientation plate cam (6), turn signal cancelling cam (7), upper bearing spring (8) inner race seat (9) and inner race (10).
9. Pull tilt lever bracket on column housing assembly (13) and tilt column all the way up.
10. Insert phillips head screwdriver into square opening in spring retainer (22), push down and turn left to release retainer (22) and wheel tilt spring (21).
11. Spring retainer (22) and tilt spring (21).
12. Two pivot pins (4) with J 21854-01 as shown.
13. Place lock cylinder in the "RUN" position.
14. Pull tilt lever to release column housing (13) and remove column housing (13) from housing support (35).
15. Wire support screw (18) and wire support (10)
16. Shear bolts (11), shear bolt washers (12) and lock cylinder housing (15) from column housing (13) as follows:
^ Drill off head of shear bolts (11) down to steel shear bolt washers (12) with a 6.5 mm (1/4") drill bit. (See Figure 6)
^ Separate washers (12) and lock cylinder housing (15) from column housing (13).
^ Remove threaded end of shear bolts (11) from ignition switch housing (15) with locking pliers.
Important: After drilling, clean all metal shavings from all parts.
17. Steering shaft assembly (32) from housing support (35).
18. Tilt bumpers (34) from housing support (35) with pliers.
19. Housing support screws (33) and housing support (35) from jacket assembly (36).
Disassemble
When necessary, the steering shaft assembly (32) may be serviced as follows:
Important: Prior to separation of upper shaft (31) and lower shaft (28) note relationship of upper shaft with alignment mark in threaded end at 12 o'clock position and lower shaft pinch bolt groove at 9 o'clock position. Refer to this orientation for proper reassembly.
1. Position upper shaft (31) 90~ to lower shaft (28) and separate. (See Figure 7)
2. Rotate centering sphere (29) 90~ and remove from upper shaft (3 1).
3. Separate sphere halves (29) and joint preload spring (30).
Assemble
1. Lubricate centering sphere halves (29) and joint preload spring (30) with lithium grease.
2. Spring (30) between sphere halves (29) with ends of spring in notches (See Figure 7).
3. Lubricate sphere end of upper shaft (31) with lithium grease.
4. Sphere (29) into upper shaft (31) and rotate sphere 90~.
5. Lubricate sphere end of lower shaft (28) with lithium grease.
Important: To insure proper operation, align upper shaft (31) and lower shaft (28) as follows:
^ Place alignment notch on threaded end of upper shaft (31) at 12 o'clock position.
^ Pinch bolt groove near end of lower shaft (28) must be at 9 o'clock position. (See Figure 8)
6. Position upper shaft (31) 90~ to lower shaft (28), engage and straighten. (See Figure 7)
Install or Connect
Important: Firmly seat all fasteners in the following steps before tightening them to the specified torque.
1. Housing support (35) to jacket assembly (36) with support screws (33) and torque to 16 N-m (12 lb.ft.).
2. Tilt bumpers (34) to housing support (35) and snap in place.
3. Steering shaft assembly (32) into support housing (35).
4. Lubricate both bearings in column housing (13) with lithium grease.
^ Column housing (13) onto shaft assembly (28) and housing support (35).
5. Lubricate pivot pins (14) with lithium grease.
^ Two pivot pins (14) until bottomed in housing (13).
Important: Stake pivot pins (14) to housing (13) after installation. Stake each pin at three equally spaced locations. If there is no surface suitable for restaking, housing (14) must be replaced.
6. Pull tilt lever on housing (13) and tilt column all the way up.
7. Lubricate tilt spring (21) with lithium grease.
8. Tilt spring (21) with spring retainer (22) as follows:
^ Be sure that spring (21) engages locating tab on support housing (35).
^ Insert Phillips head screwdriver into square opening in spring retainer (22), push down and turn right to lock in place.
9. Ignition switch housing (15) to column housing (13) with shear bolt washers (12) and shear bolts (11). Torque shear bolts (11) until bolt head separates (approximately 11 N-m).
10. Wire support (17) with wire support screws (18) and torque to 6 N-m (53 lb.in.).
11. Place lock cylinder in the "OFF-LOCK" position and remove key.
12. Rotate steering shaft assembly (32) until lock bolt engages and locks steering shaft in position.
13. Inner race (10), inner race seat (9), upper bearing spring (8), turn signal cancelling cam (7), and orientation plate cam (6).
14. Compress orientation plate cam (6) with J 23653- 91 and J 23653-C. (See Figure 4)
15. Retaining ring (5) in groove on upper shaft (3 1).
16. Steering column jacket bushing (37) over lower end of steering shaft (28), into lower end of jacket assembly (36).
17. Perform steps 1 through 4. Install or Connect, in the previous section.
18. Steering column in vehicle
19. Wire harness to bulkhead connector.
20. Park lock cable to ignition switch and lock cylinder assembly (15).
21. Perform steps 5 through 8, Install or Connect, in the previous section.
