Home >> Chevrolet >> 1992 >> Cavalier/Z24 V6-191 3.1L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Relay >> Testing and Inspection >> Table 2

Table 2

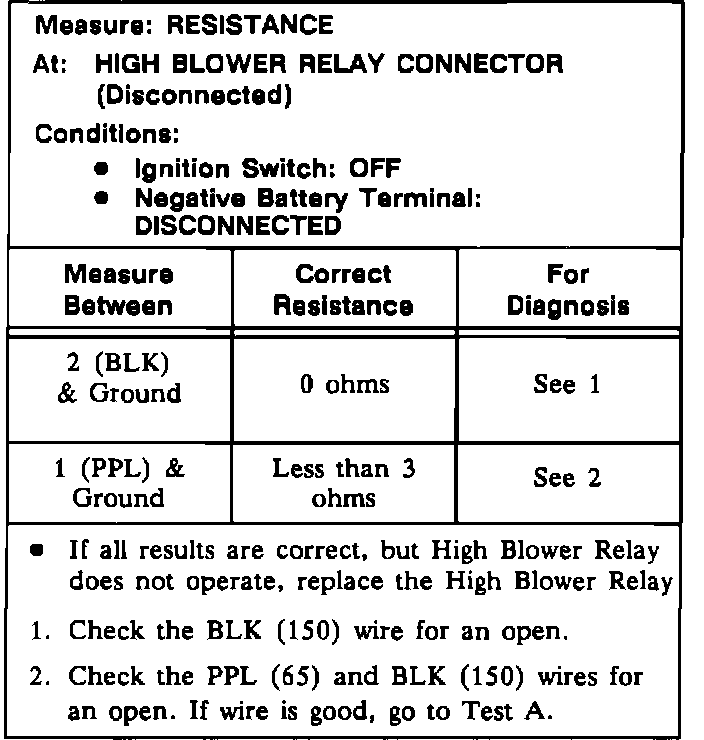

Test B: High Blower Relay Test (Table 2):
