Folding Top No. 4 Bow Link

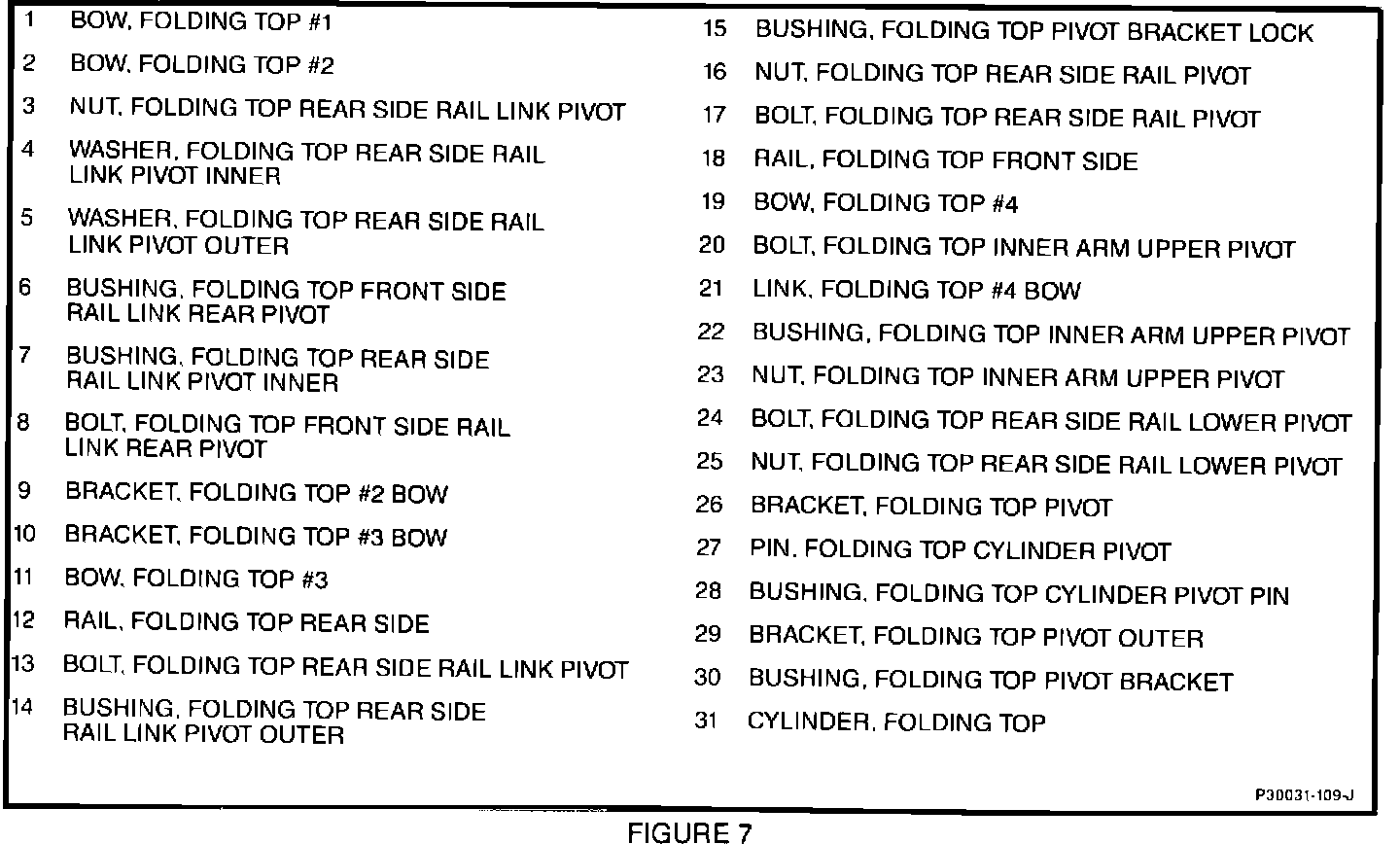

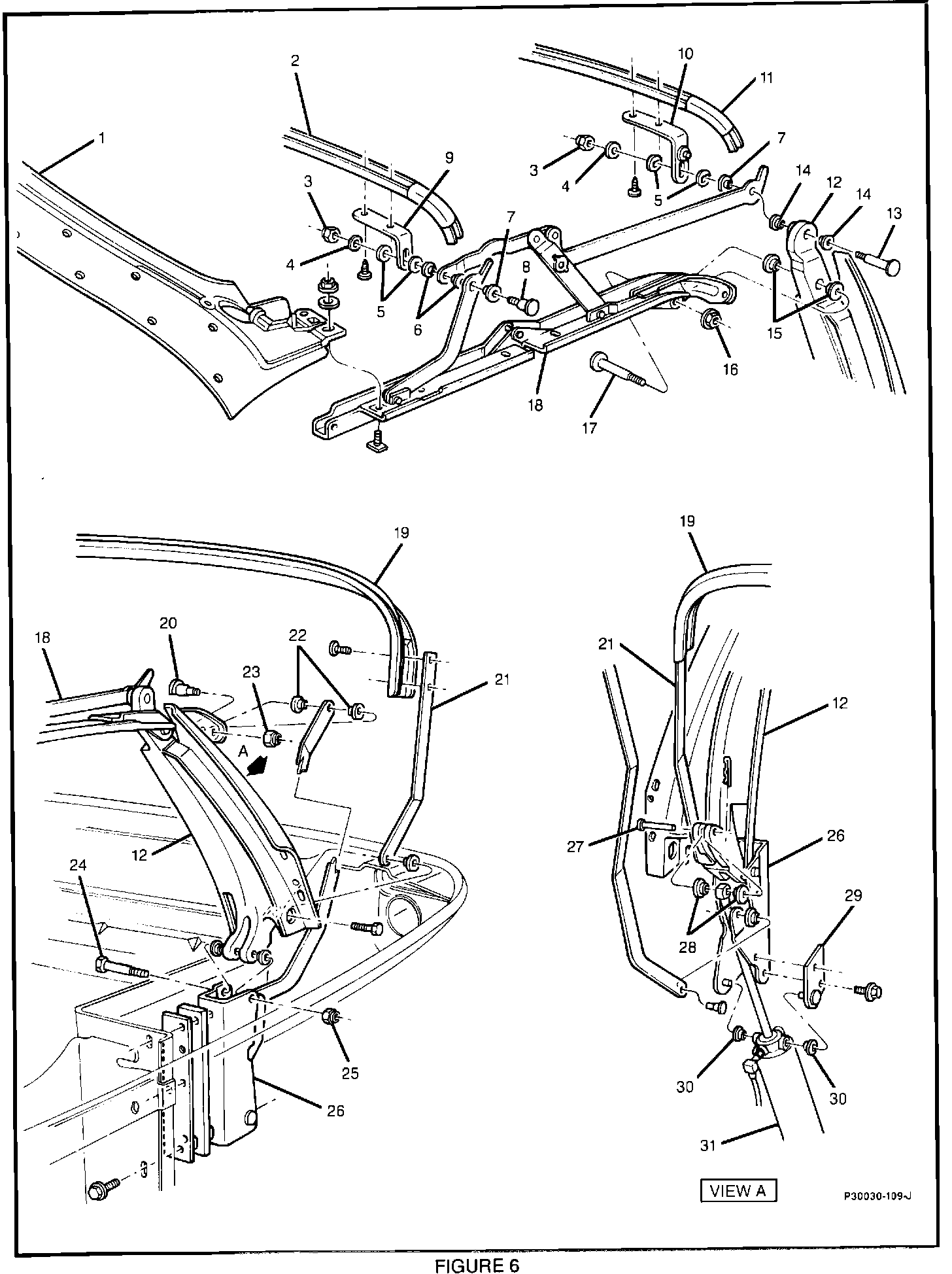

Figures 6 and 7

Remove or Disconnect
1. Screws securing No. 4 bow to folding top No. 4 bow link.
2. Bolt and bushing securing No. 4 bow link to rear side rail.

Install or Connect
1. Bushing to No. 4 bow link and position to rear side rail. Install bolt and tighten securely.
2. Position No. 4 bow link (with rear side rail attachment facing forward) to No. 4 bow. Install screws and tighten securely.
