Bottom Feed Port Fuel Injectors

NOTICE:
ALWAYS REMOVE THE FUEL PRESSURE REGULATOR TO DRAIN EXCESS FUEL AND TO PREVENT FUEL FROM ENTERING ENGINE CYLINDERS, WHEN INJECTORS ARE REMOVED FOR SERVICE. FLOODED CYLINDERS COULD RESULT IN ENGINE DAMAGE.

USE CARE IN REMOVING INJECTORS TO PREVENT DAMAGE TO THE ELECTRICAL CONNECTOR PINS ON THE INJECTOR, AND THE NOZZLE. THE FUEL INJECTOR IS SERVICED AS A COMPLETE ASSEMBLY ONLY. SINCE THIS IS AN ELECTRICAL COMPONENT, DO NOT SOAK IN CLEANER.

Remove or Disconnect
1. Relieve fuel system pressure.
* Refer to "Fuel System Pressure Relief Procedure."
2. Disconnect negative battery cable.
3. Upper Manifold Assembly.
* Refer to "Upper Manifold Assembly."

CAUTION:
TO REDUCE THE CHANCE OF PERSONAL INJURY, COVER REGULATOR AND FUEL LINE FITTINGS WITH A SHOP TOWEL BEFORE DISCONNECTING, TO CATCH ANY FUEL THAT MAY LEAK OUT. PLACE THE TOWEL IN AN APPROVED CONTAINER AFTER DISCONNECT IS COMPLETED.

4. Pressure regulator assembly
* Refer to "Pressure Regulator Assembly."

NOTICE:
TO PREVENT DAMAGE TO INJECTOR RETAINING BRACKET AND/OR INJECTORS, DO NOT TRY TO REMOVE INJECTORS BY LIFTING UP THE INJECTOR RETAINING BRACKET WHILE INJECTORS ARE STILL INSTALLED IN BRACKET SLOTS. DO NOT ATTEMPT TO REMOVE BRACKET WITHOUT FIRST REMOVING FUEL PRESSURE REGULATOR.

5. Injector retainer bracket attaching screws.
6. Injector retainer bracket.
* Carefully slide bracket off to clear injector slots and regulator.
7. Electrical injector connector(s).

CAUTION:
TO REDUCE THE RISK OF FIRE AND PERSONAL INJURY, VERIFY THAT THE LOWER (SMALL) O-RING OF EACH INJECTOR DOES NOT REMAIN IN THE LOWER MANIFOLD. IF THE O-RING IS NOT REMOVED WITH THE INJECTOR, THE REPLACEMENT INJECTOR, WITH THE NEW O-RINGS, WILL NOT SEAT PROPERLY IN THE INJECTOR SOCKET, AND COULD CAUSE A FUEL LEAK.

8. Fuel injector(s) Discard O-ring seals. Cover injector sockets to prevent dirt and other contaminants from entering open fuel passages.

IMPORTANT:
Each injector is calibrated for a specific flow rate. When replacing fuel injectors, order replacements with the identical part number as the old injectors.

Install or Connect
1. Lubricate new injector O-ring seals with clean engine oil, and install on injector assembly.
* See "CAUTION" statement above.
2. Bottom Feed Port injector assembly into lower manifold injector socket, with electrical connectors facing inward.
3. Injector retainer bracket.
* Carefully install bracket so that injector retaining slots and regulator are aligned with bracket slots.
4. Electrical injector connectors.
5. Pressure Regulator Assembly
* Refer to "Pressure Regulator Assembly."
6. Injector retainer bracket attaching screws. Use Loctite 262 or equivalent threadlocker. Tighten injector retainer bracket attaching screws to 3.5 N-m (31 lbs.in.).
7. Upper Manifold Assembly.
* Refer to "Upper Manifold Assembly."
8. Tighten fuel filler cap.

9. Negative battery terminal. Turn ignition switch to the "ON" position for two seconds, then turn to the "OFF" position for ten seconds. Again turn to the "ON" position, and check for fuel leaks.

CAUTION:
BE SURE THAT NONE OF THE ENGINE CYLINDERS HAS FILLED WITH GASOLINE DURING THE SERVICE PROCEDURE DUE TO LEAKAGE FROM THE FUEL SYSTEM INTO THE CYLINDER, AS THIS COULD DAMAGE THE ENGINE IF A STARTING ATTEMPT WERE MADE.

10. Air intake duct.

Use Applicable Labor Operation and Time

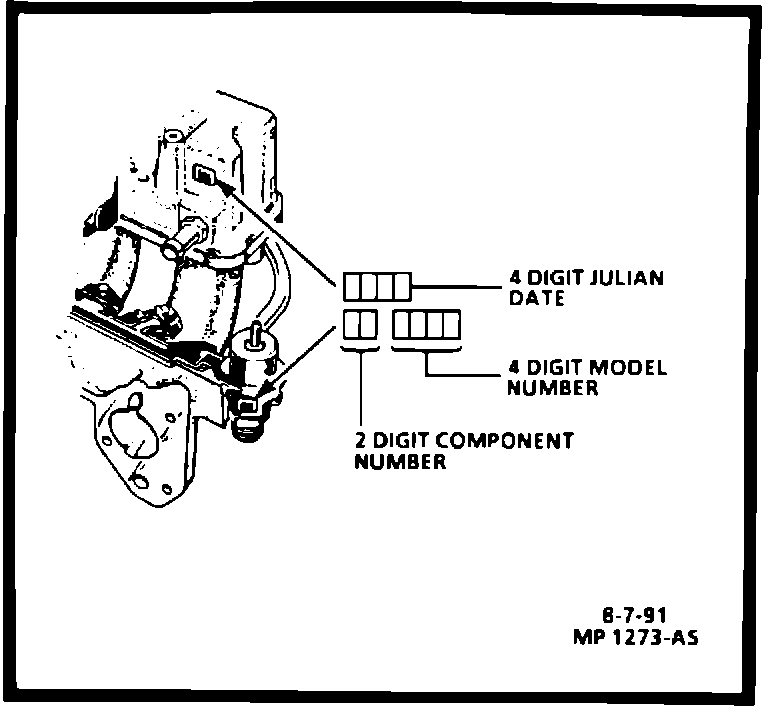

Julian Date

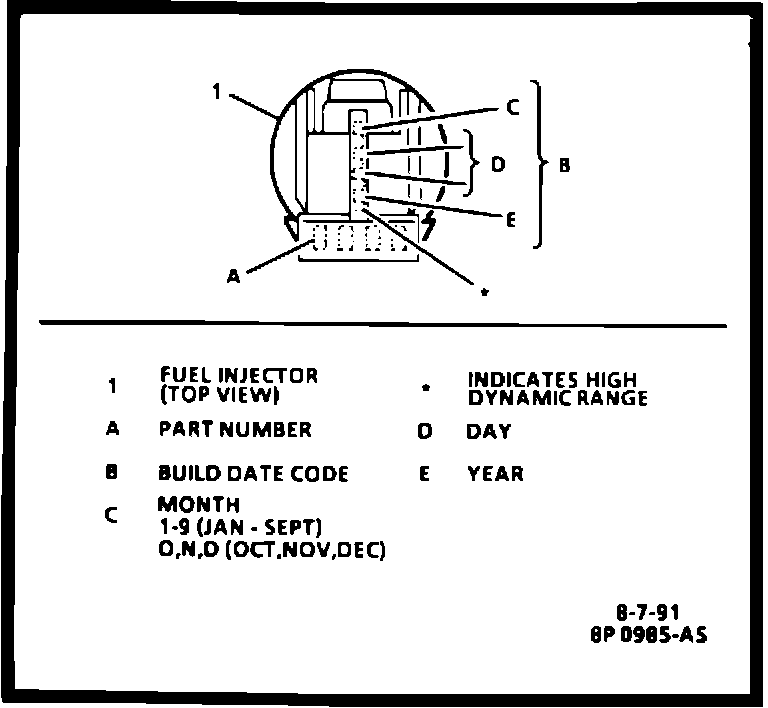

Fuel Injector Top View

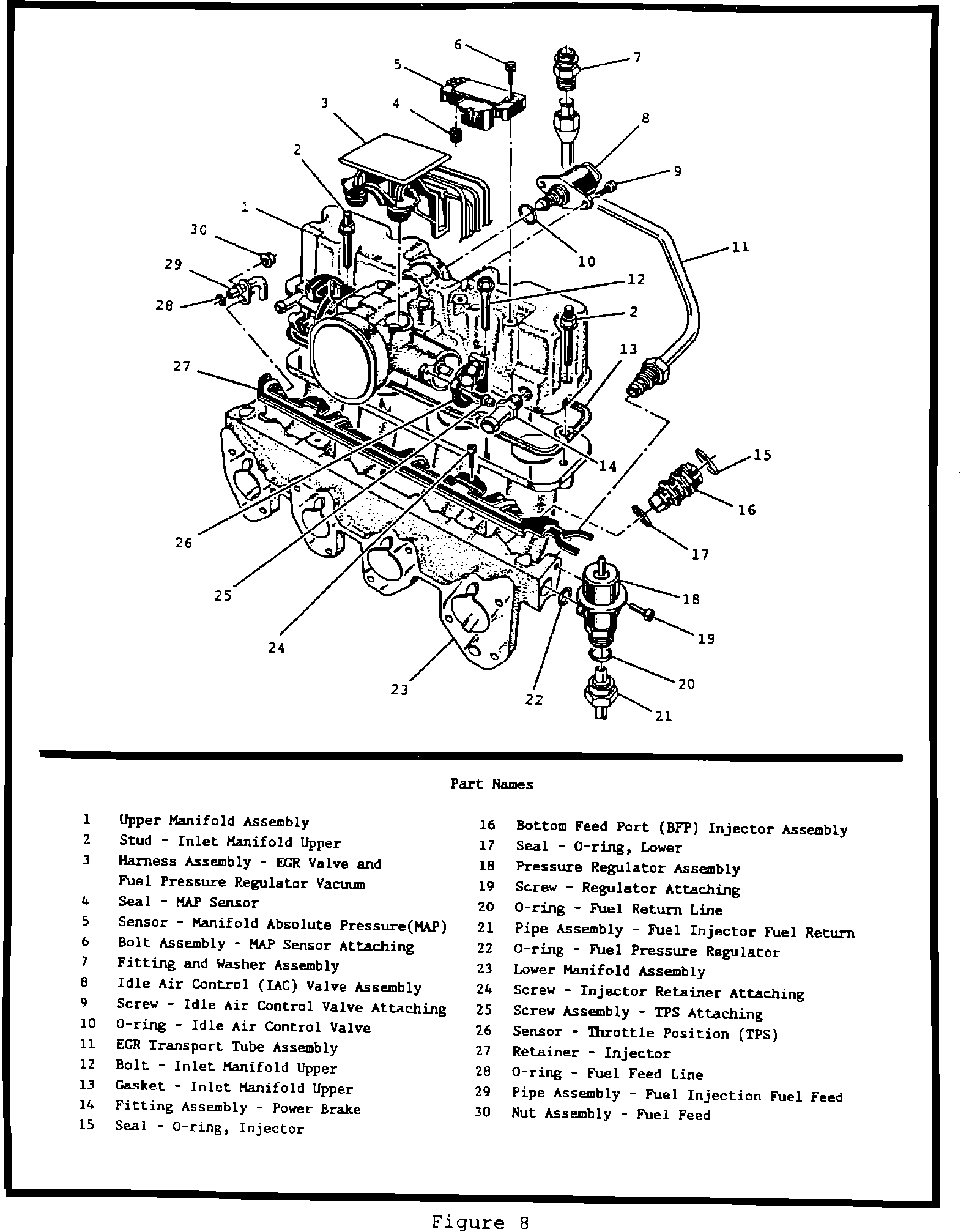

Part Names Exploded View
