Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Idle Speed Control & Vehicle Data Sensors
Idle Speed Control & Vehicle Data Sensors

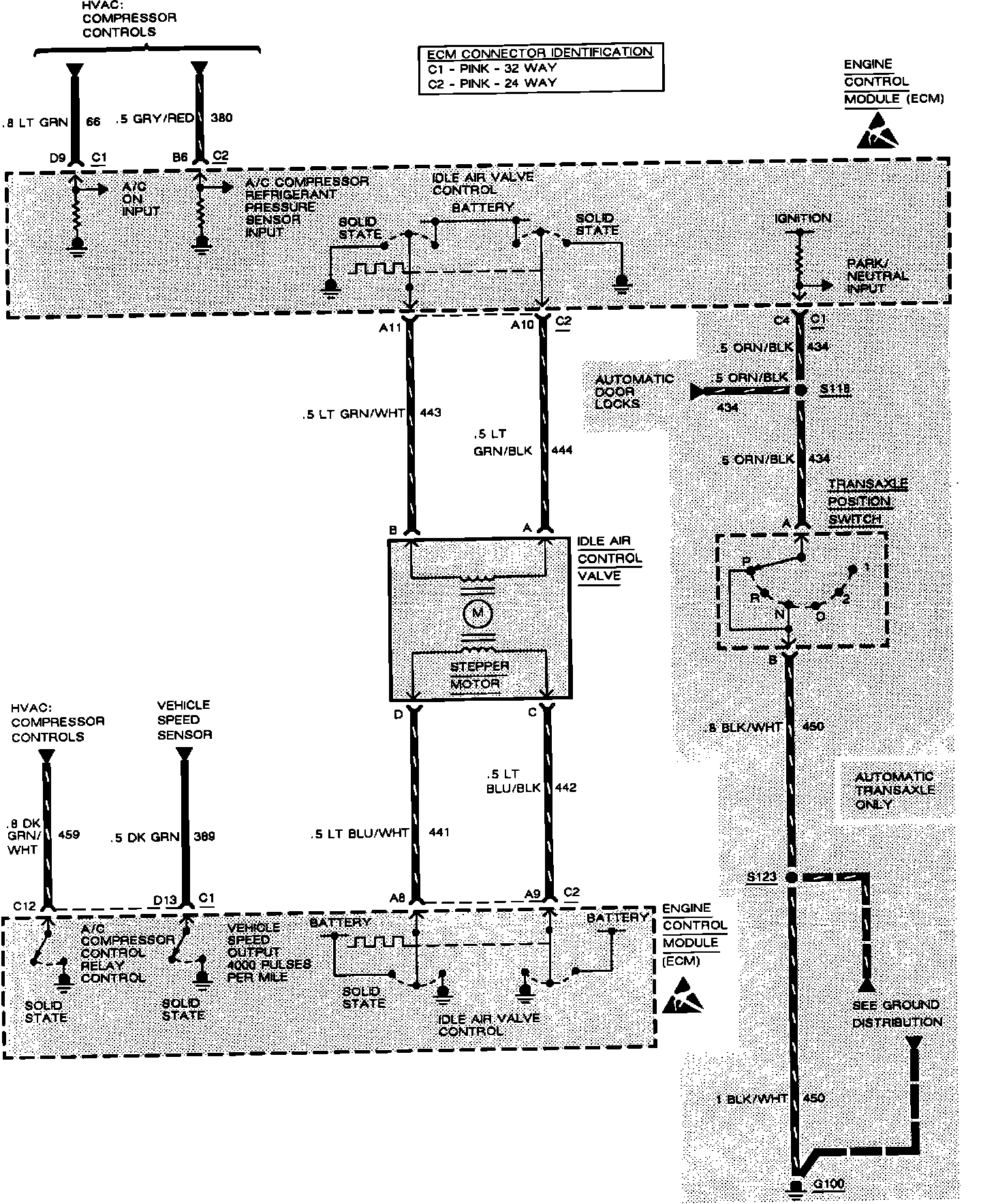

MFI: Vehicle Data Sensors And Idle Air Control:
