Diagram Information and Instructions
>>

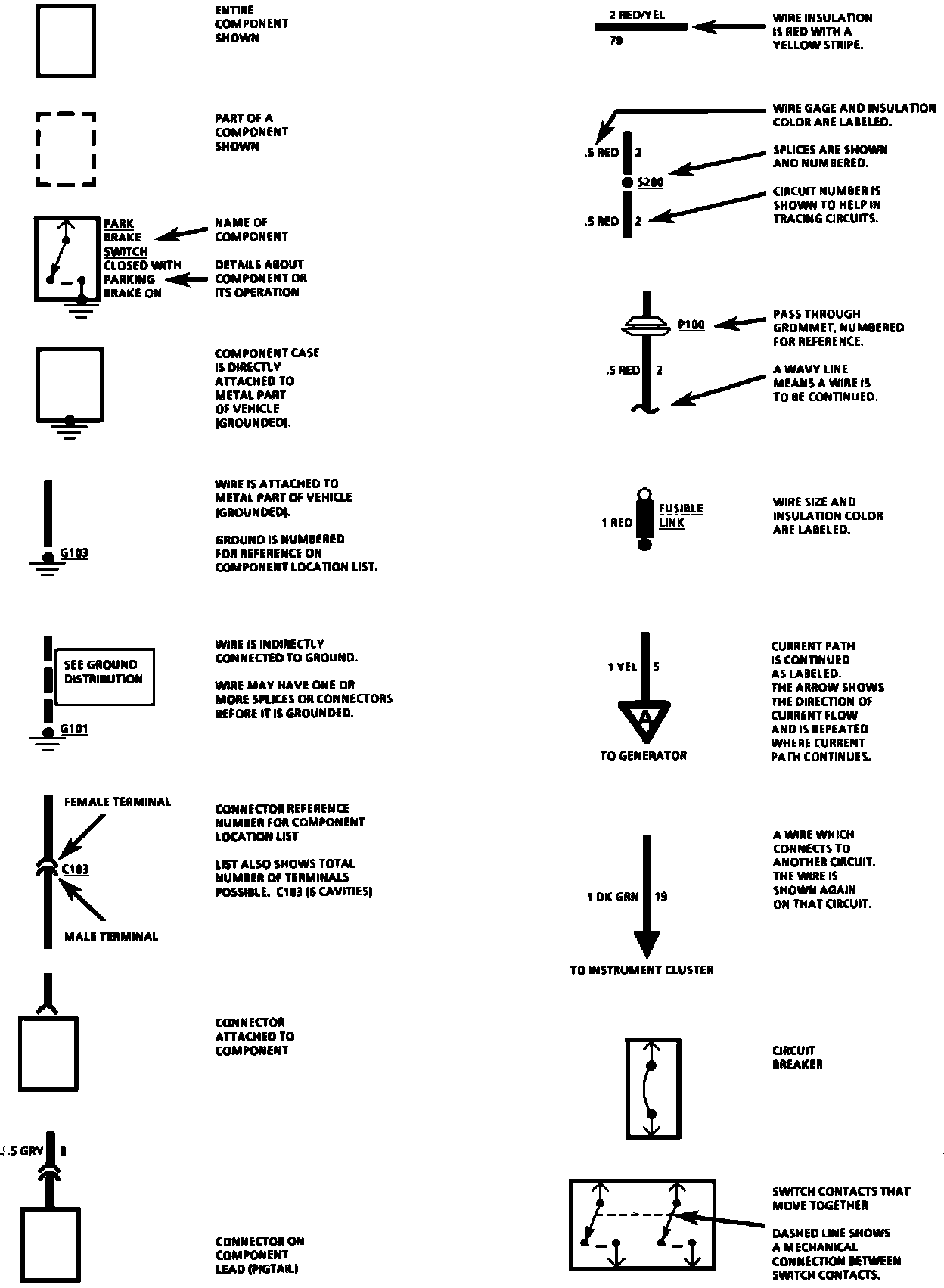

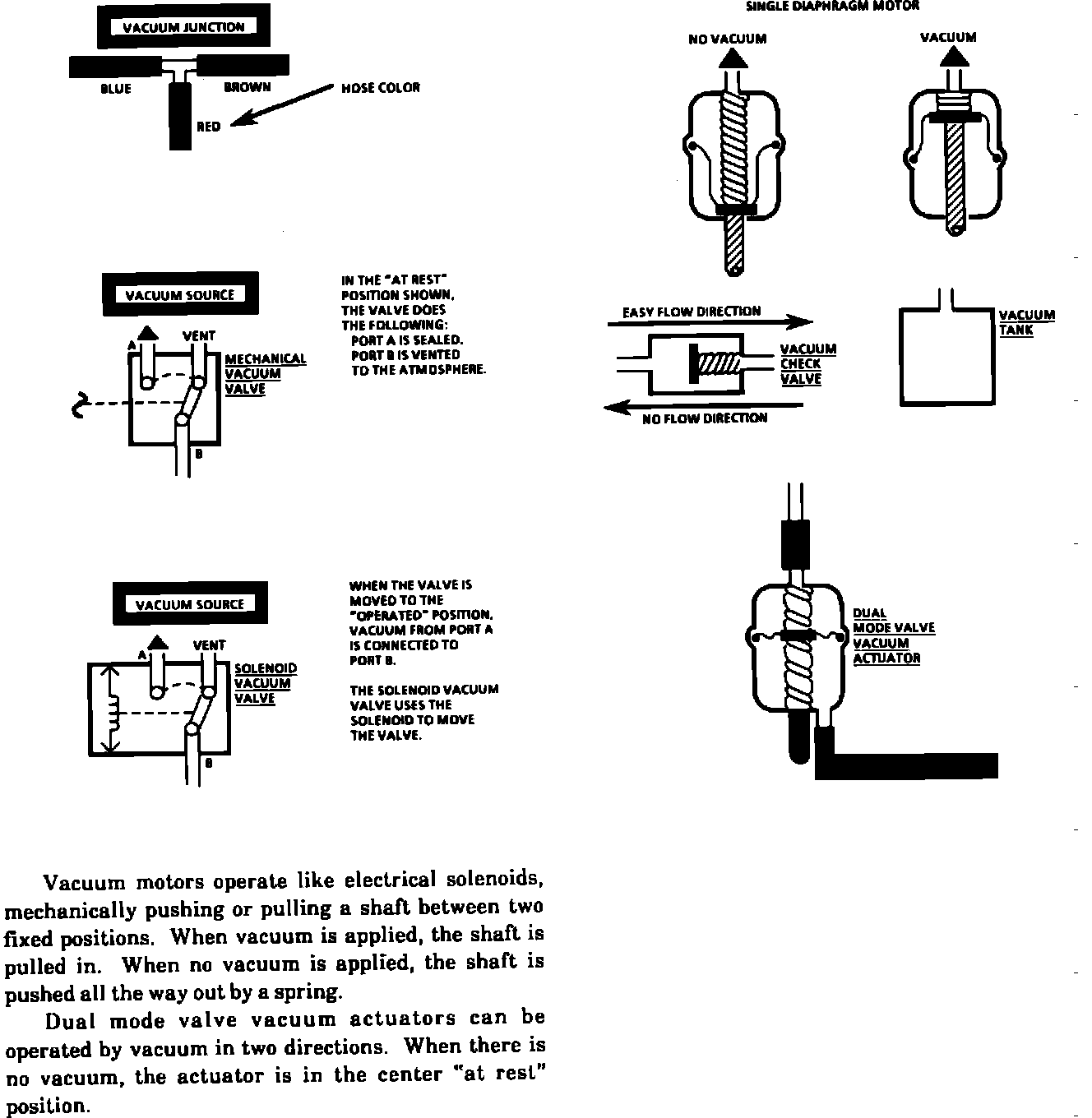

Schematic Symbols
Schematic Symbols
Symbols:
Symbols:
Symbols:
