Gages Fuse, F/P Fuse, Turn B/U Fuse and ECM Fuse
Gages Fuse, F/P Fuse, Turn B/U Fuse and ECM Fuse

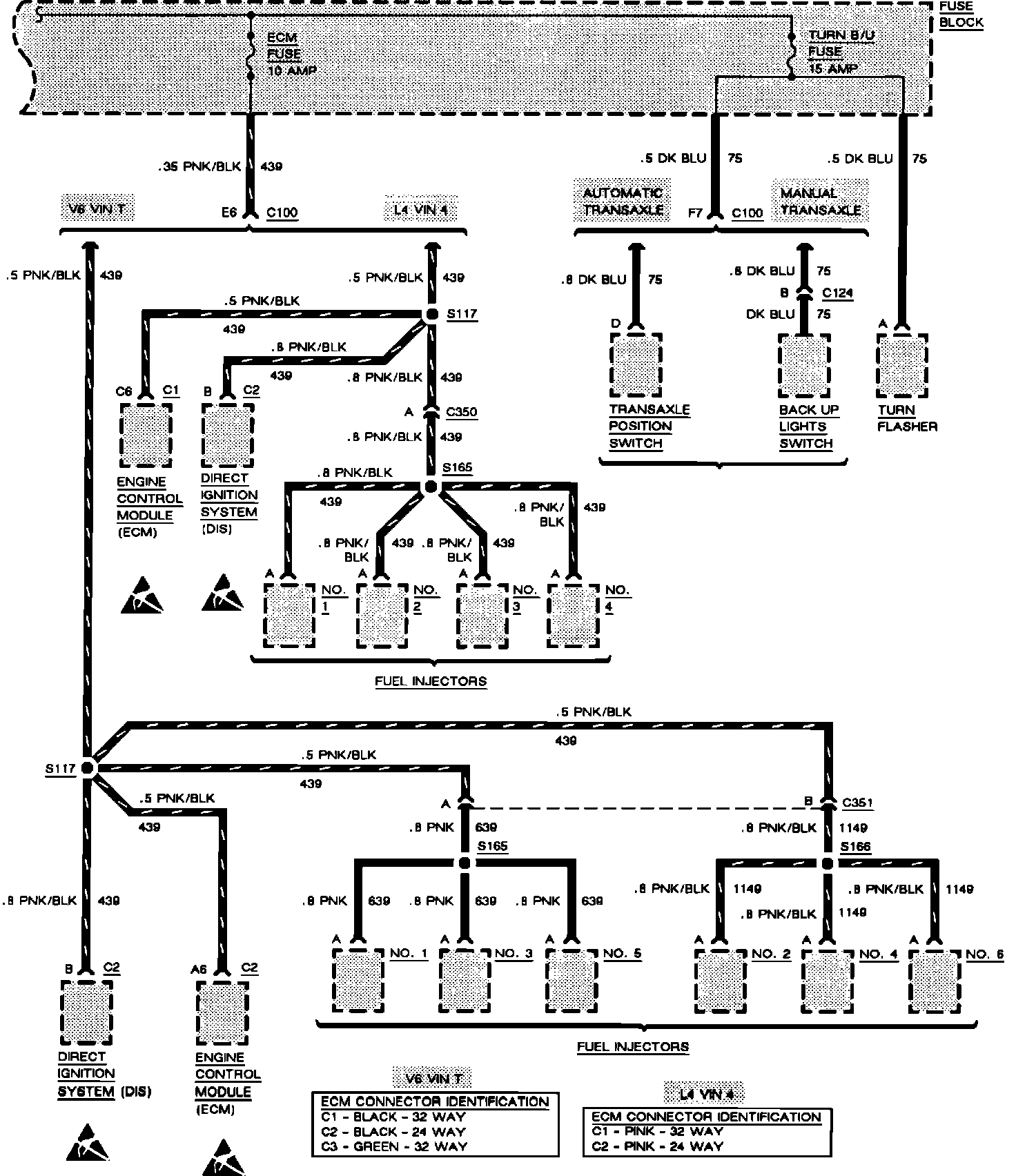

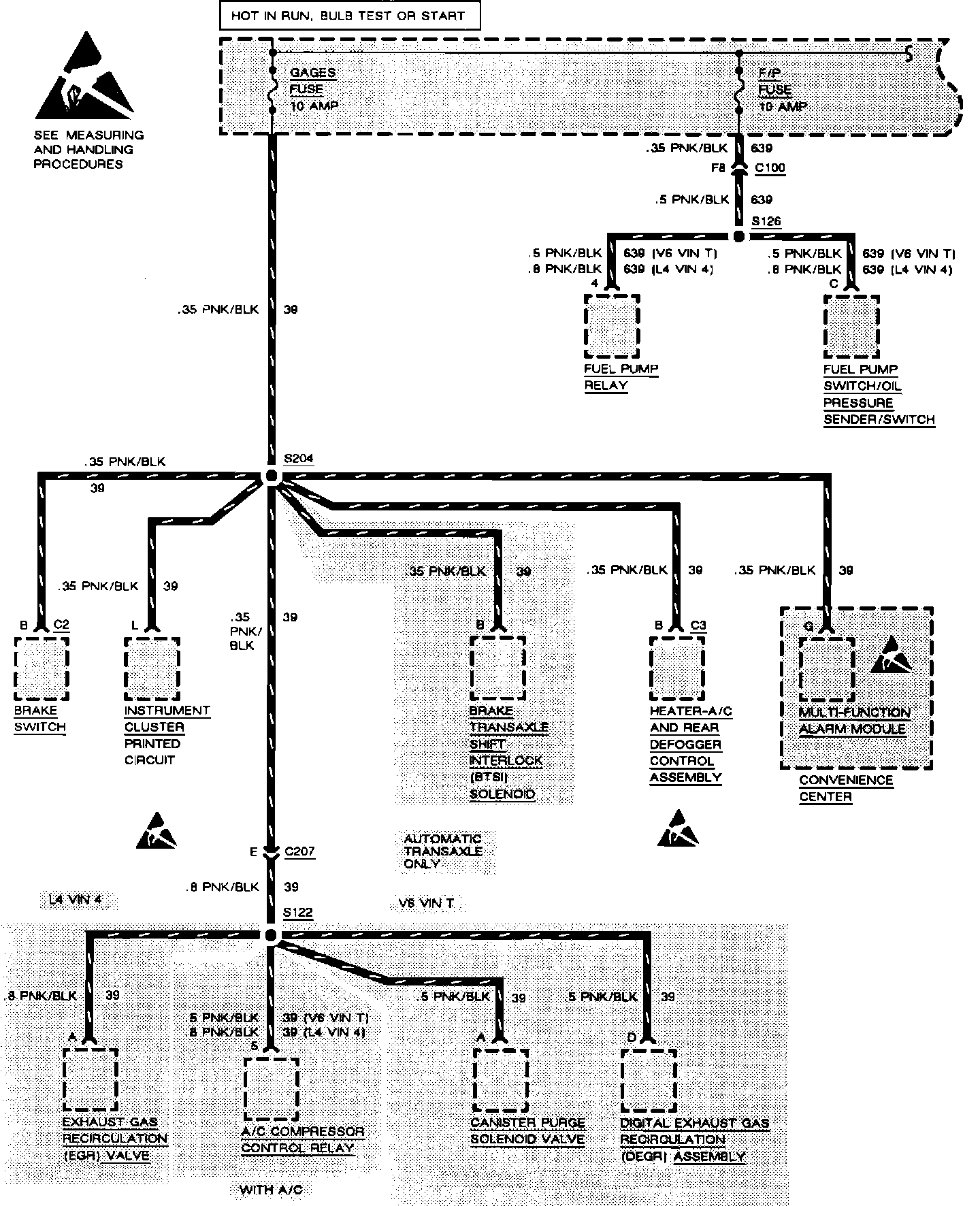

Fuse Block Details: Gages Fuse, F/P Fuse, Turn B/U Fuse And ECM Fuse:
Fuse Block Details: Gages Fuse, F/P Fuse, Turn B/U Fuse And ECM Fuse:
