Chevrolet
>>
1992
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G312 (Station Wagon)
G312 (Station Wagon)

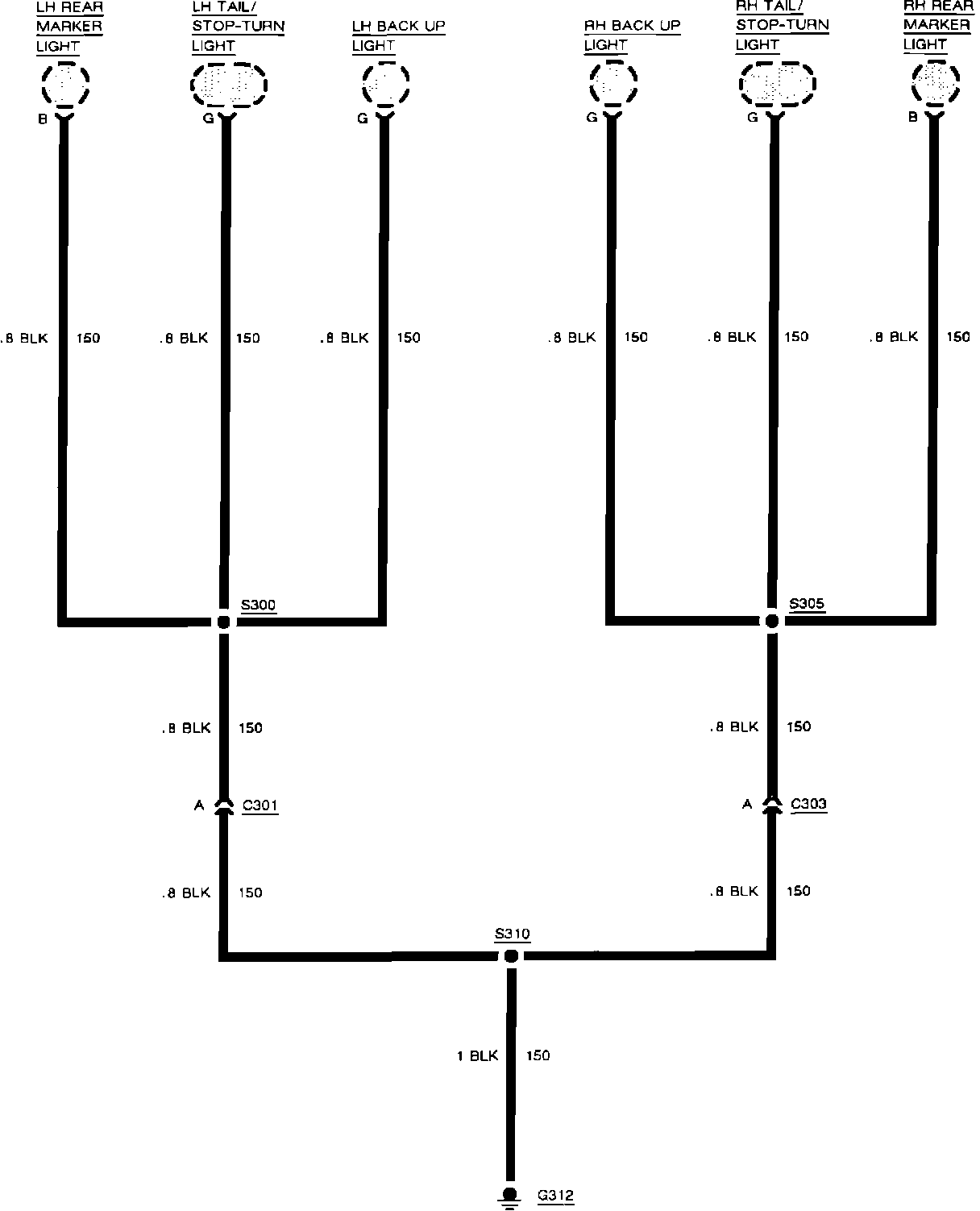

Ground Distribution: G312 (Rear Lights Grounds):
