Headlamp
>>
Diagrams
>>
Connector Views
Connector Views

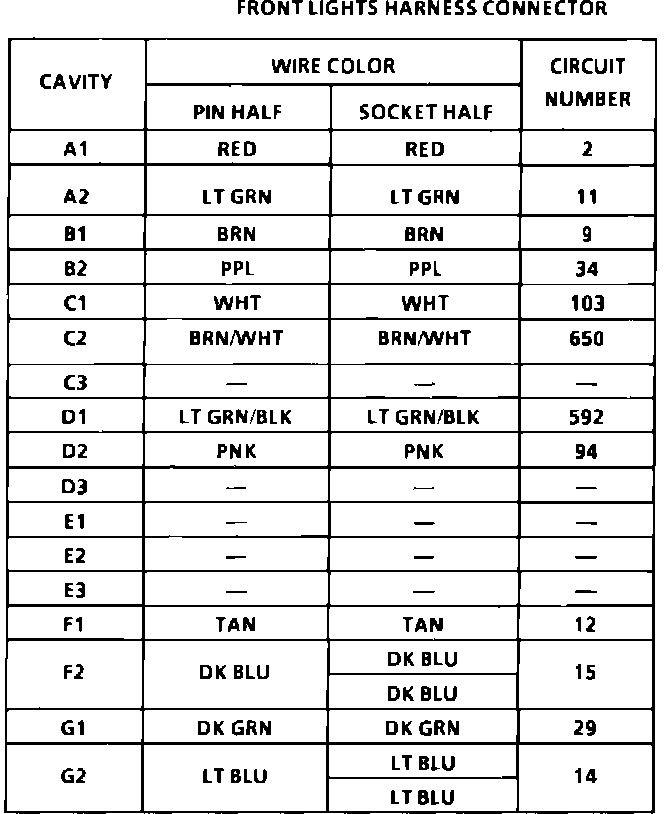

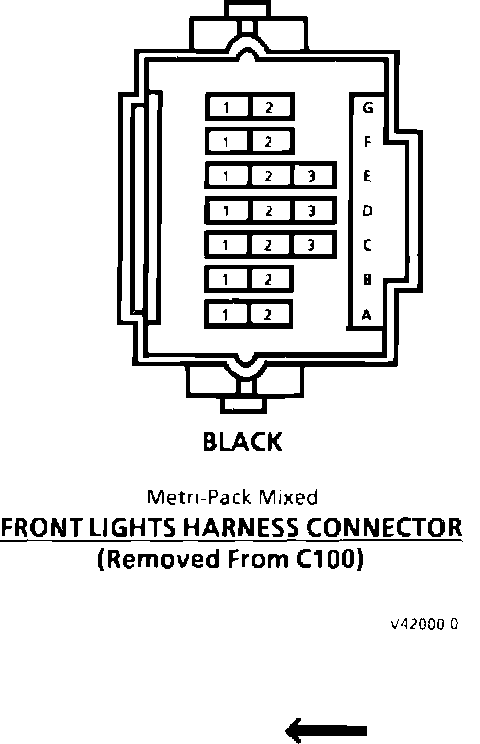

Front Lights Harness Connector Face:
Front Lights Harness Connector Face:
