Chevrolet
>>
1992
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Compressor HVAC
Compressor HVAC

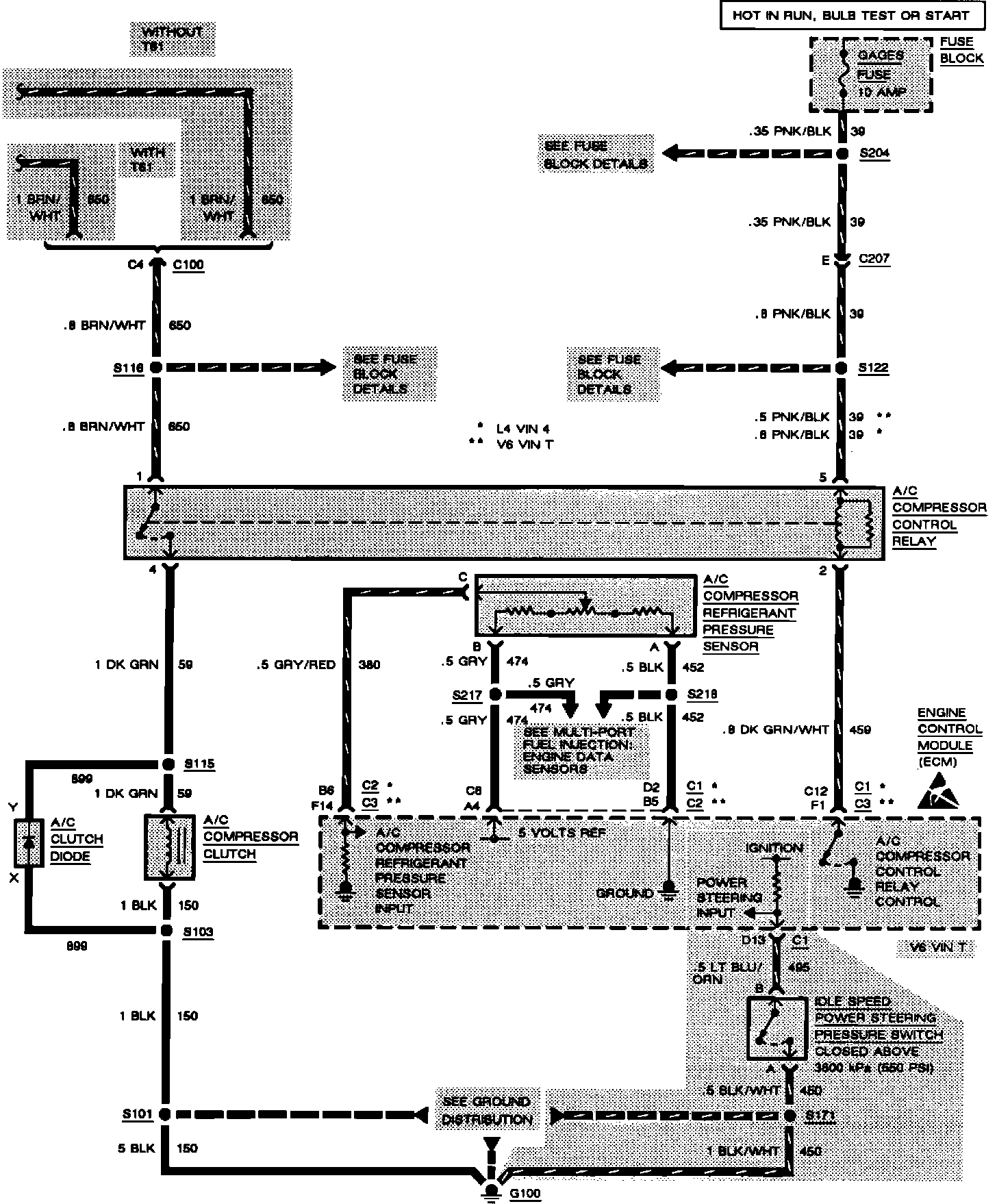

HVAC: Compressor Controls:
HVAC: Compressor Controls:
