Pictorial Views

ALDL Connector:

ALDL CONNECTOR

Engine Wiring:

1 = BLOWER MOTOR RESISTOR LEAD
2 = HEATER A/C CONTROL VACUUM LEAD
3 = BLOWER MOTOR POWER LEAD
4 = BLOWER MOTOR GROUND LEAD
5 = BLOWER MOTOR RELAY (A/C ONLY)
6 = A/C COMPRESSOR RELAY (A/C ONLY)
7 = FUEL PUMP RELAY

Engine Wiring:

1 = ABS CONTROL MODULE
2 = ABS SOLENOID CONNECTORS
3 = MASTER CYLINDER
4 = ENGINE HARNESS
5 = ABS RELAY

Engine Wiring:

1 = ENGINE COOLANT SENSOR CONNECTOR
2 = WATER TEMP. SWITCH CONNECTOR
3 = TCC SWITCH CONNECTOR
4 = COOLING FAN CONNECTOR
5 = ABS HARNESS

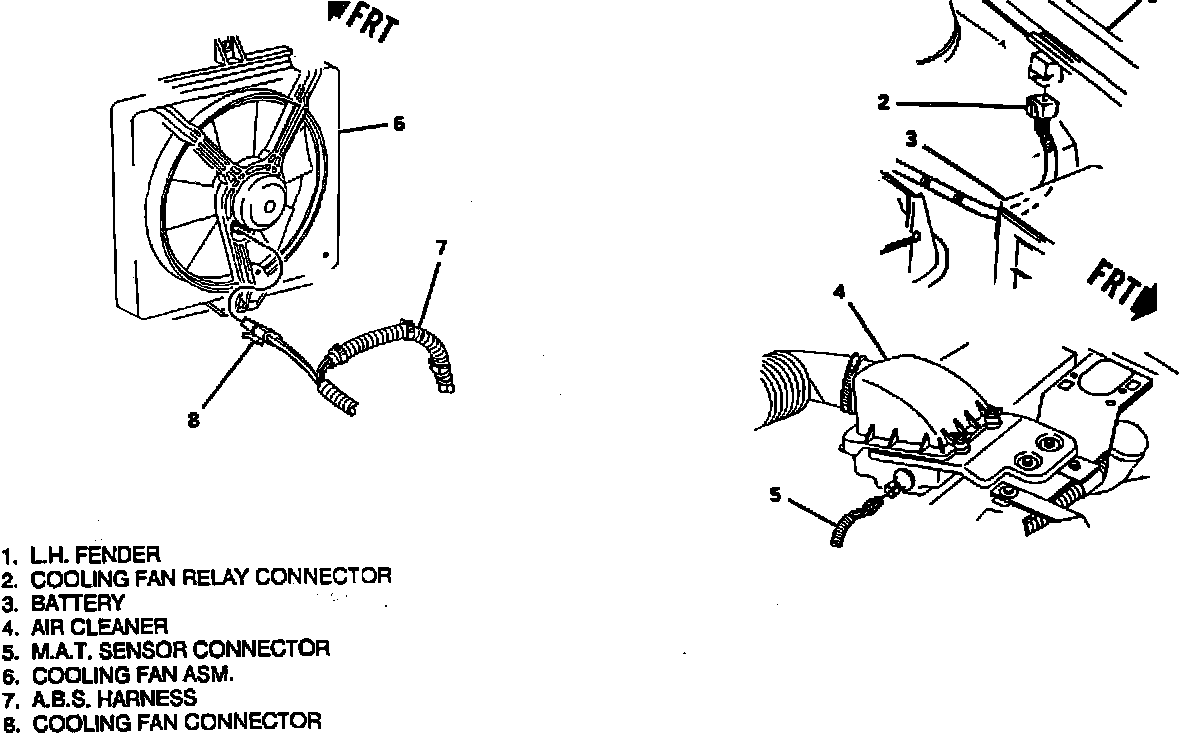

Engine Wiring:

1 = LH FENDER
2 = COOLING FAN RELAY CONNECTOR
3 = BATTERY
4 = AIR CLEANER
5 = MAT SENSOR CONNECTOR
6 = COOLING FAN ASM.
7 = ABS HARNESS
8 = COOLING FAN CONNECTOR

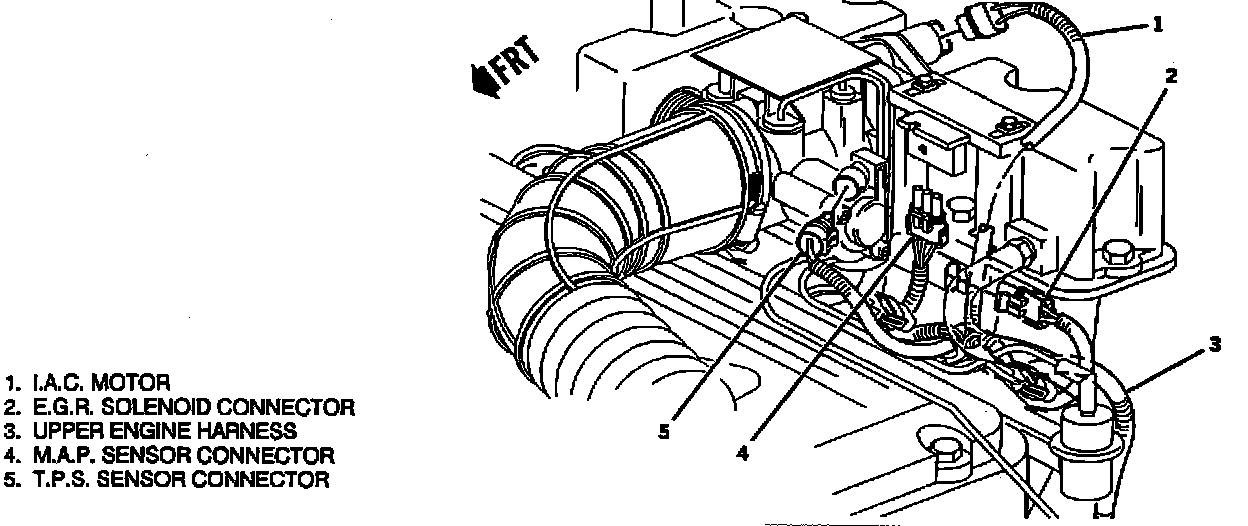

Engine Wiring:

1 = IAC MOTOR
2 = EGR SOLENOID CONNECTOR
3 = UPPER ENGINE HARNESS
4 = MAP SENSOR CONNECTOR
5 = TPS SENSOR CONNECTOR

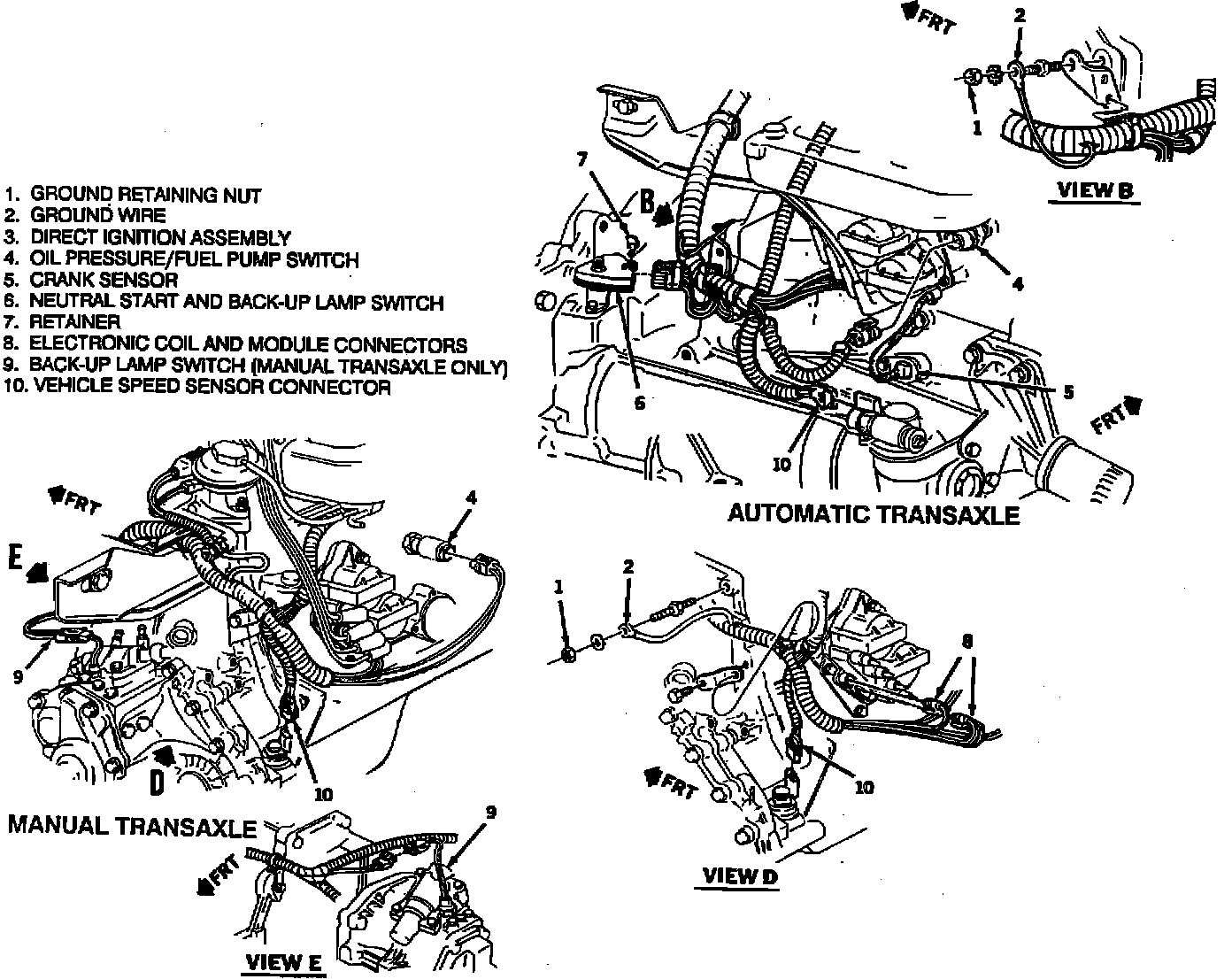

Engine Wiring:

1 = GROUND RETAINING NUT
2 = GROUND WIRE
3 = DIRECT IGNITION ASSEMBLY
4 = OIL PRESSURE/FUEL PUMP SWITCH
5 = CRANK SENSOR
6 = NEUTRAL START AND BACK-UP LAMP SWITCH
7 = RETAINER
8 = ELECTRONIC COIL AND MODULE CONNECTORS
9 = BACK-UP LAMP SWITCH (MANUAL TRANSAXLE ONLY)
10 = VEHICLE SPEED SENSOR CONNECTOR

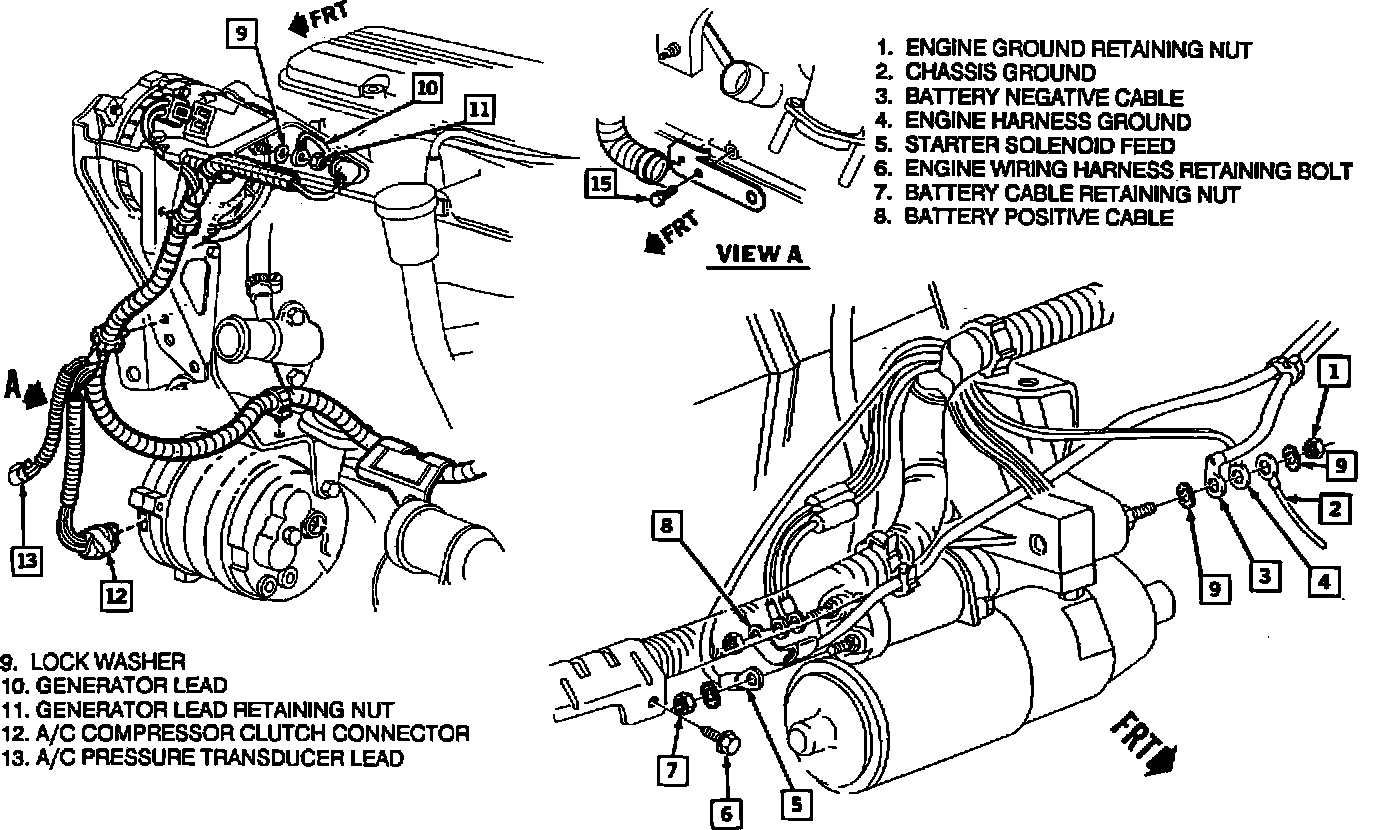

Engine Wiring:

1 = ENGINE GROUND RETAINING NUT
2 = CHASSIS GROUND
3 = BATTERY NEGATIVE CABLE
4 = ENGINE HARNESS GROUND
5 = STARTER SOLENOID FEED
6 = ENGINE WIRING HARNESS RETAINING BOLT
7 = BATTERY CABLE RETAINING NUT
8 = BATTERY POSITIVE CABLE
9 = LOCK WASHER
10 = GENERATOR LEAD
11 = GENERATOR LEAD RETAINING NUT
12 = A/C COMPRESSOR CLUTCH CONNECTOR
13 = A/C PRESSURE TRANSDUCER LEAD
