Multiple Junction Connector
Multiple Junction Connector

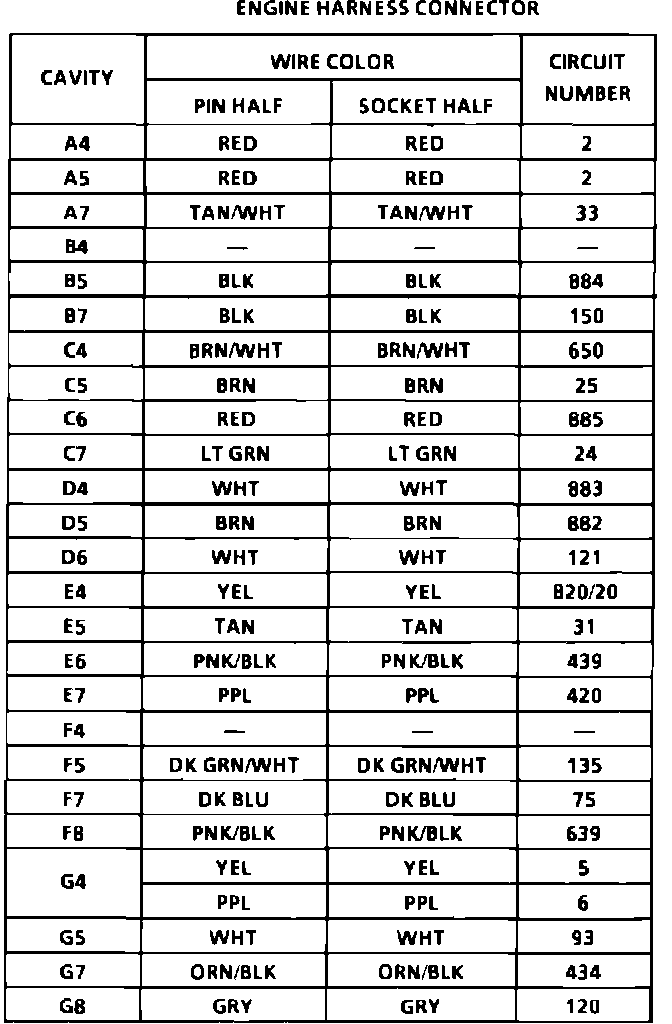

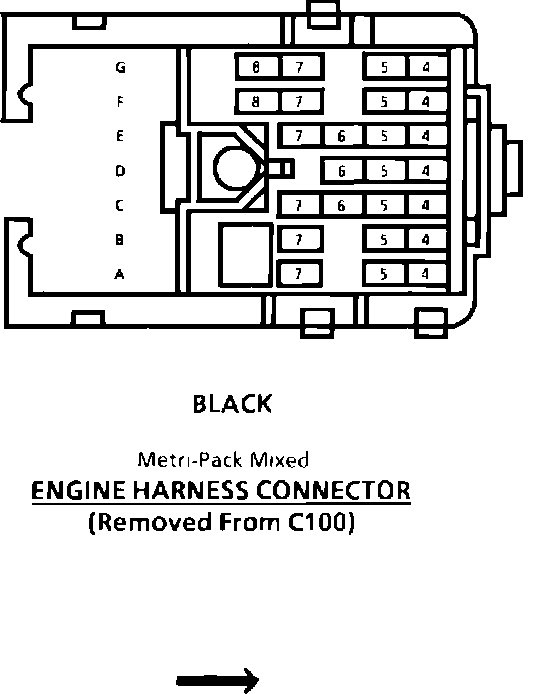

Engine Harness Connector Face:
Engine Harness Connector Face:
