A087

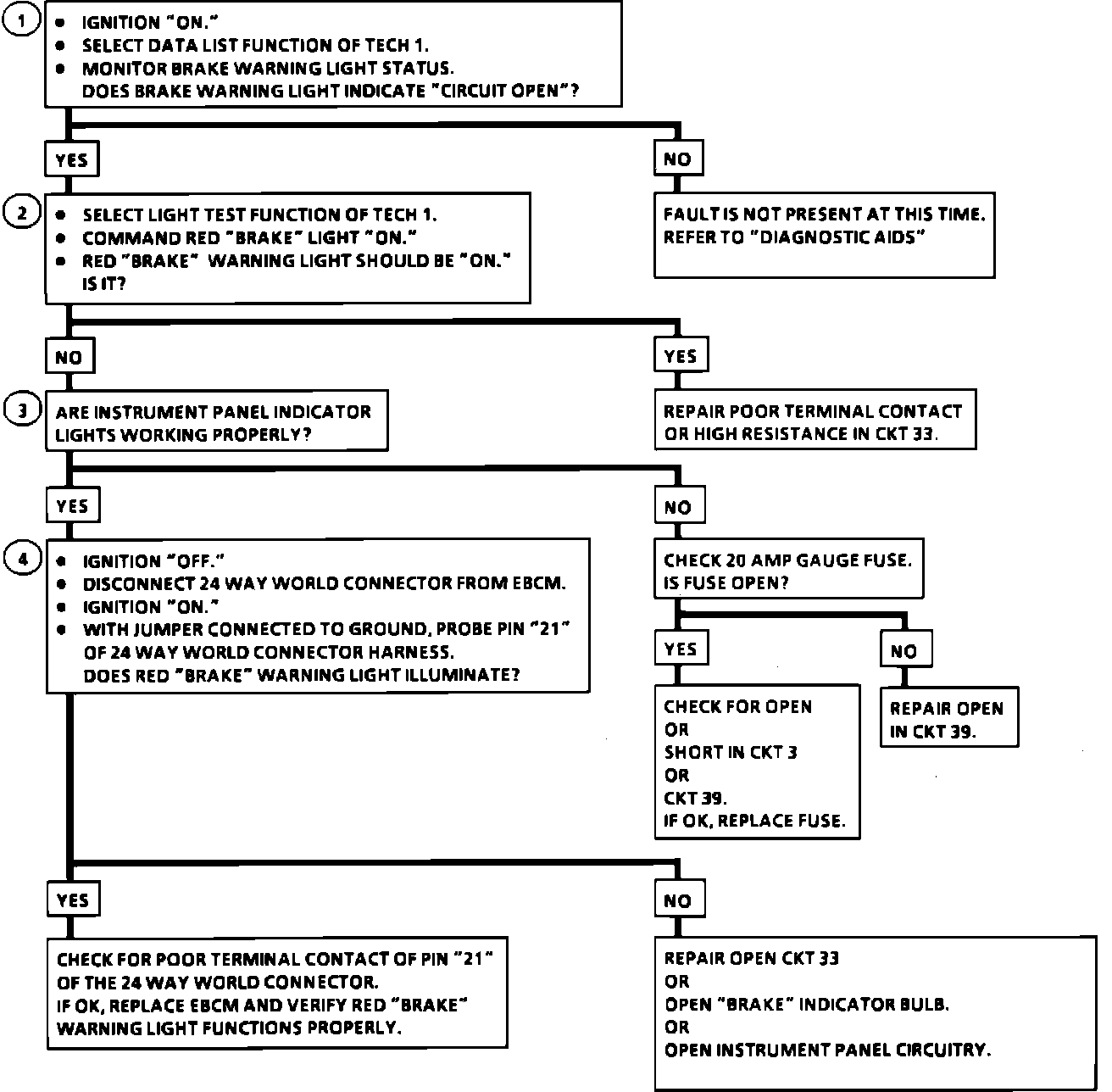

Fig. 73 Code A087, Red Brake Telltale Circuit Open:

Fig. 73 Code A087, Red Brake Telltale Circuit Open:
