A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
- A Code Charts
>>
A058
A058

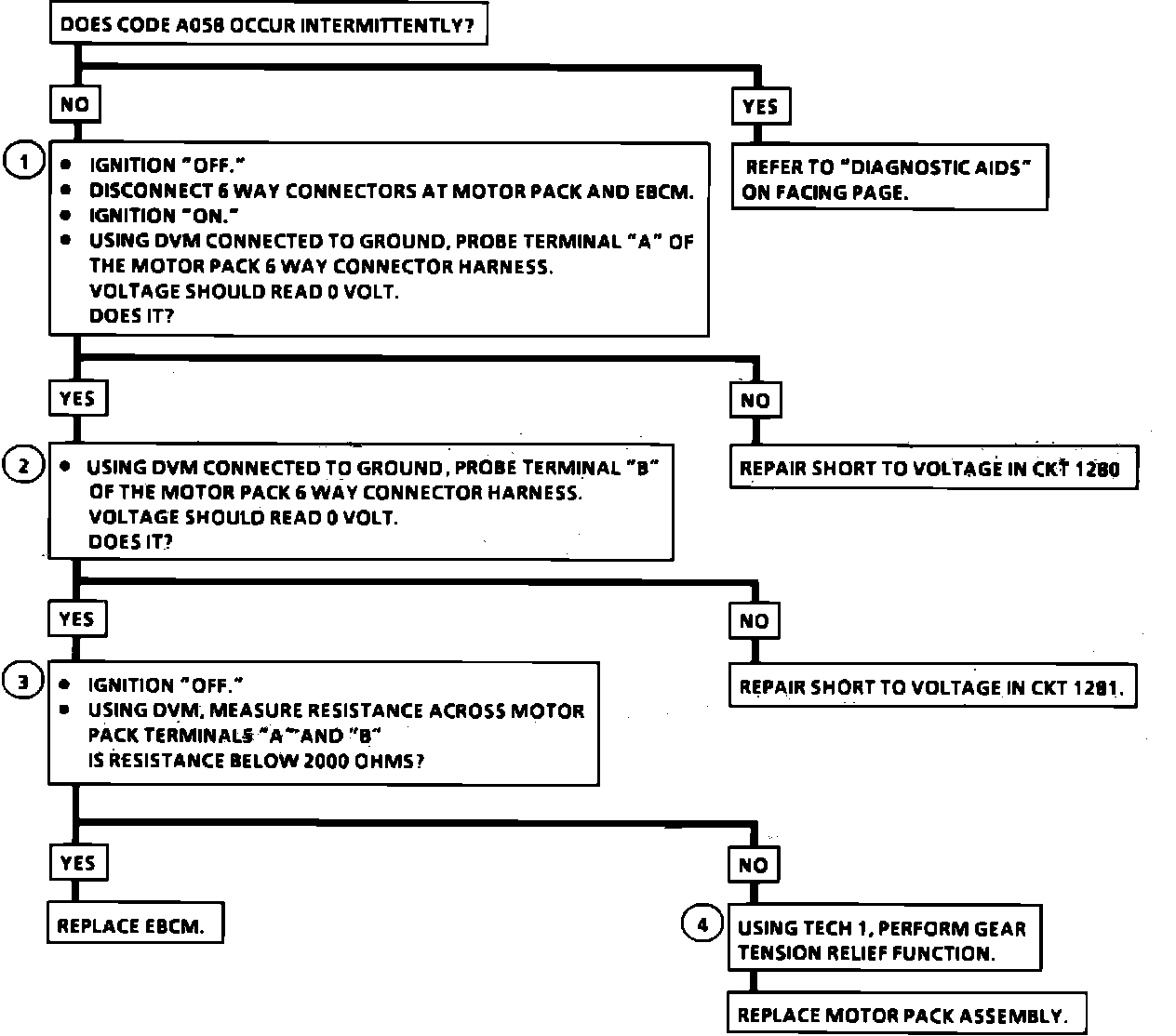

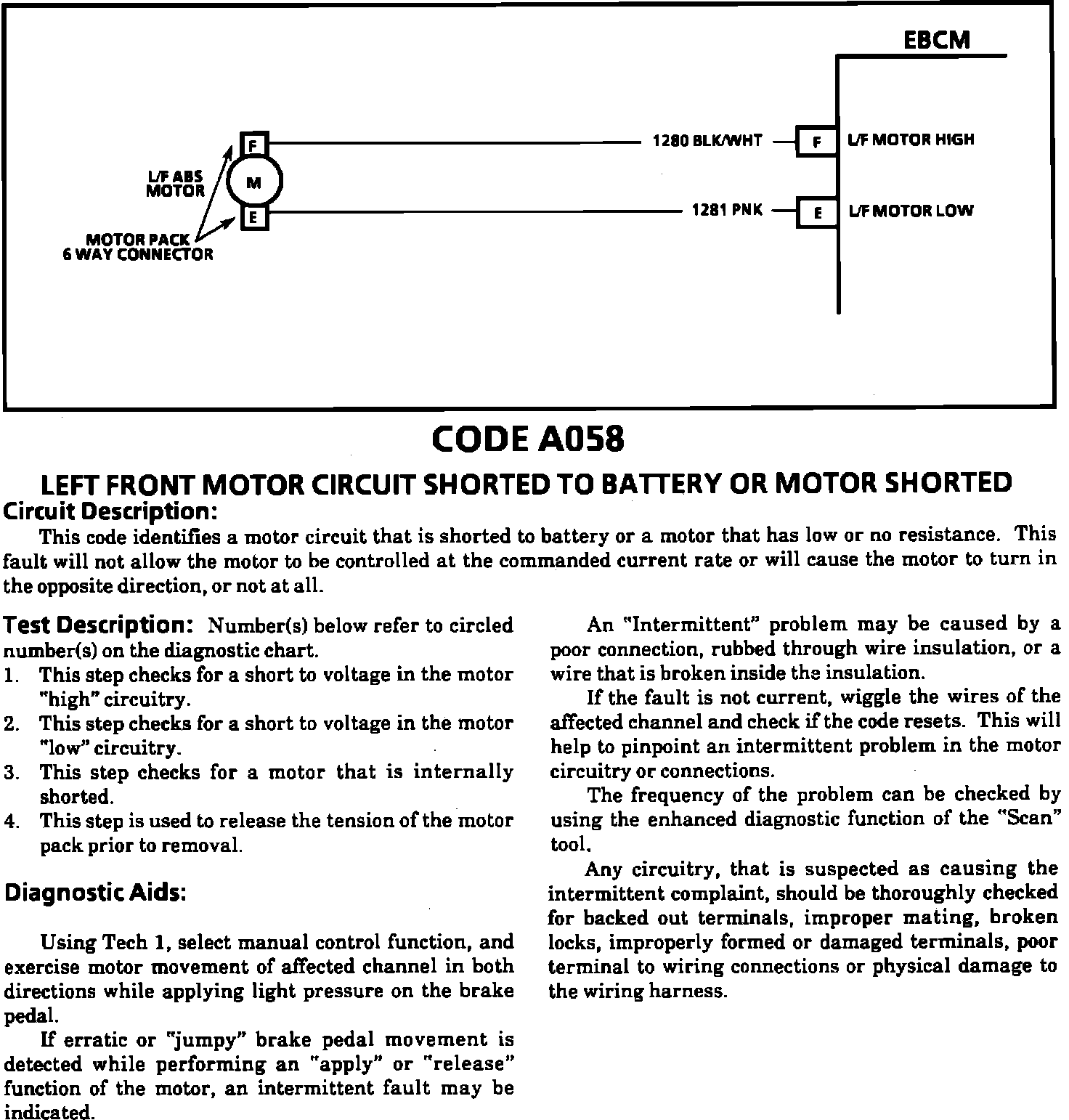

Fig. 56 Code A058, Left Front Motor Circuit Shorted To Battery:
Fig. 56 Code A058, Left Front Motor Circuit Shorted To Battery:
