A024

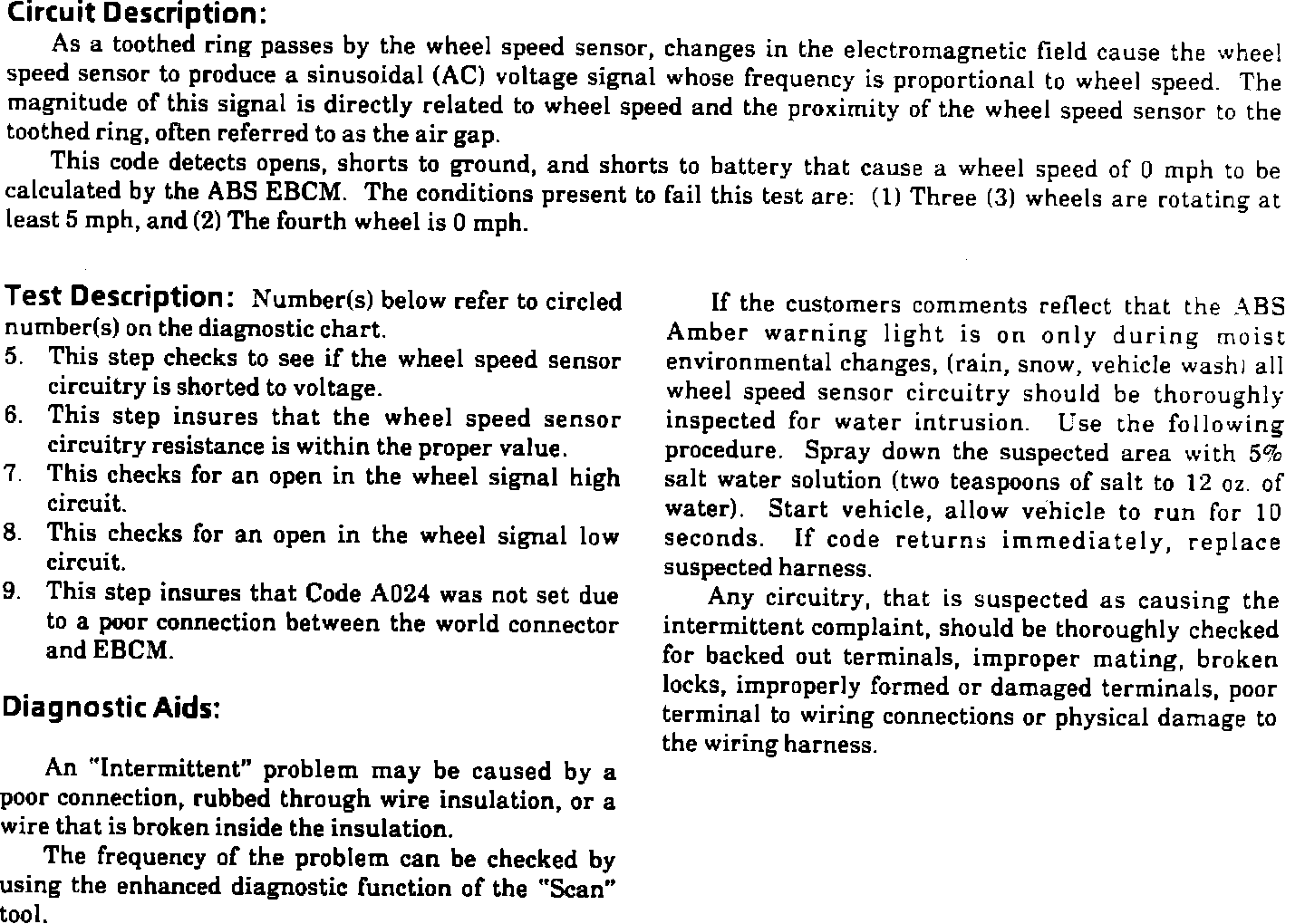

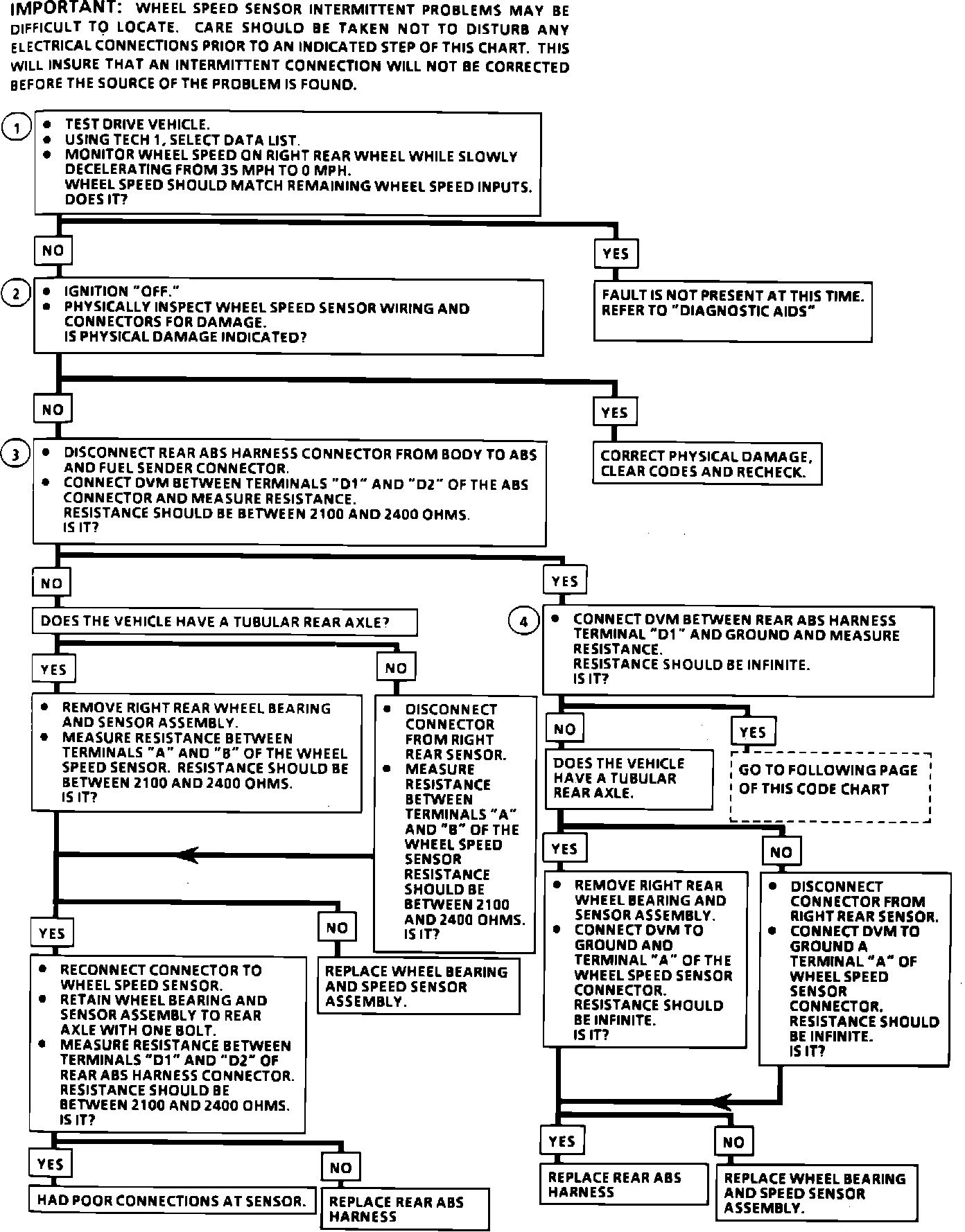

Fig. 26 Code A024, Right Rear Wheel Speed = 0 (Part 1 Of 4):

Fig. 26 Code A024, Right Rear Wheel Speed = 0 (Part 2 Of 4):

Fig. 26 Code A024, Right Rear Wheel Speed = 0 (Part 3 Of 4):

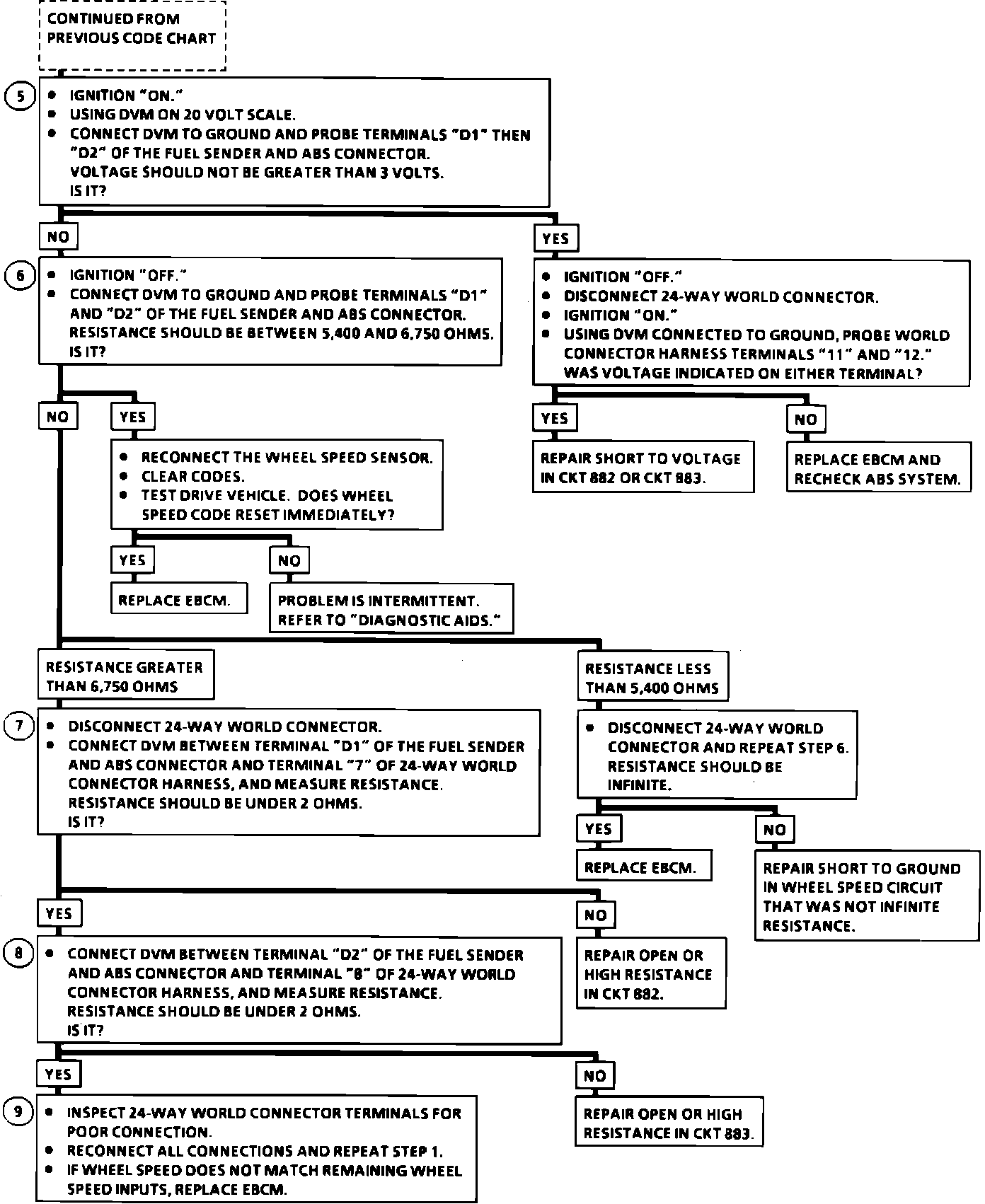

Fig. 26 Code A024, Right Rear Wheel Speed = 0 (Part 4 Of 4):
