A018

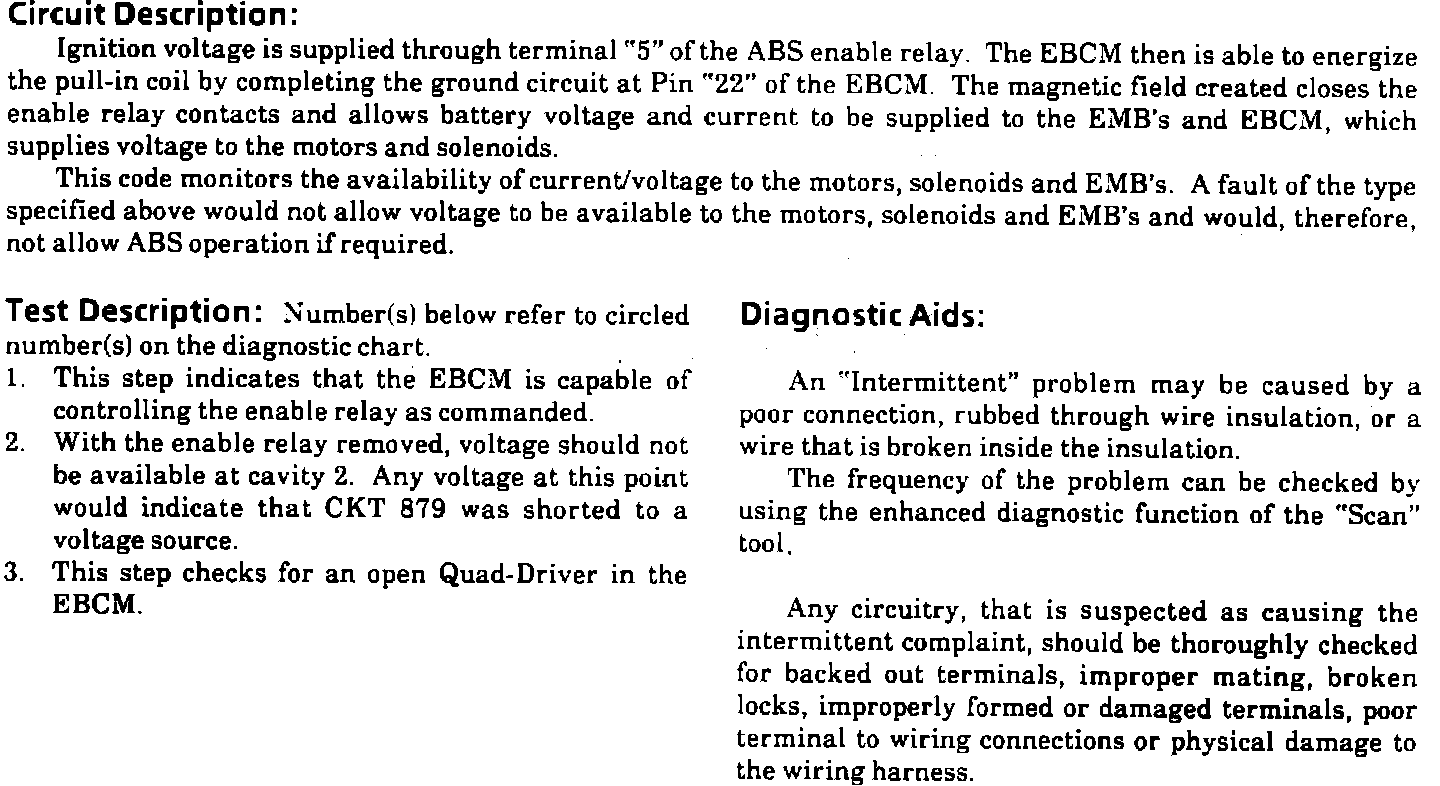

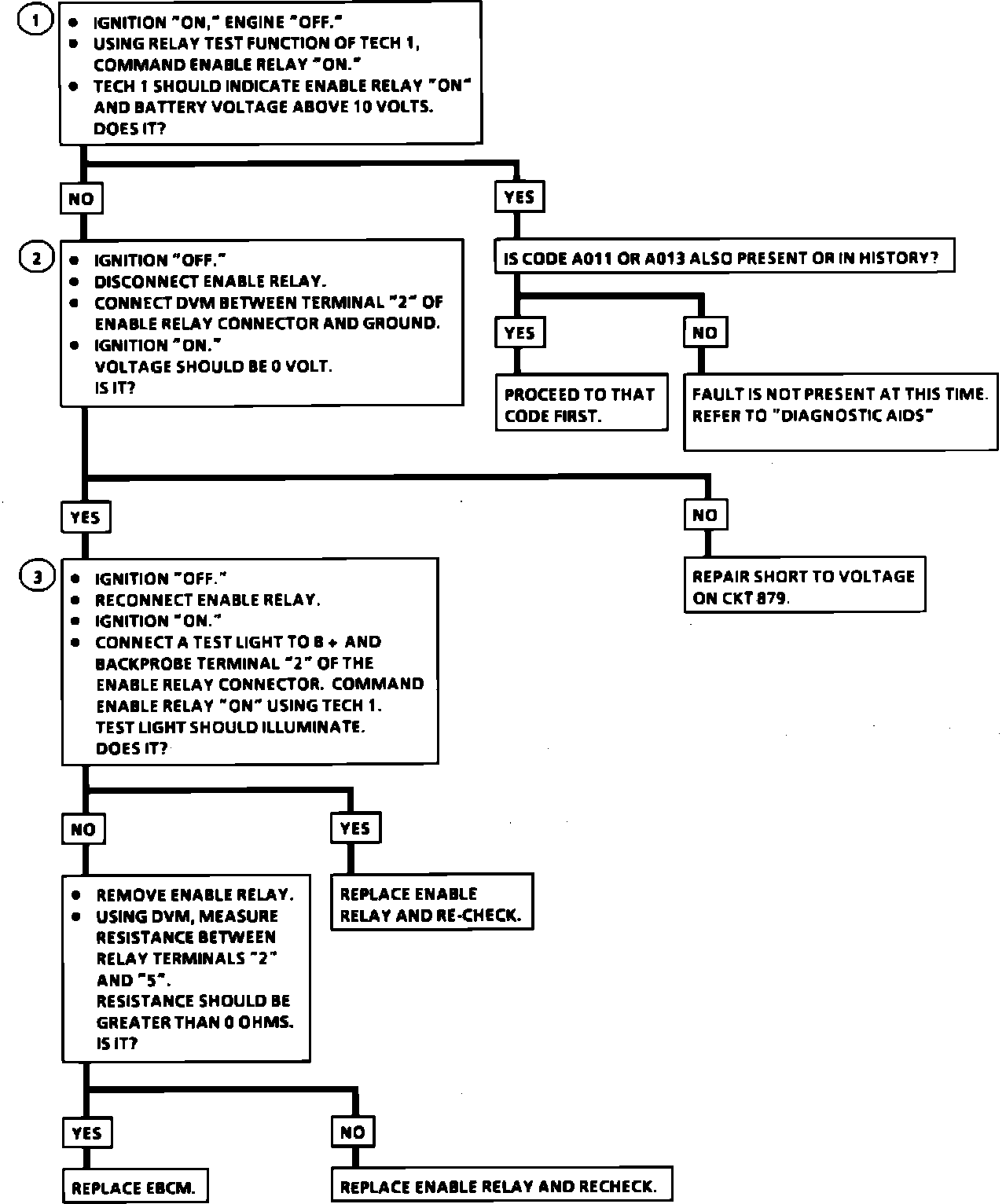

Fig. 22 Code A018, Enable Relay Coil Circuit Shorted To Battery Positive Or Coil Has Zero Ohms:



Fig. 22 Code A018, Enable Relay Coil Circuit Shorted To Battery Positive Or Coil Has Zero Ohms:
