Service Procedure

OWNER'S MANUAL INSERT INSTRUCTIONS (ALL VEHICLES)

Install new owner's manual fuse specification inserts to pages 271 and 272 of owner's manual. Also, install "Second Edition" sticker over matching information at the bottom of page 1 (Table of Contents) of the owner's manual.

FUSE BLOCK LABEL INSTRUCTIONS (IF REOUIRED)

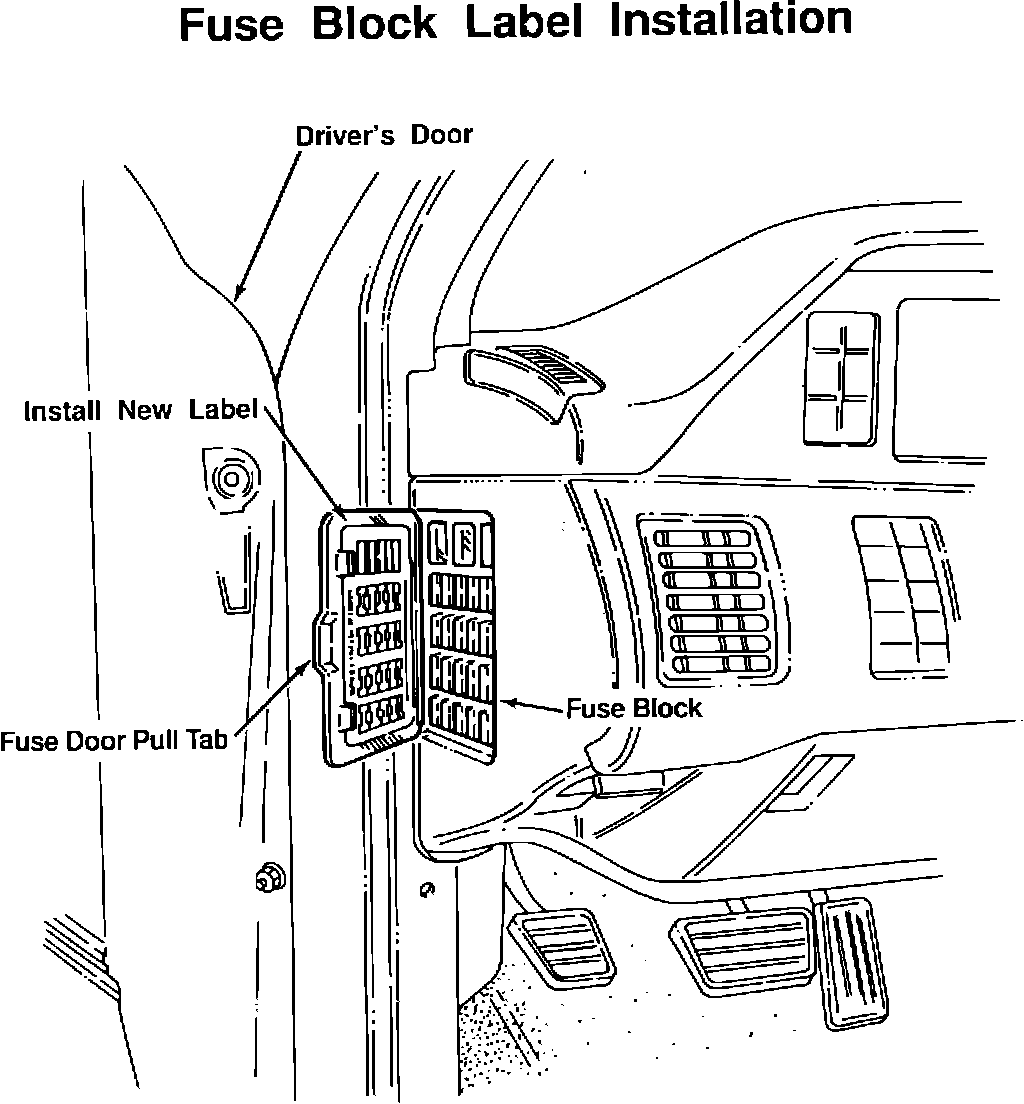

1. Open driver's door and locate fuse block door on end of instrument panel (see illustration).

2. Fuse block door may be removed by pulling tab outward (see illustration).

3. Carefully peel backing paper from new label and install over existing label on fuse block door.

4. Reinstall fuse block door.

5. Install Campaign Identification Label.
