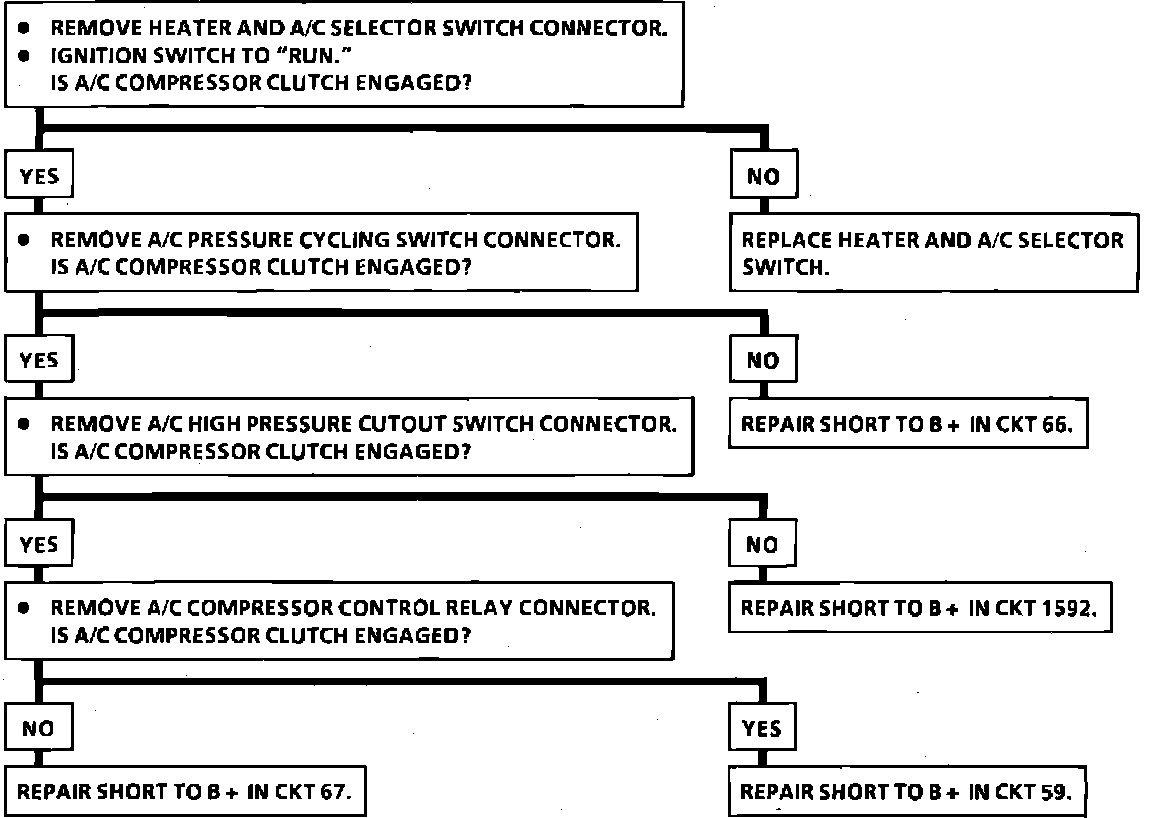

Chart #2 - A/C Compressor Clutch Always Engaged
Chart #2 - A/C Compressor Clutch Always Engaged
Chart #2 - A/C Compressor Clutch Always Engaged:
