Chevrolet
>>
1992
>>
Caprice RWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

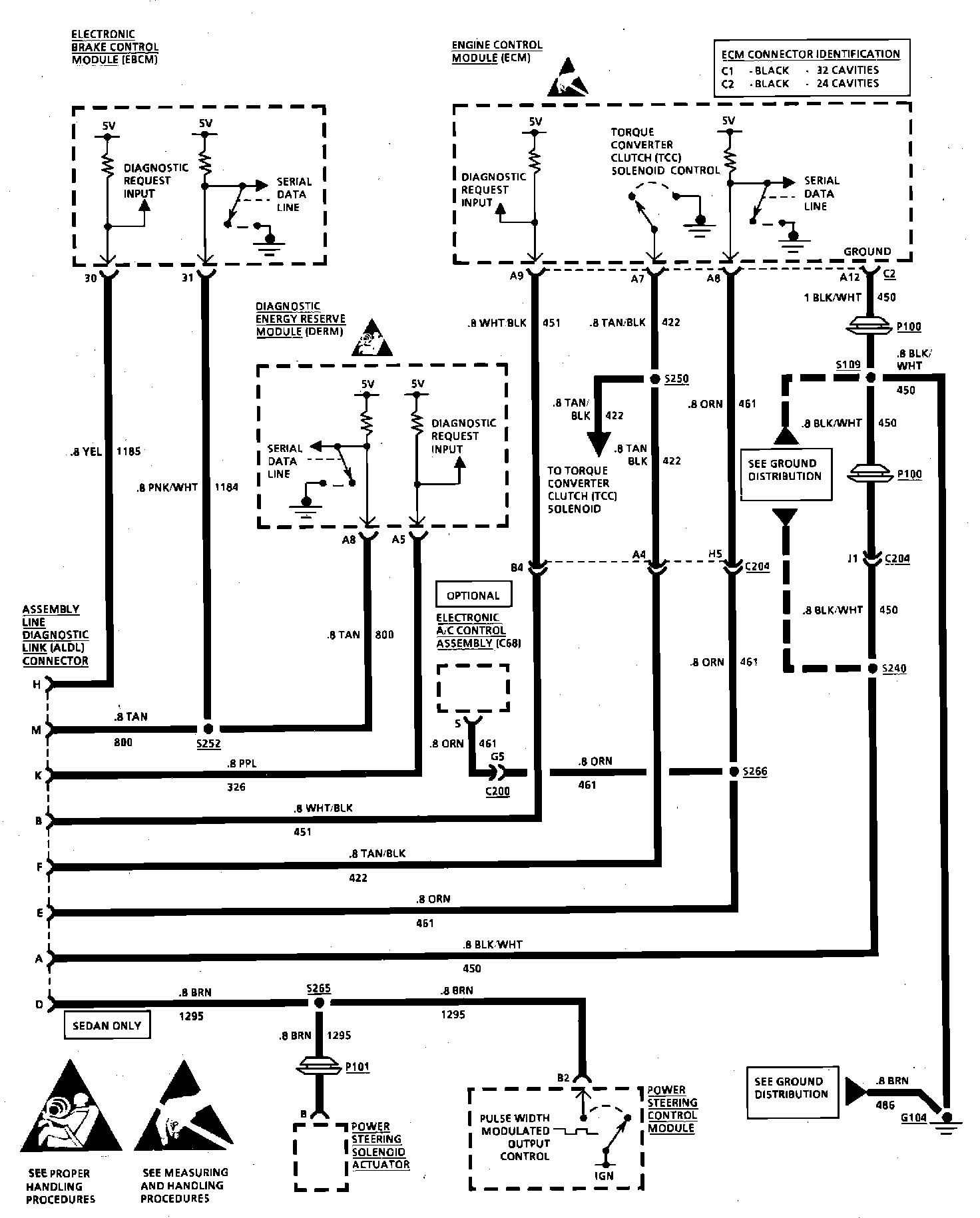

Information Bus (Data Line)
Information Bus (Data Line)
Data Line:
