Caprice RWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
With Delco-Bose Music System
With Delco-Bose Music System

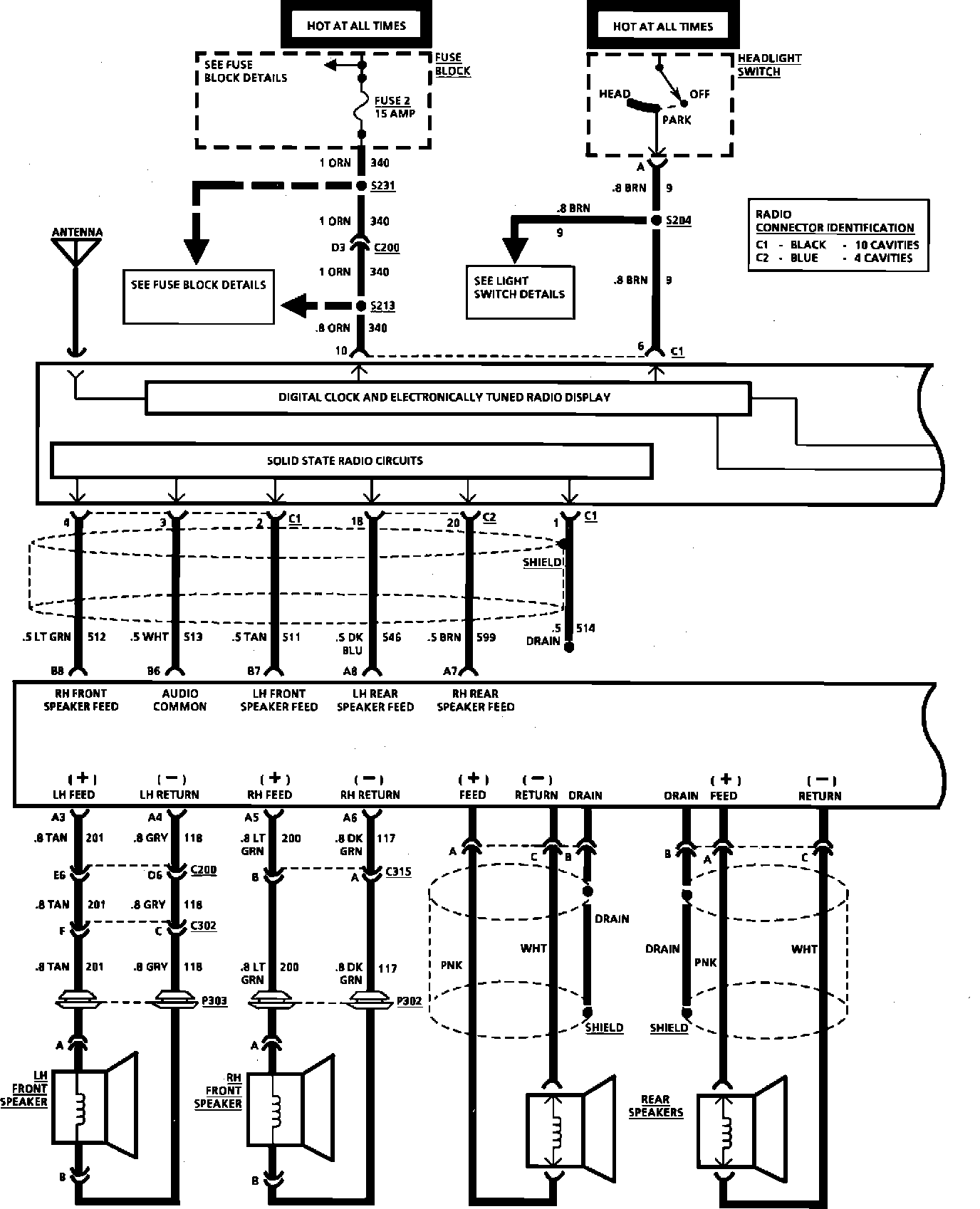

Radio (With Delco Bose):

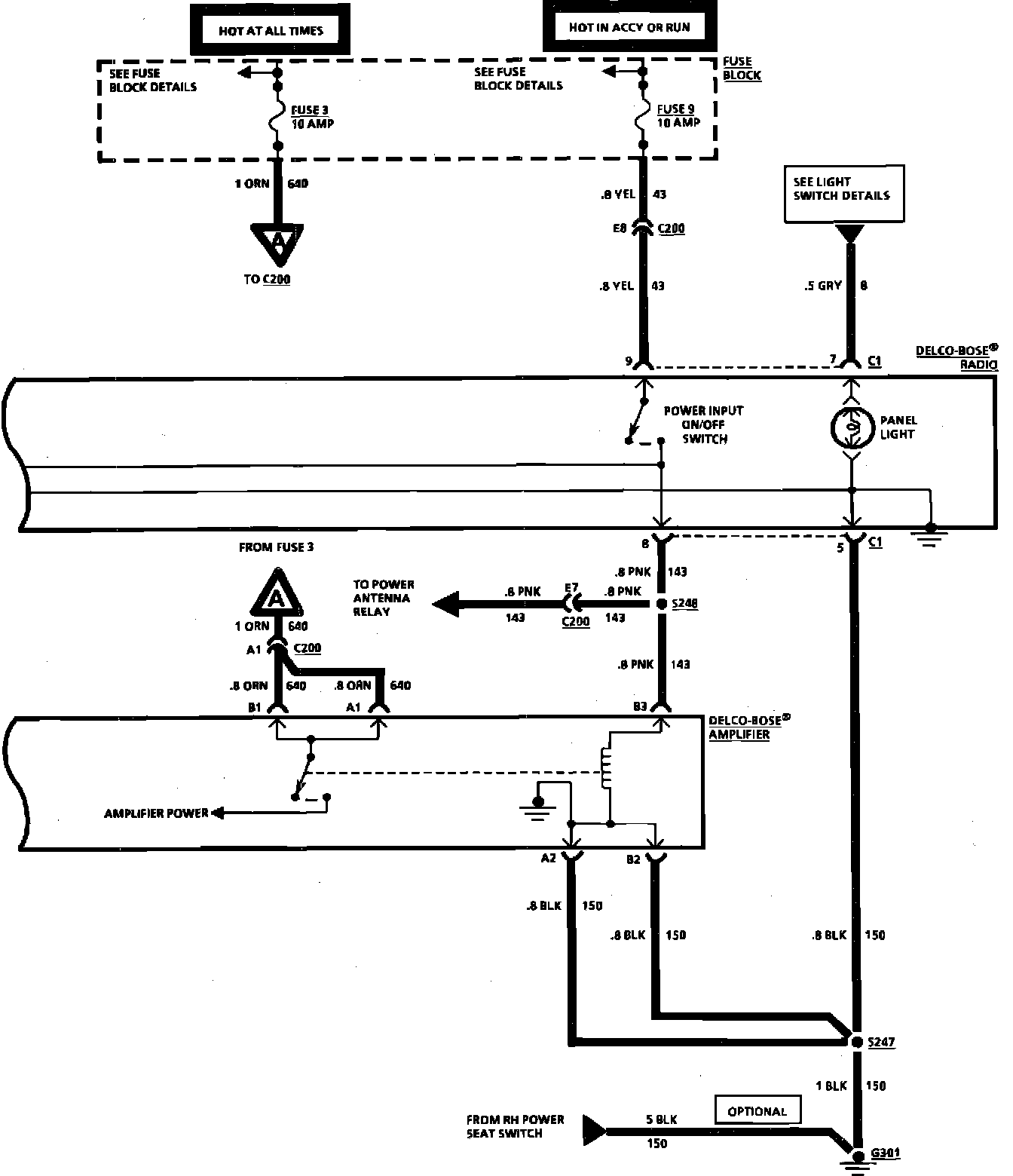

Radio (With Delco Bose):
