Chevrolet
>>
1992
>>
Caprice RWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>

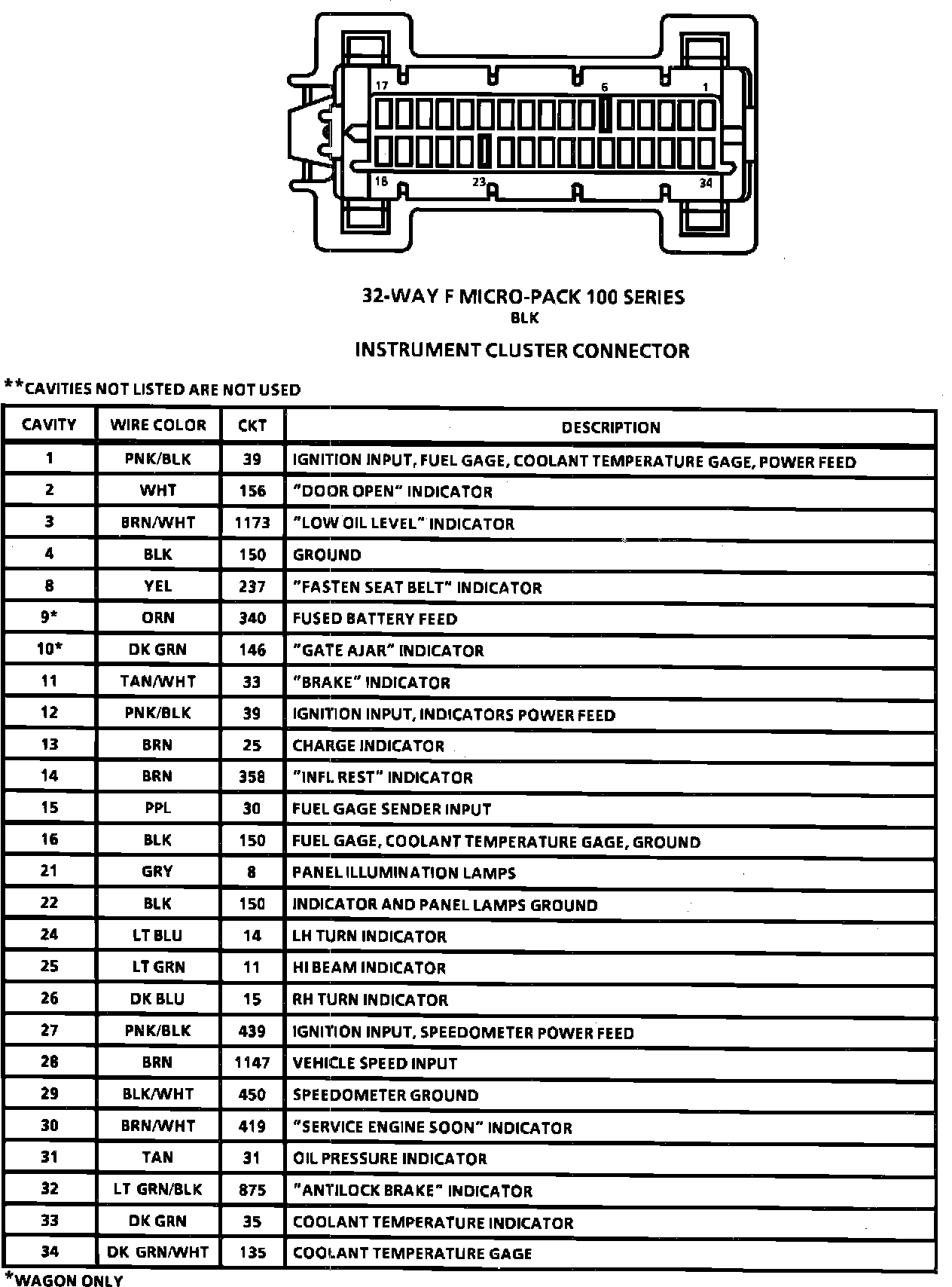

Instrument Cluster Connector
>>
32 Way Connector
32 Way Connector
Instrument Cluster Connector Face:
