Fuel - Hammering/Rattle Noise In Passenger Compartment

Number: 92-355-6C
Section: 6C
Date: JUNE 1993
Corporate Bulletin No.: 336303
ASE No.: A1, A8

Subject:
LIGHT HAMMER/RATTLE NOISE

Model and Year:
1989-92 CAMARO WITH 5.0L OR 5.7L ENGINE

CONDITION:
Some 1989-92 F-cars with 5.0L V-8 engines (RPO LB9) or 5.7L V-8 engines (RPO L98) may exhibit alight hammering/ rattle type noise audible in the vehicle passenger compartment.

CAUSE:
Pressure pulsations in the fuel system, generated by fuel injector operation, causing hydraulic hammering in chassis fuel pipes.

CORRECTION:

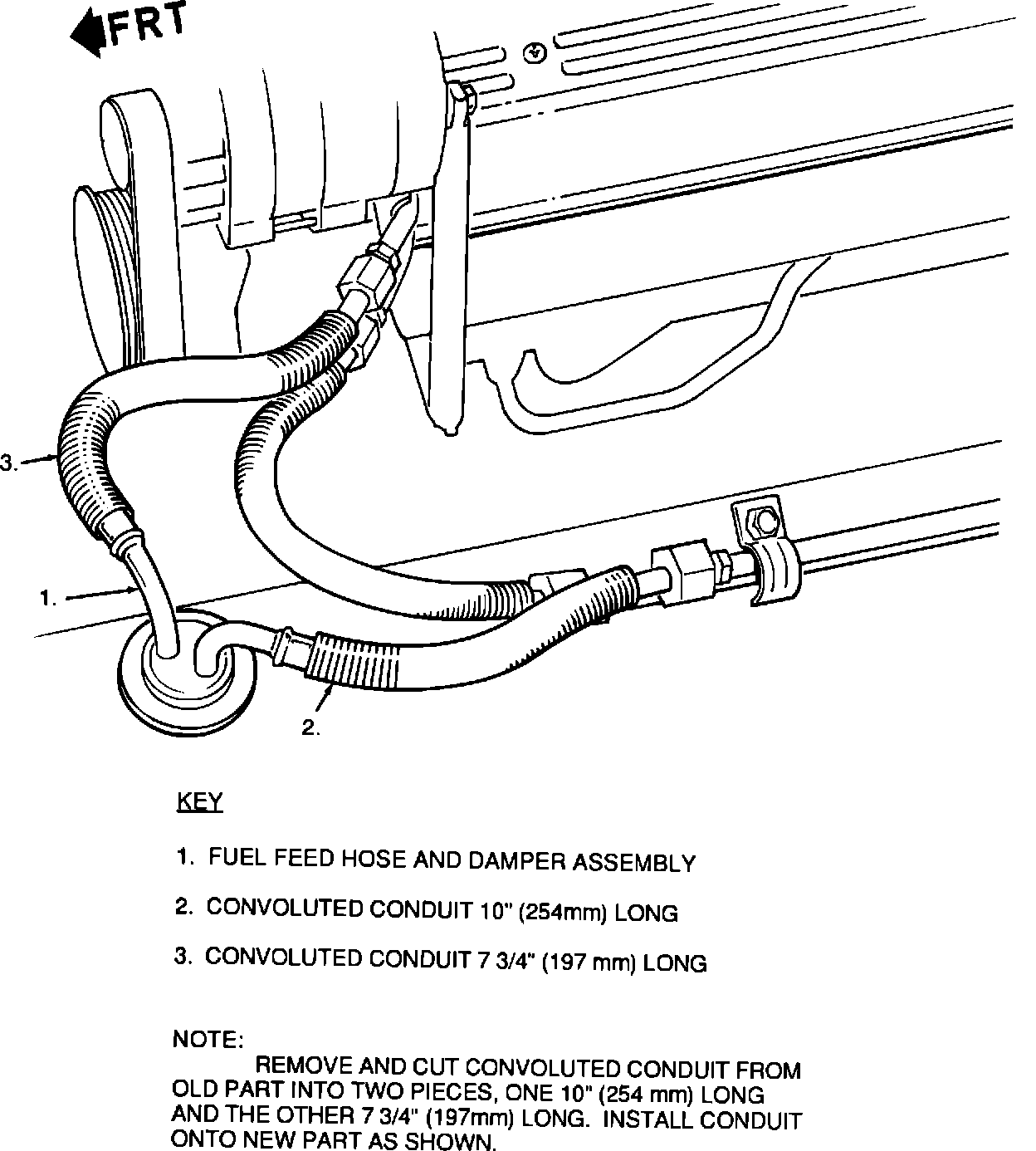

Replace existing underhood fuel feed hose with new hose and damper assembly, P/N 10238701, following applicable Service Manual procedures, Section 6C, Engine Fuel and illustration.

PART AVAILABILITY:
Parts are currently available from GMSPO.

WARRANTY INFORMATION:
Labor Operation: L0220
Use applicable Labor Times.
