Removal/Installation

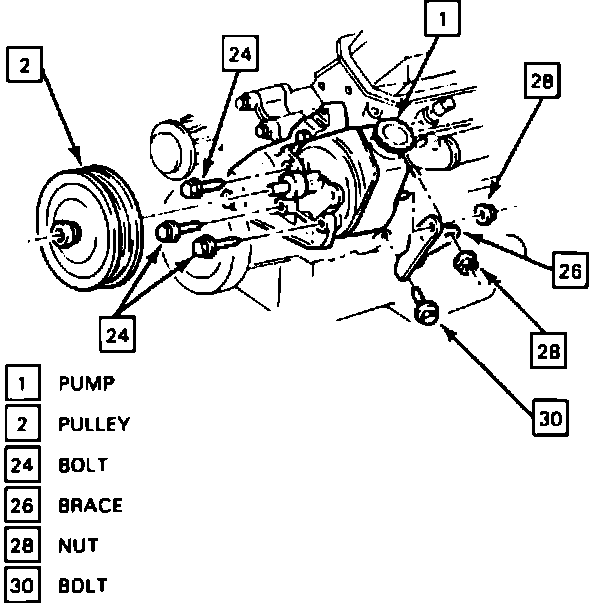

Fig. 10 Power Steering Pump Installation. 2.8L & 3.1L:

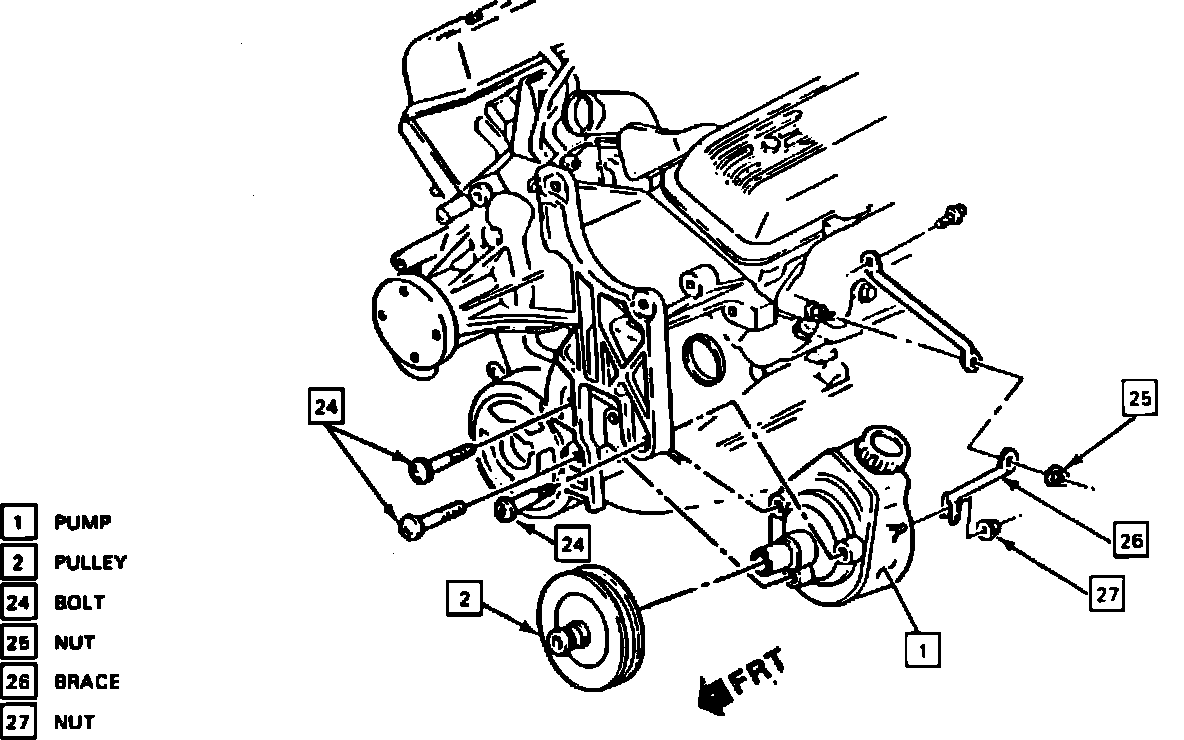

Fig. 11 Power Steering Pump Installation. 5.0L & 5.7L:

1. Remove serpentine drive belt.
2. Remove pulley from power steering pump shaft, Figs. 10 and 11.
3. Disconnect hoses at power steering pump, then plug pump ports and hoses.
4. Remove pump to support bracket attaching bolts and the pump.
5. Reverse procedure to install. Torque attaching bolts to specifications.
