Chevrolet
>>
1992
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

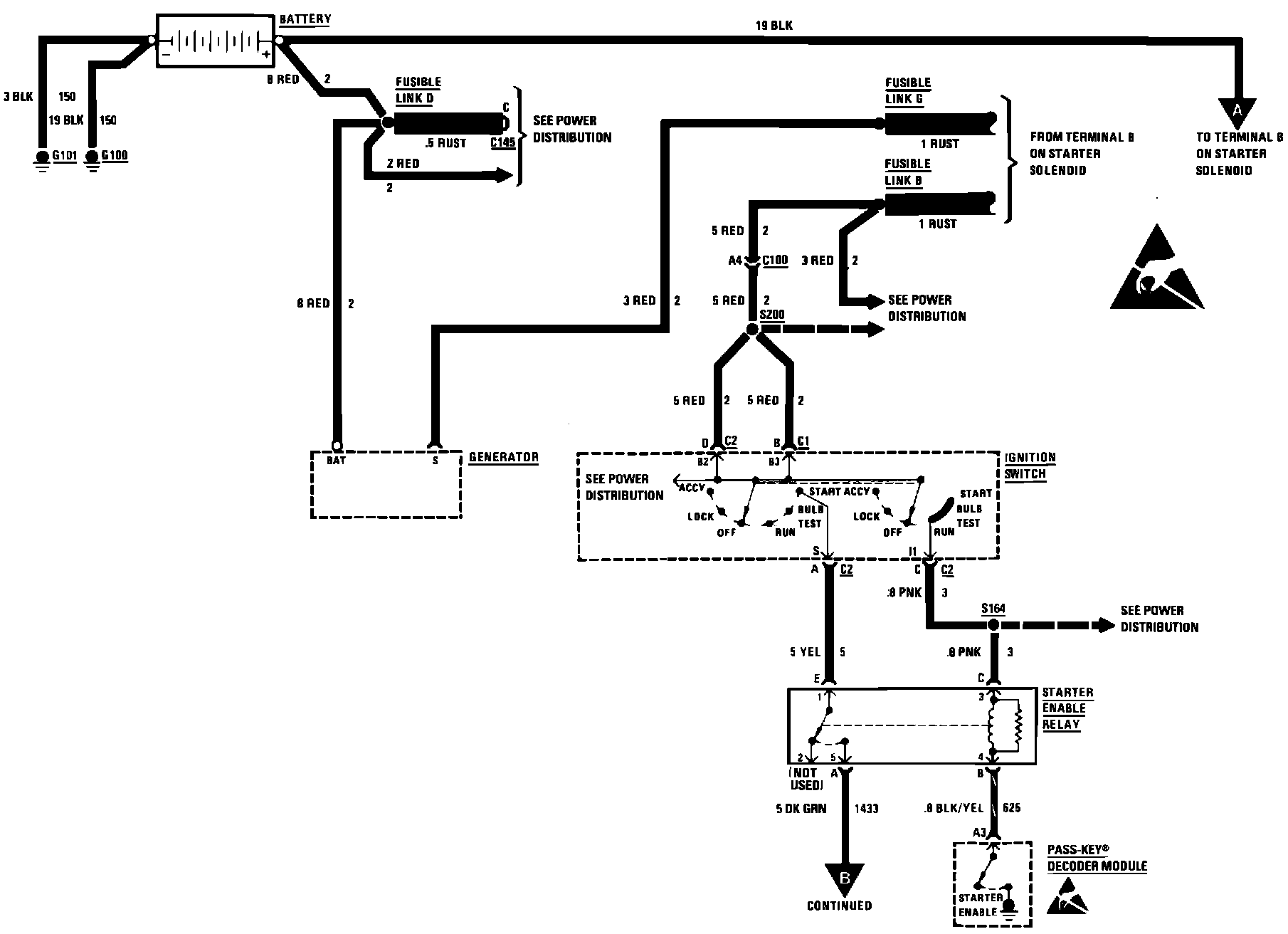

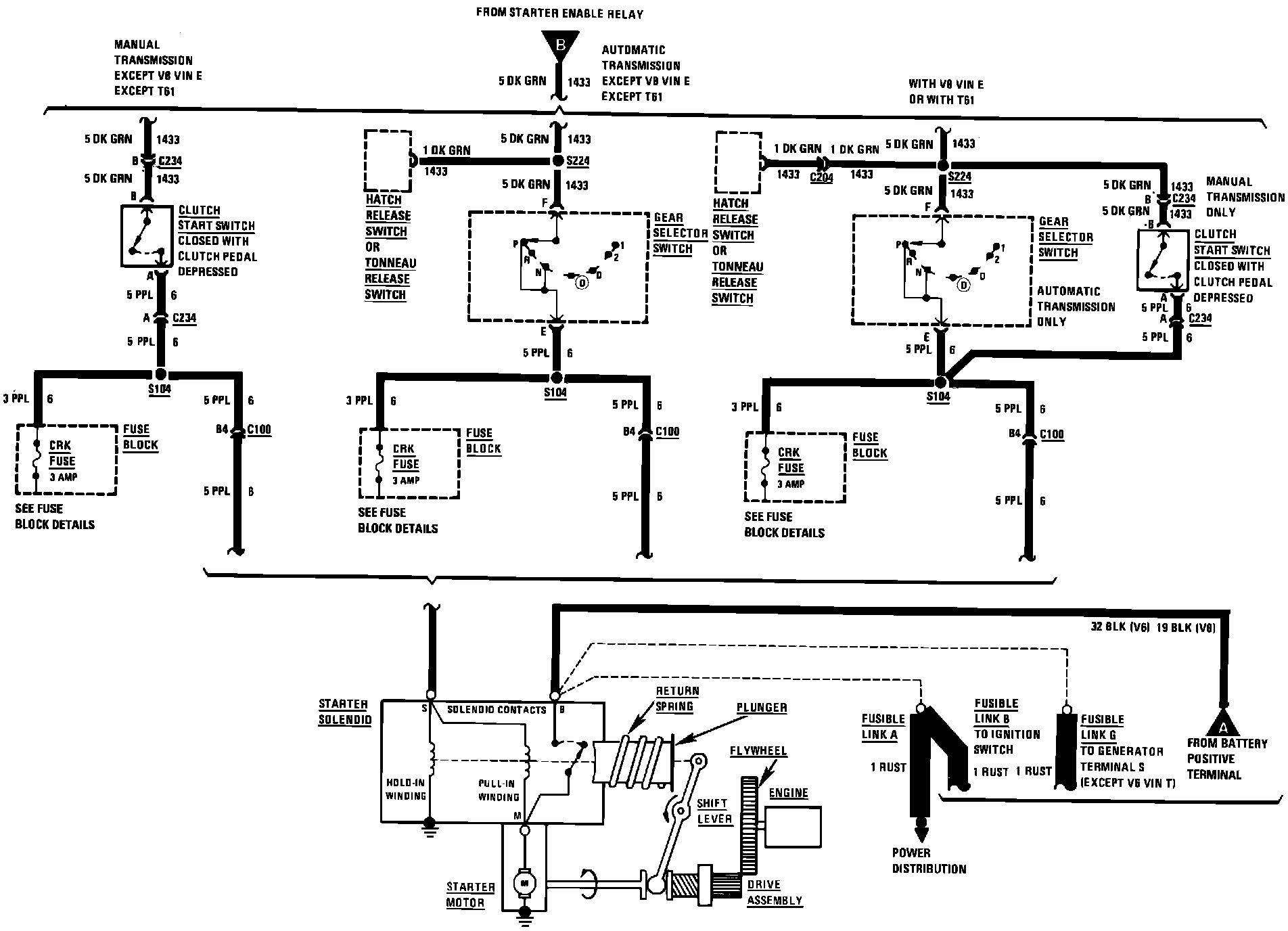

Starting And Charging System:
Starting And Charging System:
