Home >> Chevrolet >> 1992 >> Camaro V8-350 5.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Lid and Tail Fuse

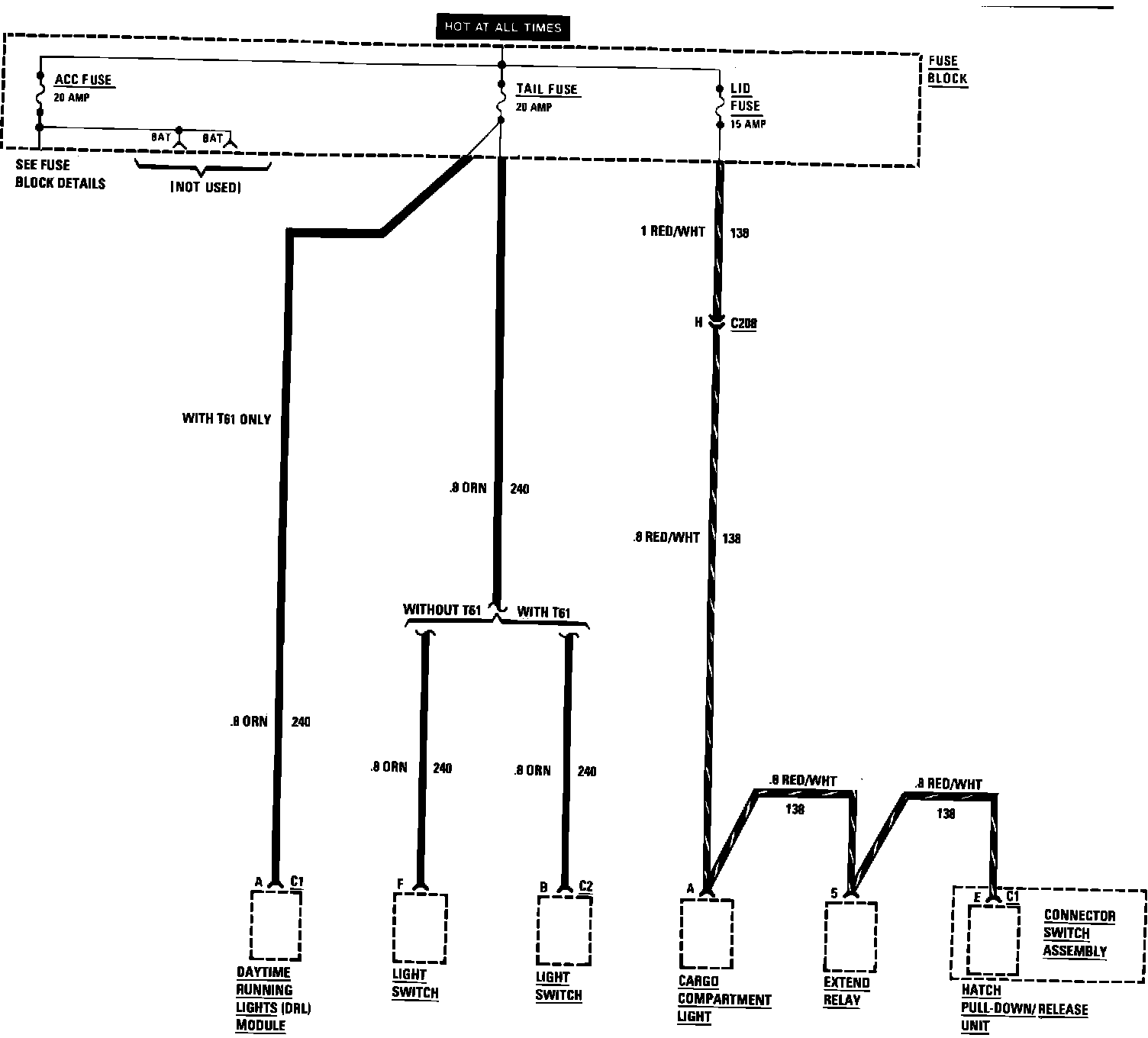

Lid and Tail Fuse

Lid Fuse And Tail Fuse:
