Home
>>
Chevrolet
>>
1992
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

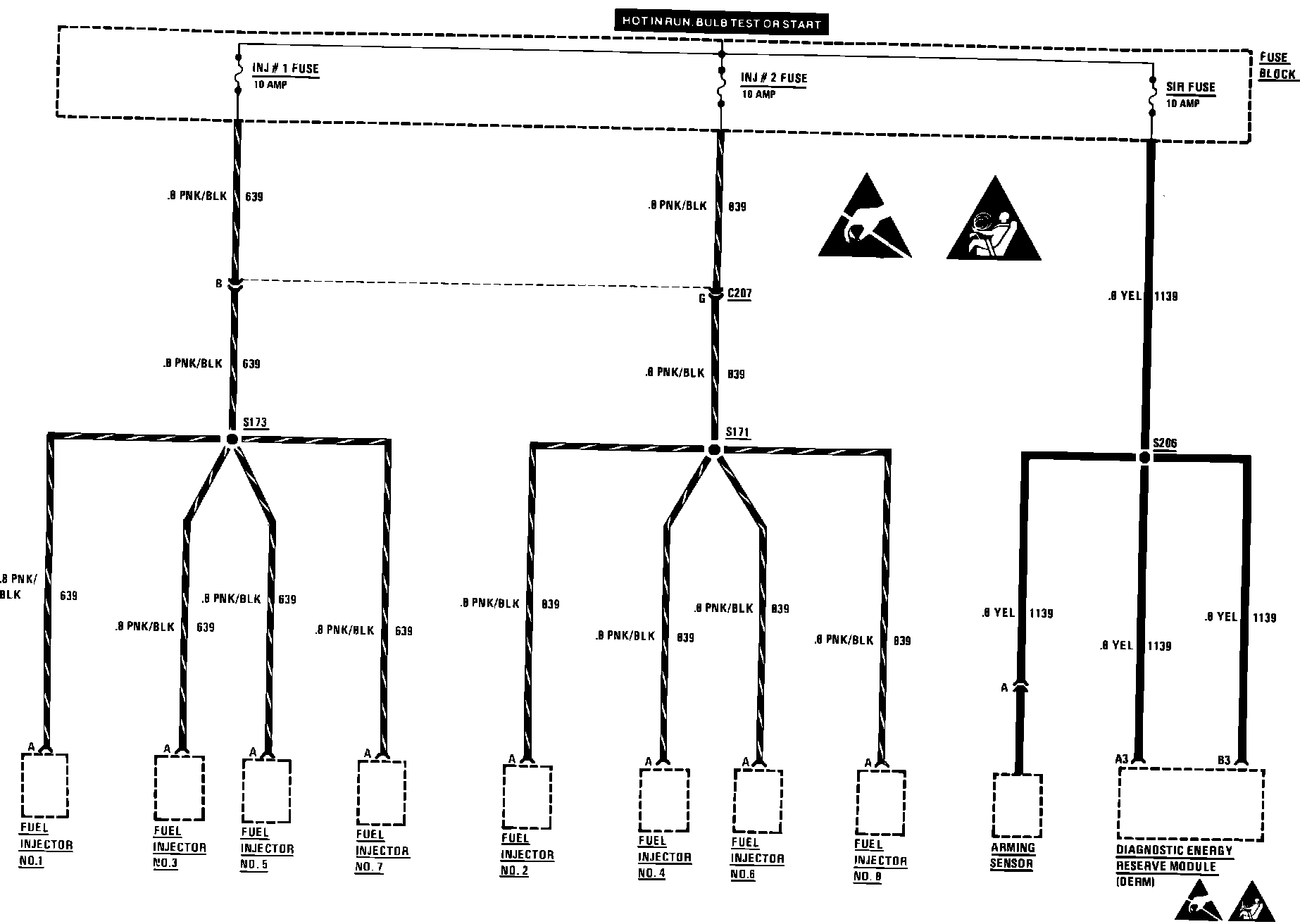

Injector #1, Injector #2, and SIR Fuse
Injector #1, Injector #2, and SIR Fuse
Injector #1, Injector #2, SIR Fuse:
