Chevrolet
>>
1992
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G108, G210, G211
G108, G210, G211

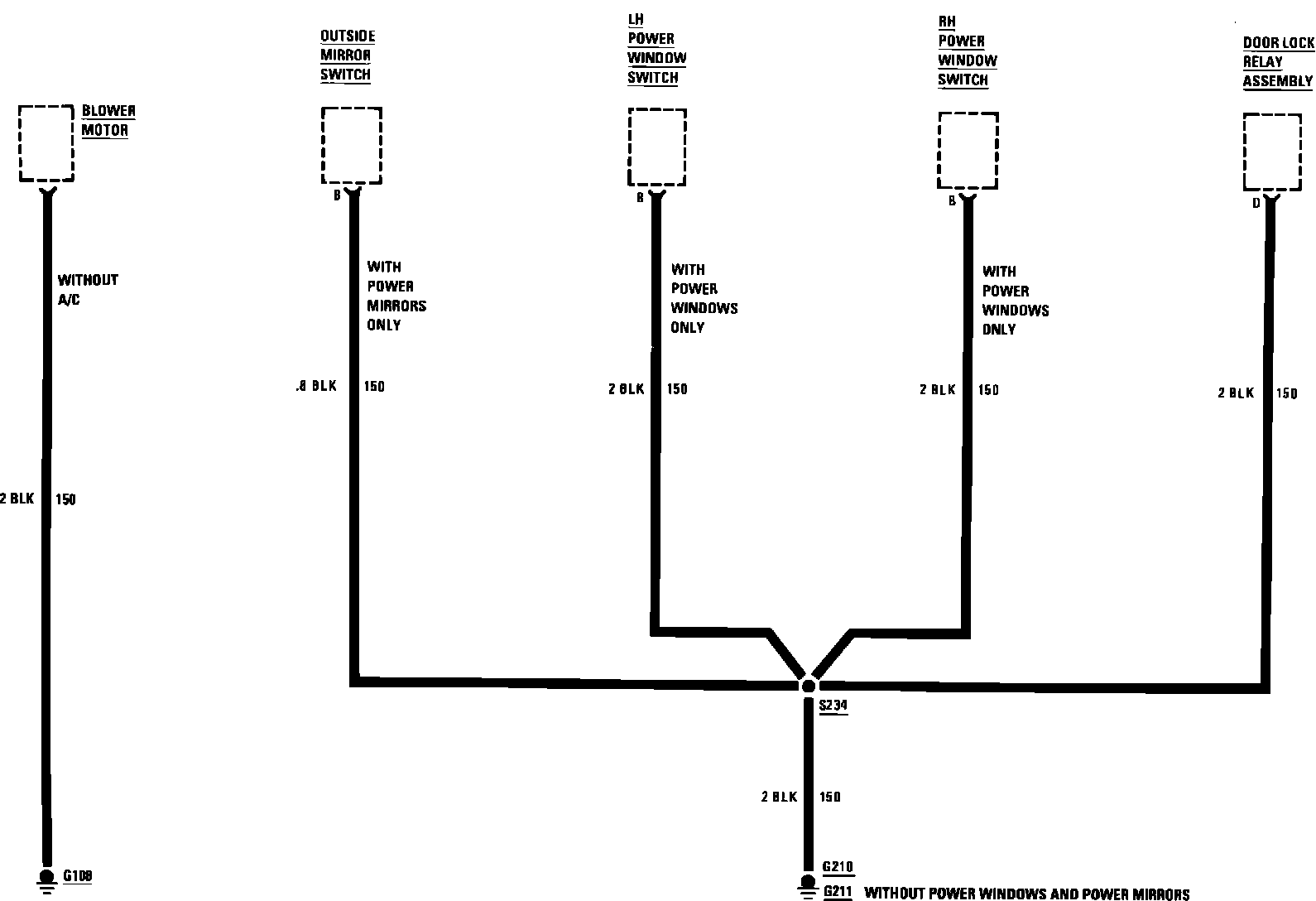

Ground Distribution: G108, G210, G211:
