Brake Shoe & Lining Removal

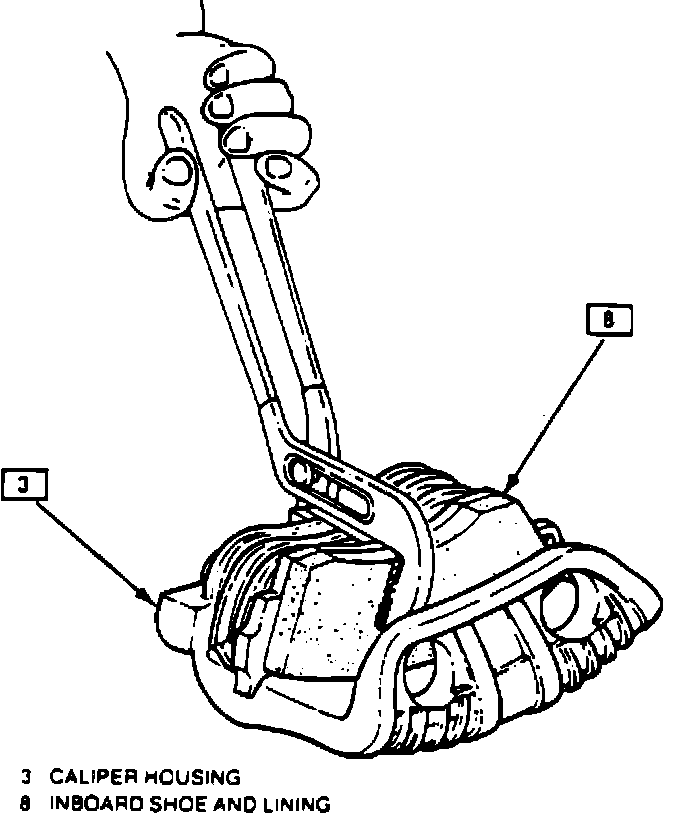

Fig. 2 Bottoming Pistons In Caliper Bore:

1. Remove brake caliper as outlined previously.
2. Position suitable pliers over caliper and center of inboard shoe and lining as shown, Fig. 2, then squeeze pliers to bottom pistons in caliper bores.
3. Remove shoe and lining assemblies.
