Chevrolet
>>
1992
>>
Camaro V8-305 5.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Map Light
>>
Convertible
Convertible

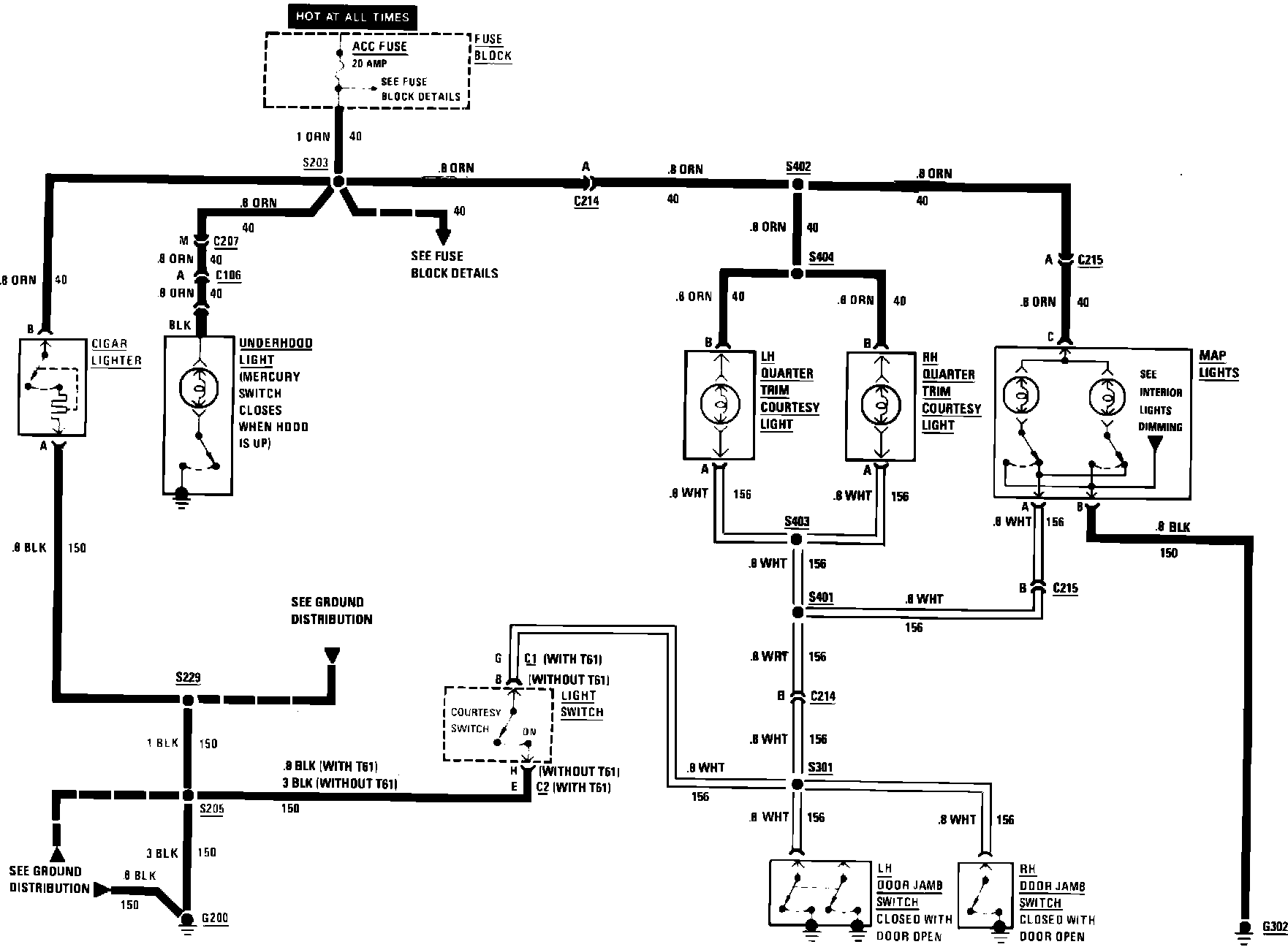

Interior Lights: Cigar Lighter, Courtesy, Underhood And MAP:
