Engine Mount Bracket - Revised Tightening Specifications
Number: 93-84-6ASection: 6A
Date: JAN. 1993
Corporate Bulletin No.: 276107
ASE No.: A1, A8
Subject:
PART USAGE REVISION/BOLT SIZE AND FASTENER TIGHTENING SPECIFICATIONS CHANGE ON ENGINE MOUNT BRACKET
Model and Year:
1992-93 BERETTA WITH 2.3L ENGINE ONLY
ENGINE APPLICATIONS:
2.3L (RPO LGO)
ENGINE VIN (Models):
A
SUBJECT:
Part Usage Revision-Bolt Size and Fastener Tightening Specification Change on Engine Mount Bracket (Upper)
VEHICLE APPLICATIONS:
1992-93 Model Year L Car
CONDITION:

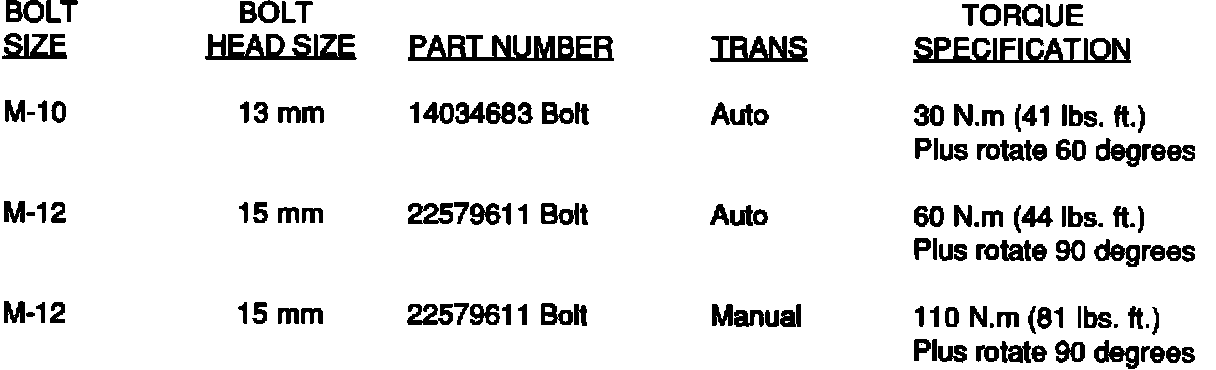

A small number (about 2 percent of total production) of early production 1992 model year 2.3L engines with automatic transaxles were produced with M-10 bolts (13 mm bolt head) to attach the engine mount bracket (upper) to the engine block. When the engine mount bracket bolts are removed, replace them with new bolts (GM P/N 14034683 with Loctite 75, without substitution). The fastener tightening specification is listed (see illustration).
Later production 1992 and all 1993 model year 2.3L engines had M-12 bolts to attach the engine mount bracket (upper) to the block and have different tightening specifications than the M-10 bolt. When the engine mount bracket (upper) bolts are removed, replace them with new bolts (bolt GM P/N 22579611, without substitution). Tighten bolts to the specified N-m (lbs.ft.) then rotate the bolt the specified degrees with Torque Angle Meter J-36660.
Parts are expected to be available on February 8, 1993.
