Pictorial Views

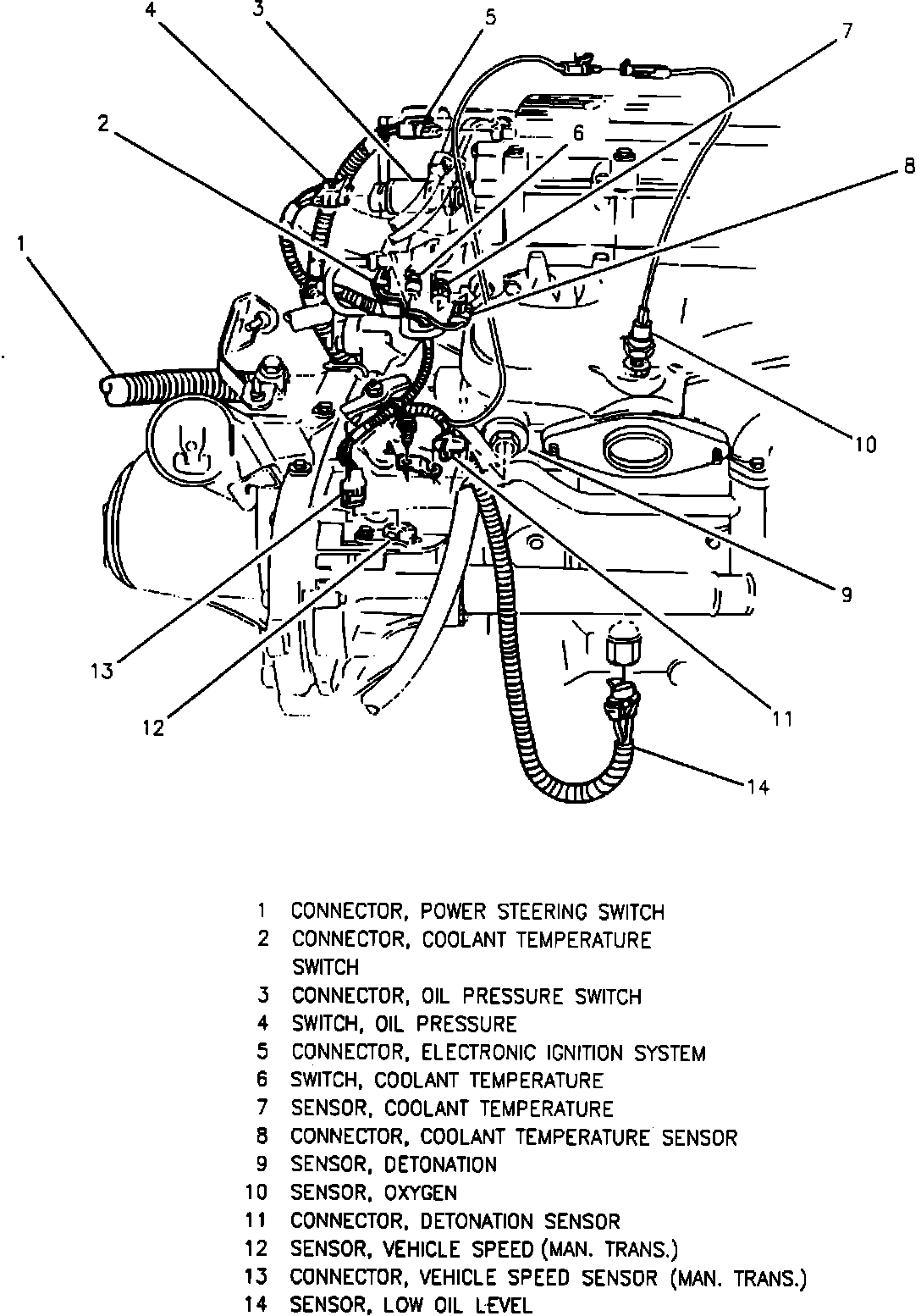

Component/Connector Pictorial:

1 = POWER STEERING SWITCH CONNECTOR
2 = COOLANT TEMPERATURE CONNECTOR SWITCH
3 = OIL PRESSURE SWITCH CONNECTOR
4 = OIL PRESSURE SWITCH
5 = ELECTRONIC IGNITION SYSTEM CONNECTOR
6 = COOLANT TEMPERATURE SWITCH
7 = COOLANT TEMPERATURE SENSOR
8 = COOLANT TEMPERATURE SENSOR CONNECTOR
9 = DETONATION SENSOR
10 = OXYGEN SENSOR
11 = DETONATION SENSOR CONNECTOR
12 = VSS (M/T)
13 = VSS CONNECTOR (M/T)
14 = LOW OIL LEVEL SENSOR

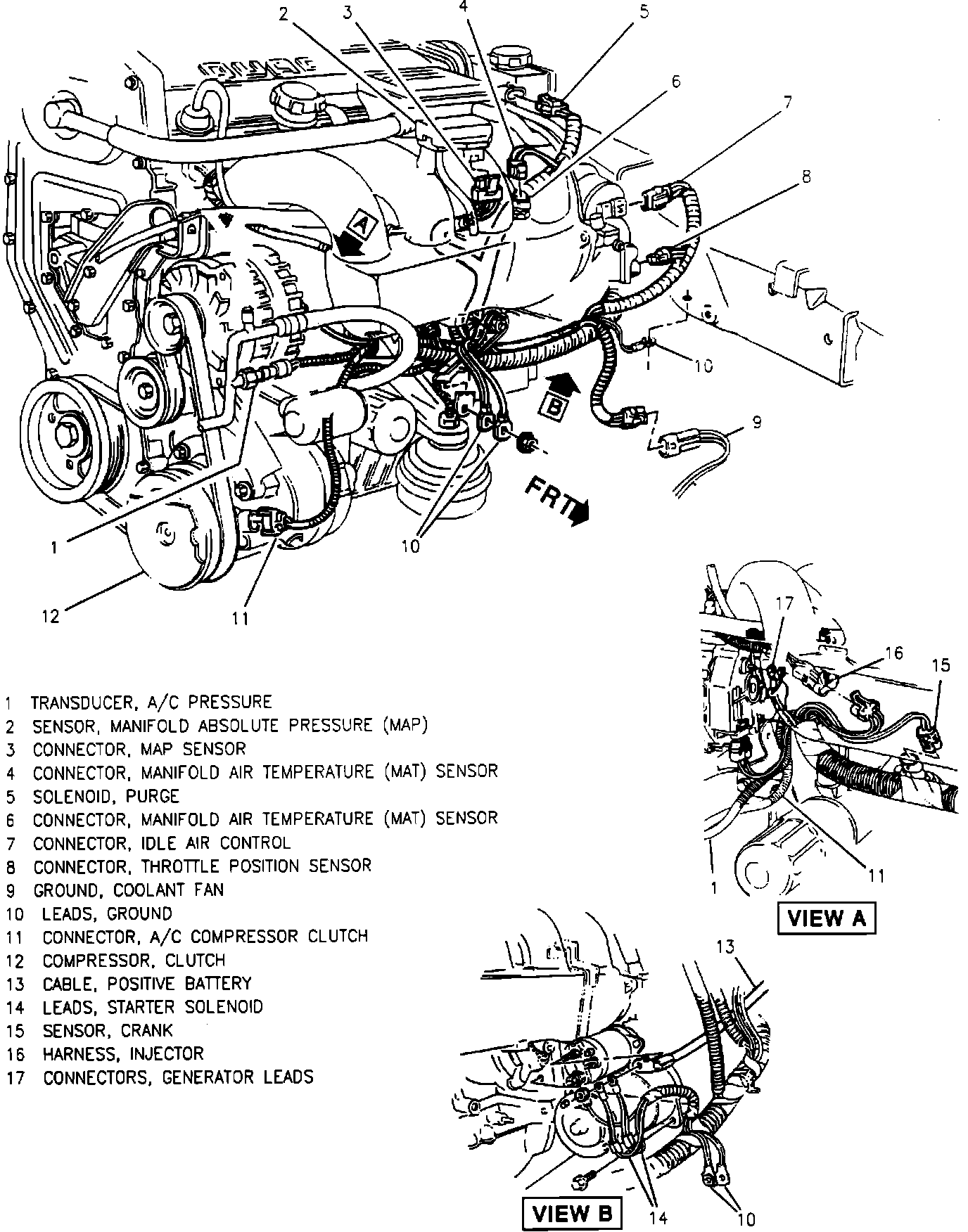

Component/Connector Pictorial:

1 = A/C PRESSURE TRANSDUCER
2 = MAP SENSOR
3 = MAP SENSOR CONNECTOR
4 = MAT SENSOR CONNECTOR
5 = PURGE SOLENOID
6 = MAT SENSOR CONNECTOR
7 = IAC CONNECTOR
8 = TPS CONNECTOR
9 = COOLANT FAN GROUND
10 = GROUND LEADS
11 = A/C COMPRESSOR CLUTCH CONNECTOR
12 = COMPRESSOR CLUTCH
13 = POSITIVE BATTERY CABLE
14 = STARTER SOLENOID LEADS
15 = CRANK SENSOR
16 = INJECTOR HARNESS
17 = GENERATOR LEAD CONNECTORS
