Chart 3 Wipers Run In Low Speed Only
Chart 3 Wipers Run In Low Speed Only

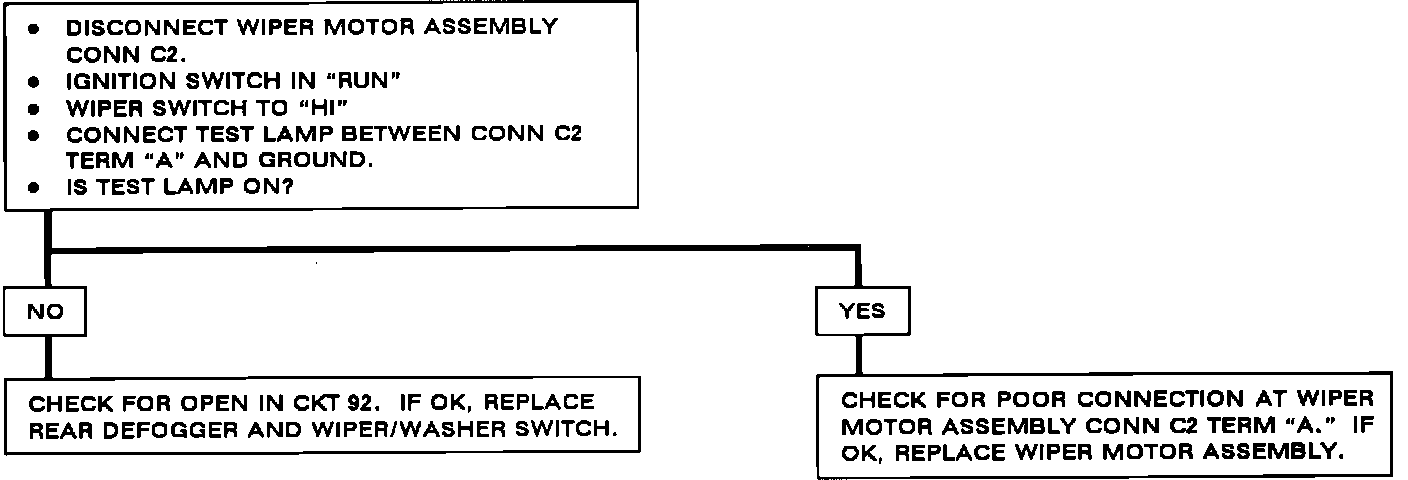

Chart #3 - Wipers Run At Low Speed Only Or Wipers Cycle In And Out Of "PARK" In "HI" (High Speed Inoperative):
