Interior - Rattle From Instrument Panel/Radio

9215chevy02

Number: 92-69-8C

Section: 8C

Date: DEC. 1991

Corporate Bulletin No.: 138309

ASE No.: B1


Subject: RATTLE FROM INSTRUMENT PANEL AND/OR RADIO


Model and Year: 1991-92 CORSICA AND BERETTA


Condition: Some 1991 and 1992 L-cars built prior to VIN Number 1G1LT53T7NY112481 may experience a rattle condition originating from the radio area.

Cause: The hard plastic locating mounting retainer may not fit tight enough to prevent movement. A revised rubber mounting retainer is now being used in production and may be used in previous models to correct this condition. Also, when the radio is removed, the rubber mounting retainer may stay in the I/P hole. It is necessary to remove the rubber mounting bullet from the I/P boss and re-install it on the radio stud before re-installing the radio.

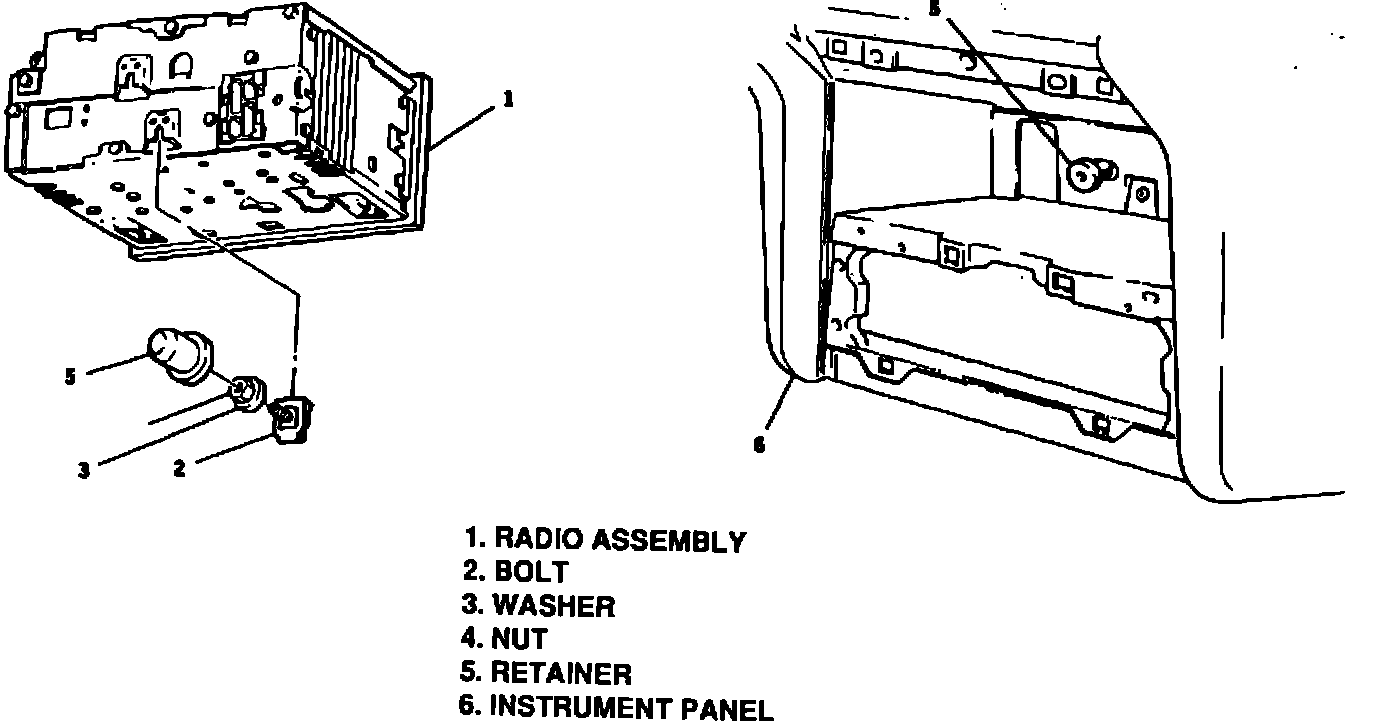

Correction: Remove radio as described in the proper Corsica Beretta Service Manual and replace the mounting stud, retainer, and nut with the following revised parts.

Part Name Part Number

Nut 11514252
Washer 11501869
Retainer 22580775
Bolt 15614826

Parts are currently available from GMSPO.

Labor Operation Number: T1798

Labor Time: .2 Hour

Trouble Code: 92
