Torque Converter Clutch & Shift Indicator
Torque Converter Clutch & Shift Indicator

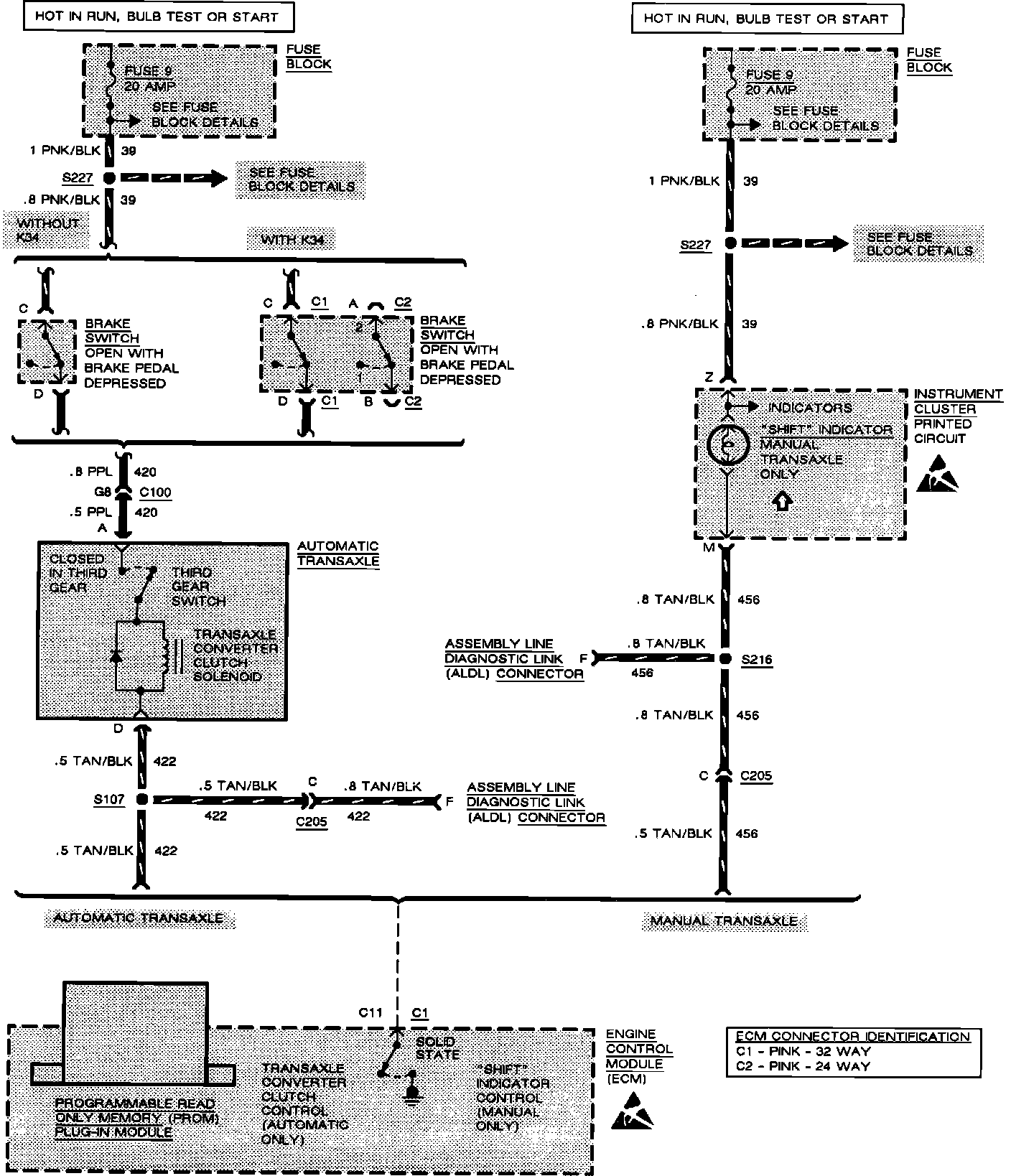

MFI: Transaxle Converter Clutch/"SHIFT" Indicator:
