Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
Multiple Junction Connector: Diagrams

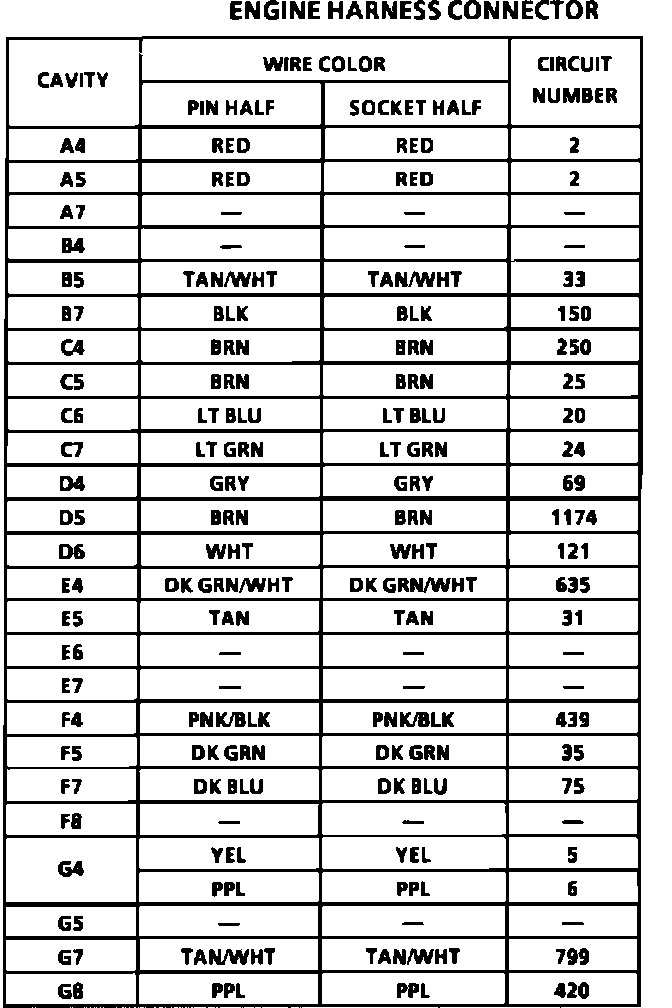

Engine Harness Connector:

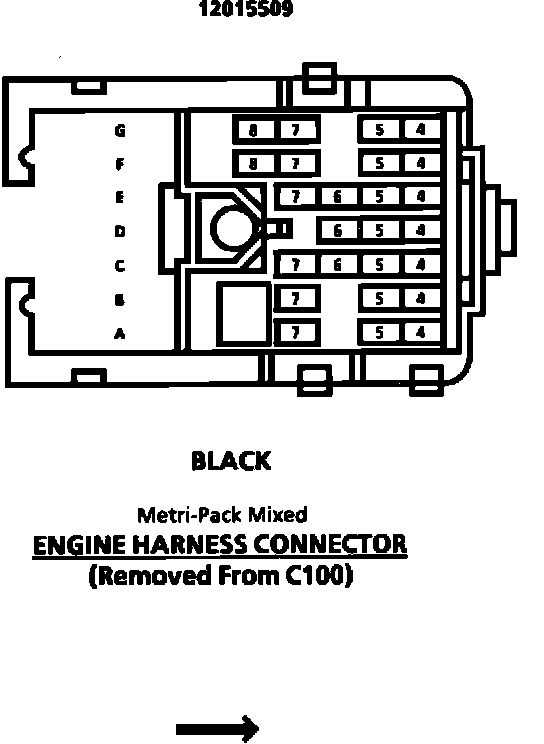

Engine Harness Connector:
