Home >> Chevrolet >> 1992 >> Beretta L4-134 2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G106 and G107

G106 and G107

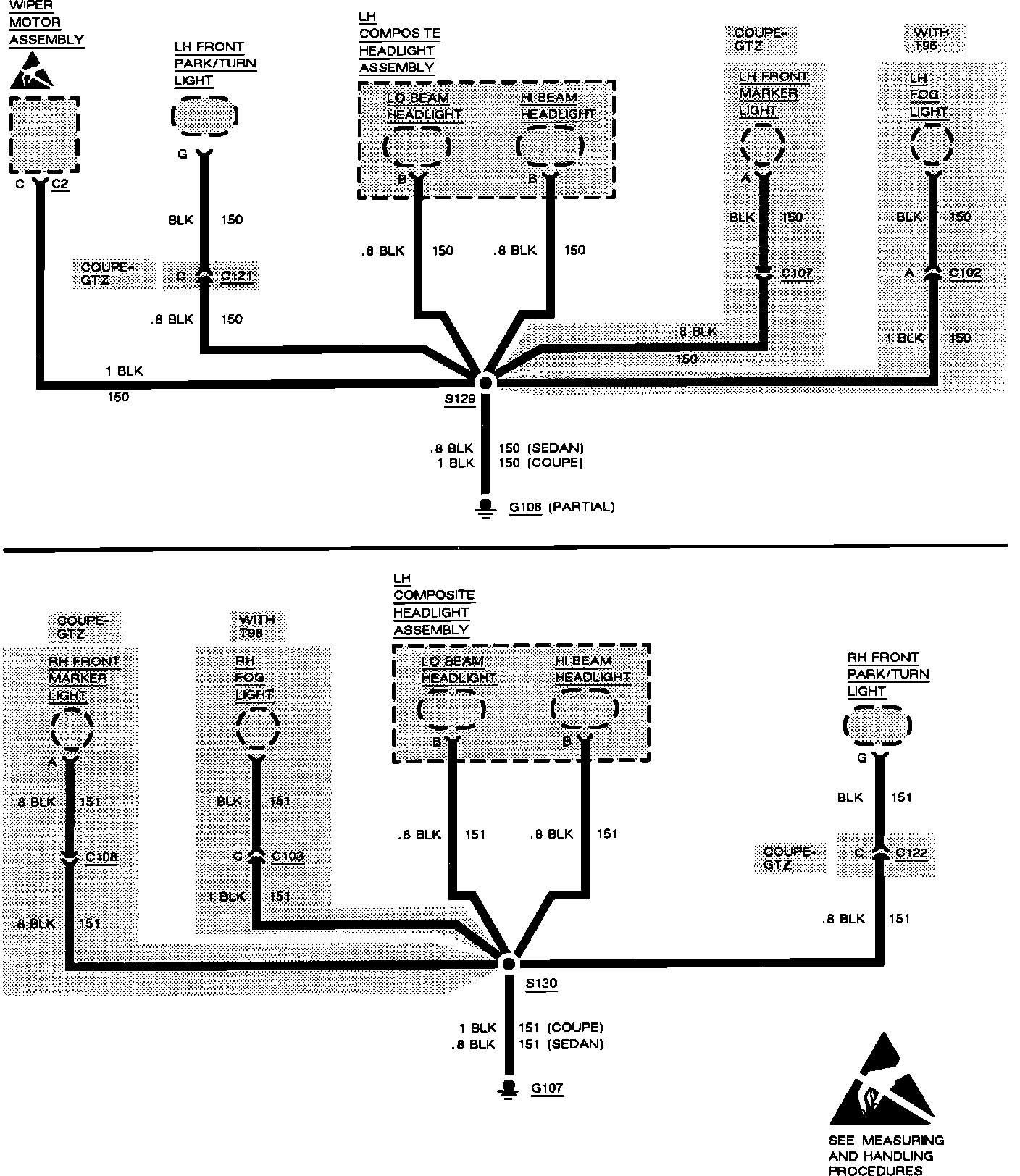

Ground Distribution: G106 And G107:
