Home >> Chevrolet >> 1992 >> Beretta L4-134 2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G101 and G106

G101 and G106

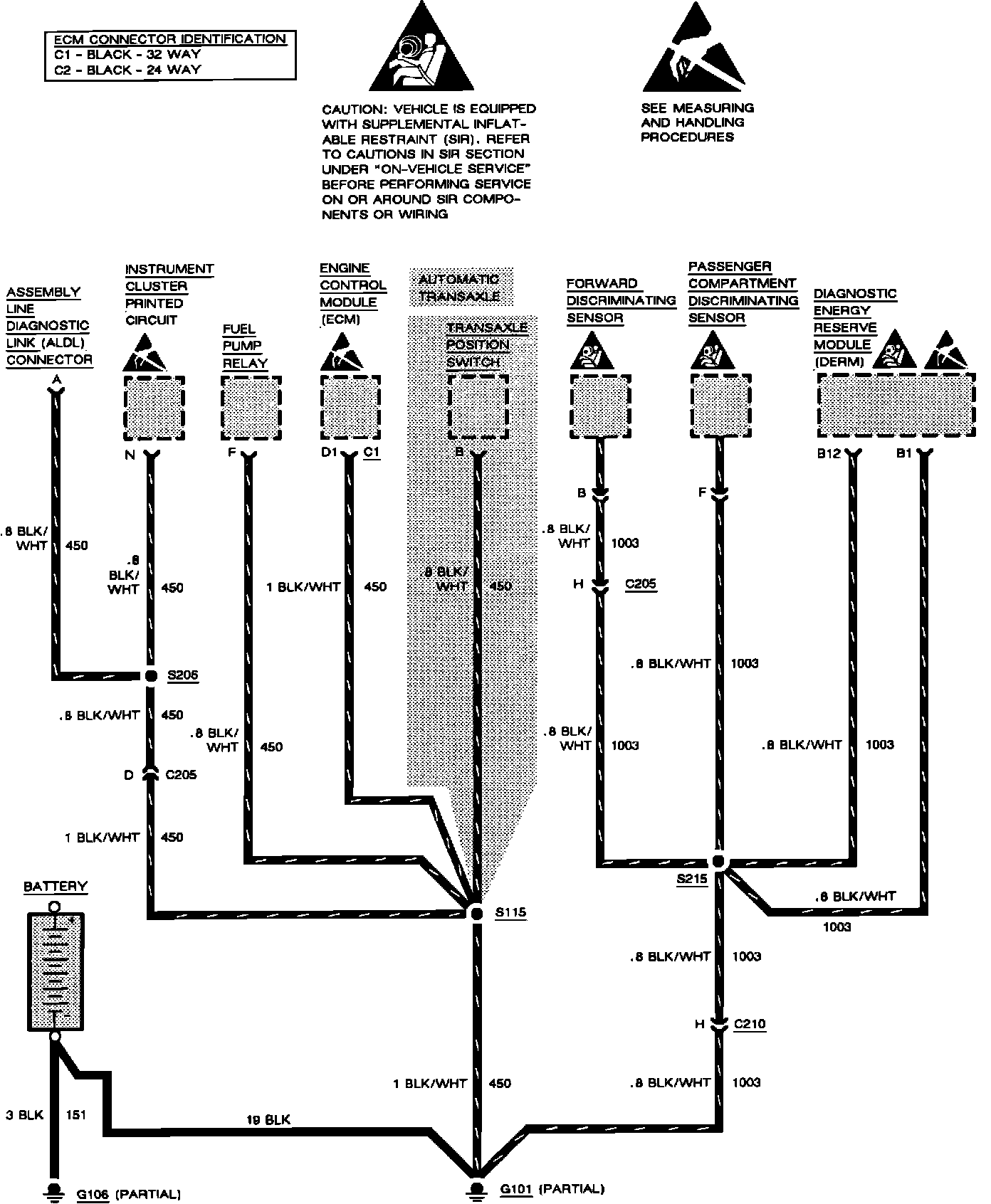

Ground Distribution: G101 And G106:
