Chevrolet
>>
1992
>>
Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Maintenance
>>
Fuses and Circuit Breakers
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

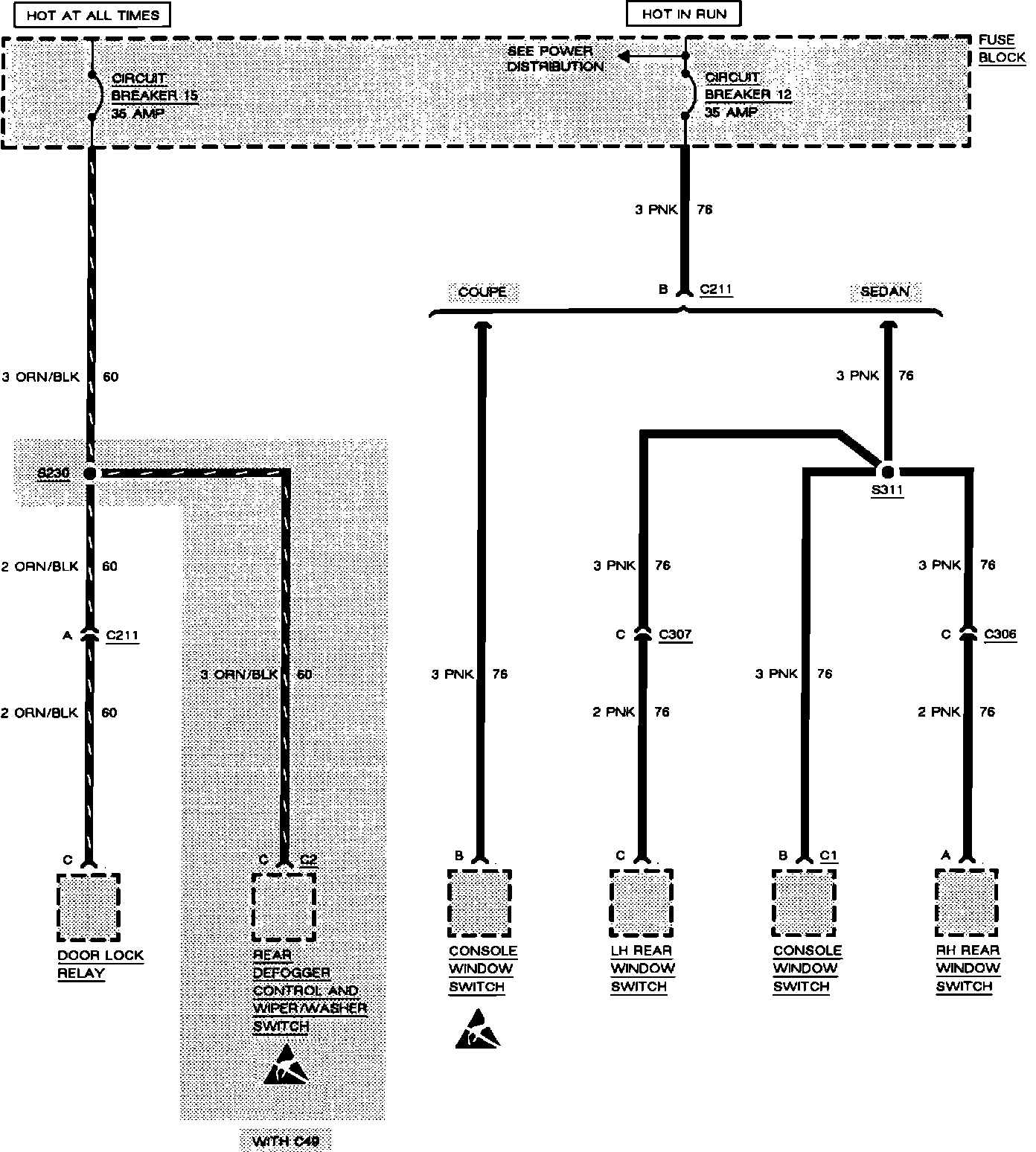

Fuse Block Details: Circuit Breakers 12 And 15:
