Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Temperature Gauge
>>
Testing and Inspection
>>
Symptom Diagnostic Charts - Base Cluster
Symptom Diagnostic Charts - Base Cluster

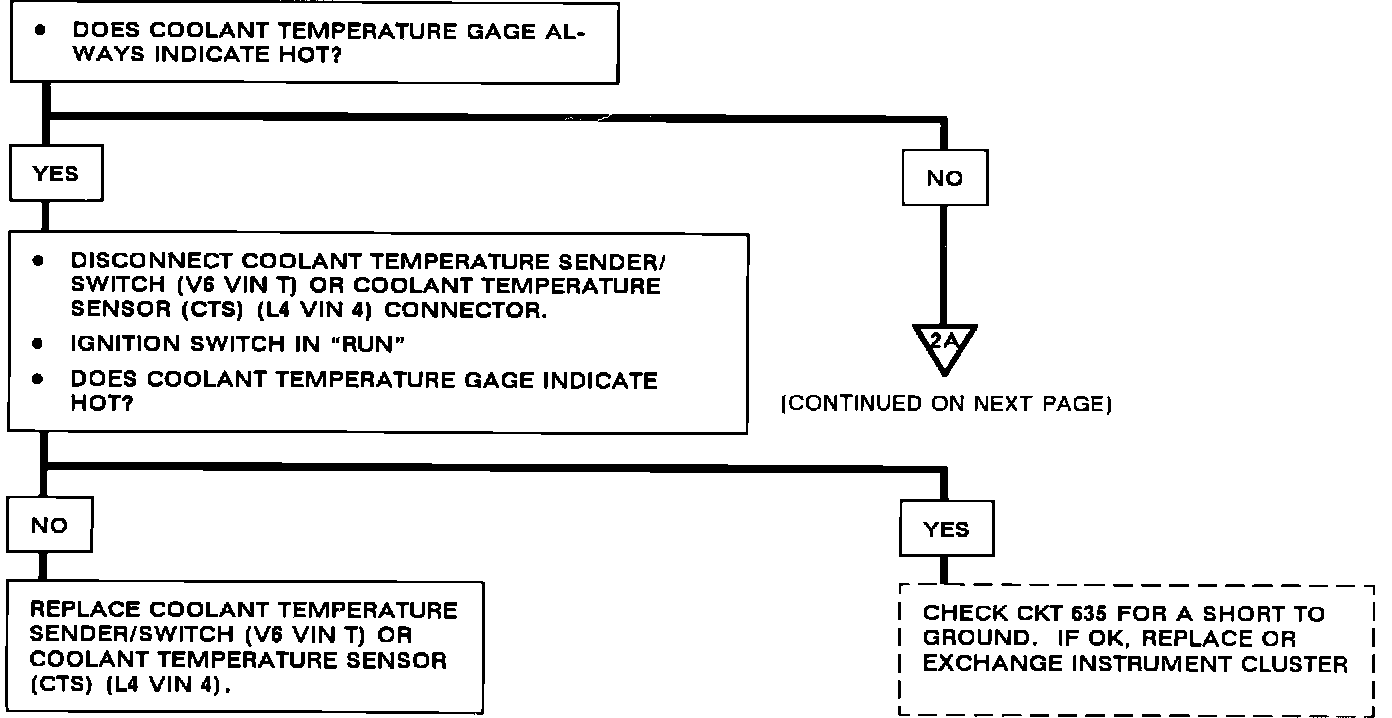

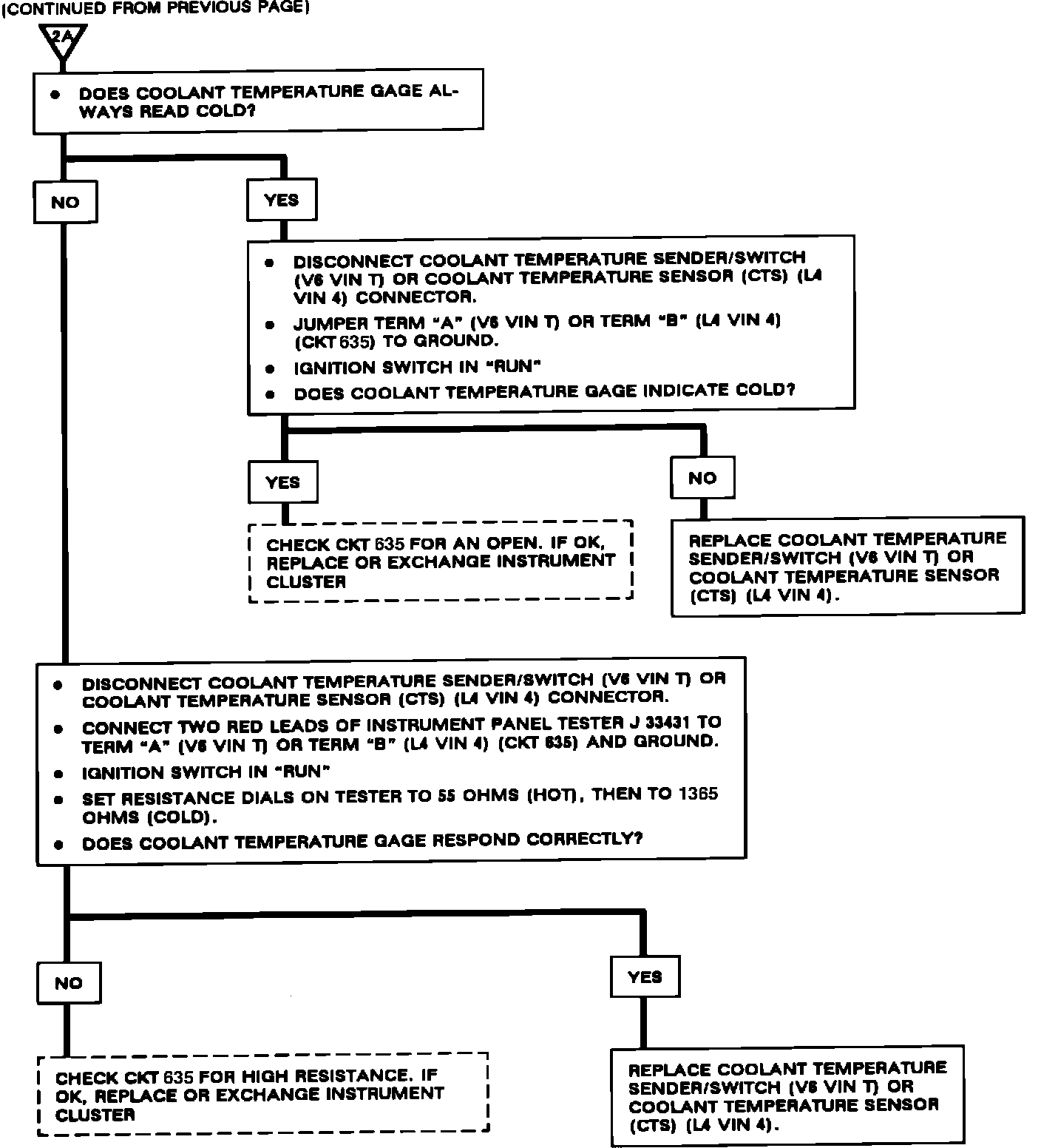

Chart #2 - Coolant Temperature Gage Does Not Operate Properly:
Chart #2 - Coolant Temperature Gage Does Not Operate Properly:
