Home >> Chevrolet >> 1992 >> Beretta L4-134 2.2L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 34

DTC 34

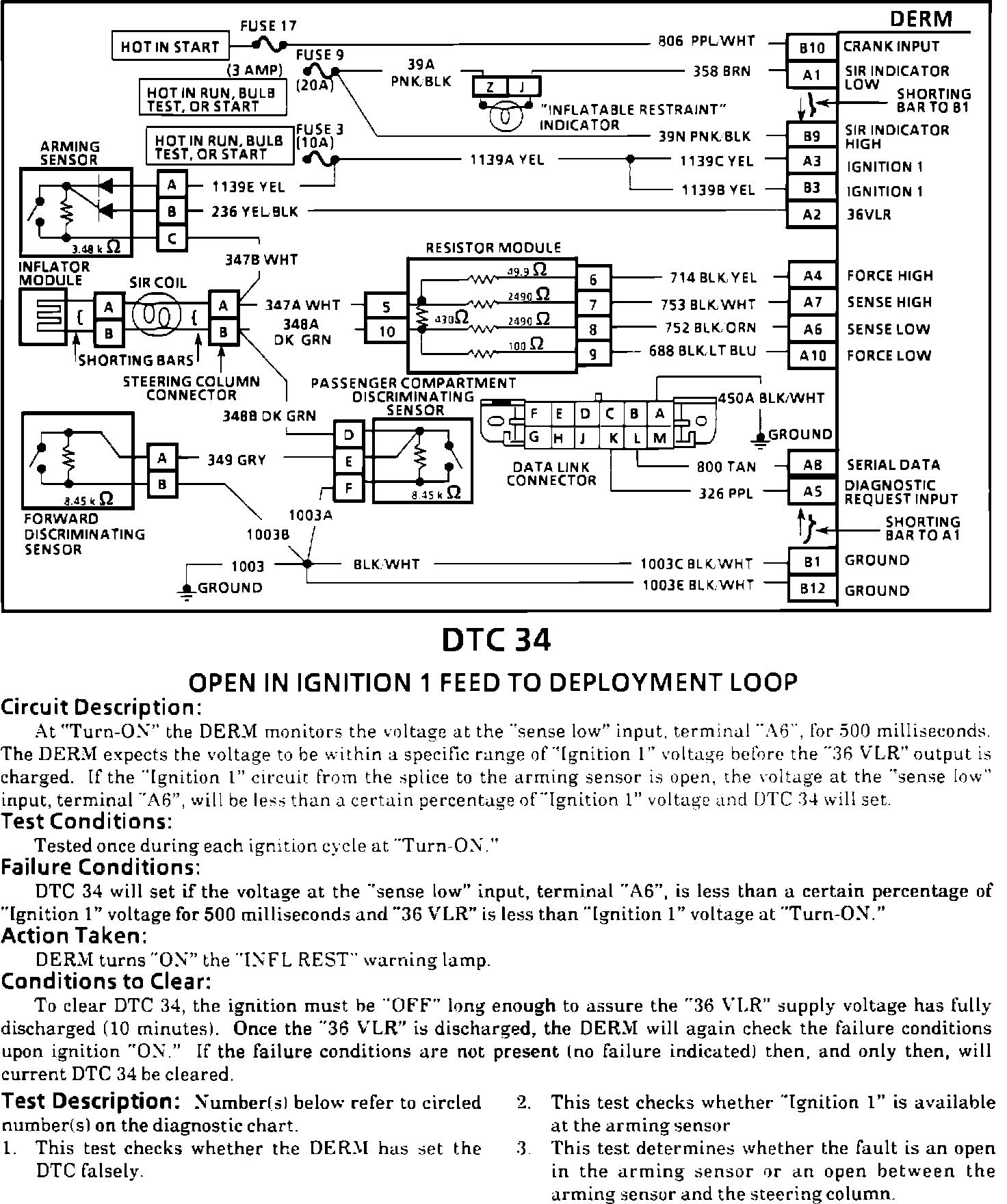

Fig. 95 Code 34, Open In Ignition 1 Feed To Deployment Loop (Part 1 of 2):

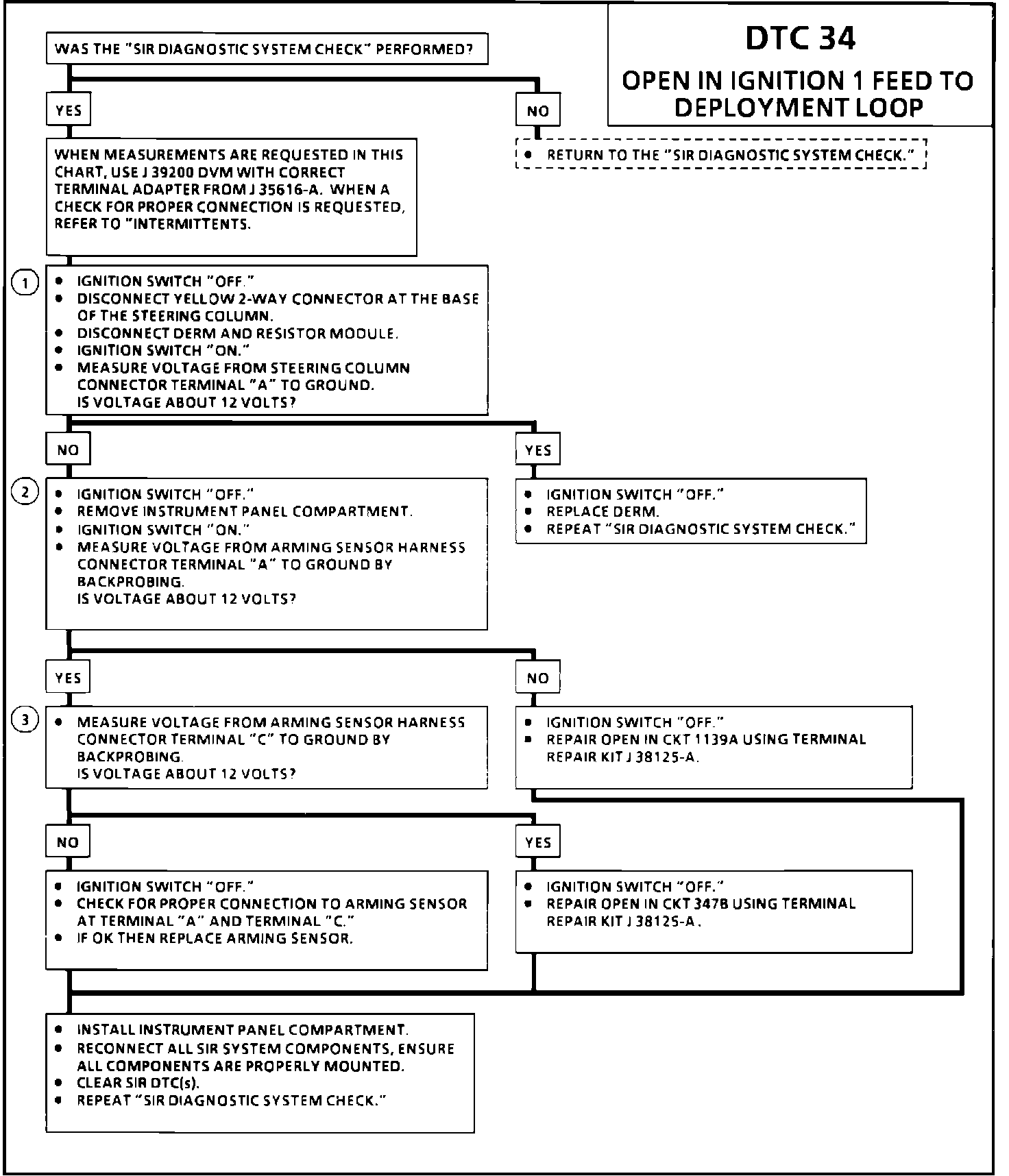

Fig. 95 Code 34, Open In Ignition 1 Feed To Deployment Loop (Part 2 of 2):
